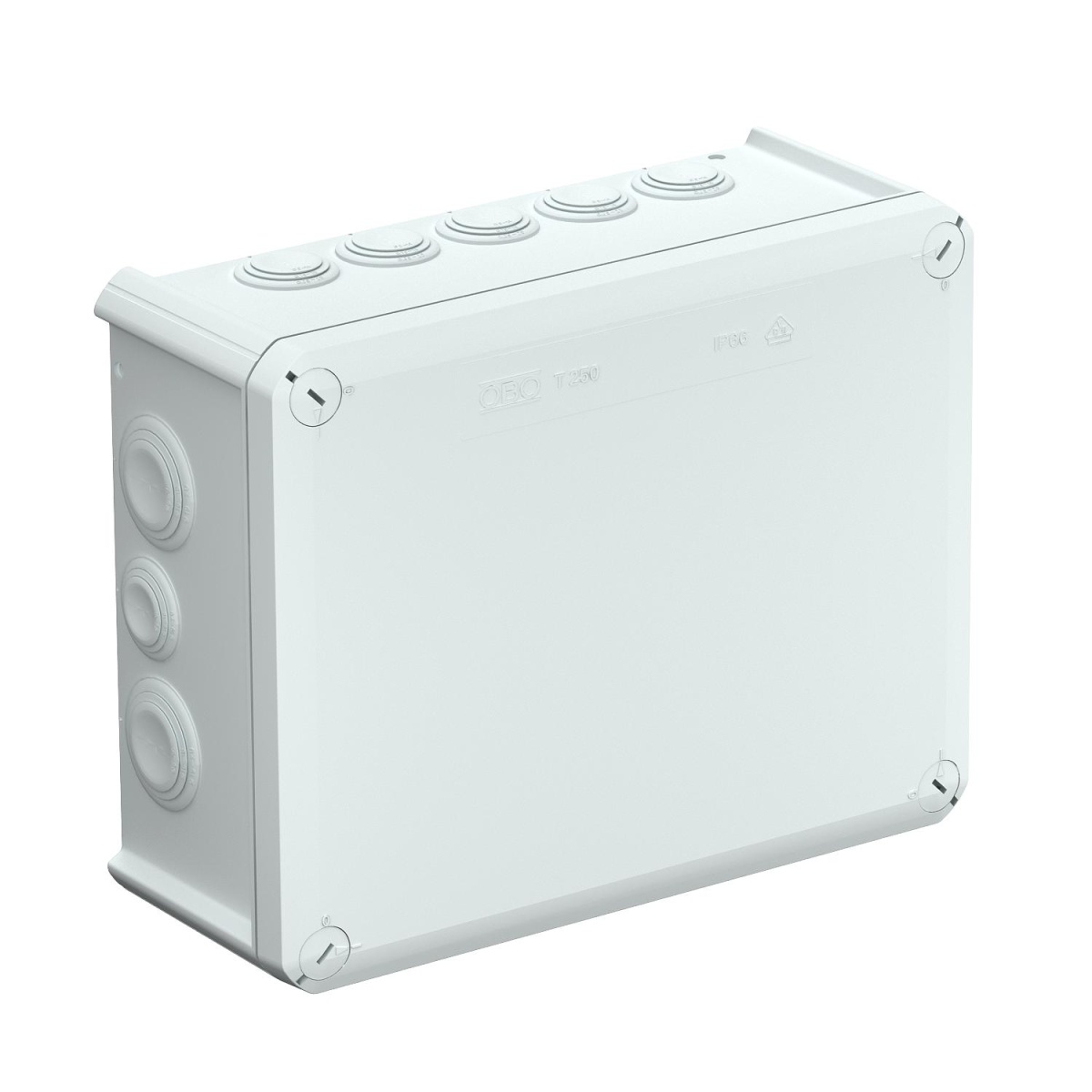

Caixa de derivação com entradas 240x190x95 Polipropileno, reforçado a fibra de vidro cinzento claro RAL 7035
Boxes
Caixa de derivação com entradas 240x190x95 Polipropileno, reforçado a fibra de vidro cinzento claro RAL 7035
Manufacturer Ref:
2007109
Nortécnica Ref:
252007109
EAN:
4012195246817
Description
Technical Information
Attributes
Mounting method
Wall-/ceiling mounting
Colour
Grey
Largura
190
Model
-
Halogen free
Yes
Depth
95
Shape
Rectangular
Surface protection
-
Diâmetro
-
Equipped with
None
With strain relief
-
Rated insulation voltage Ui
500
Número de polos
-
Comprimento
240
Sealable
Yes
Circuit integrity
None
Working temperature
-5
60
Material
Plastic
Number of clamp positions per pole
-
Number of inlets
16
RAL-number similar
7035
Explosion-tested version
No
Cover attachment
Screwed
Max. conductor cross section
-
With screening
No
Weatherproof
No
Degree of protection IP
IP66
For tube diameter
-
Inlet from the rear
Yes
For Ex-zone gas
None
Connectable
Yes
Type of housing feed-through
Trimmable step membrane
For Ex-zone dust
None
Cover model
-
Castable
-
Casting compound included
-
Transparent cover
No
Degree of protection NEMA
-
Mounting in the soil
-
Mounting under water
-
Outgoing connections with connectors for plug-in building installation
-
Number of cable glands included
-
Brands
OBO
Technical Sheet
