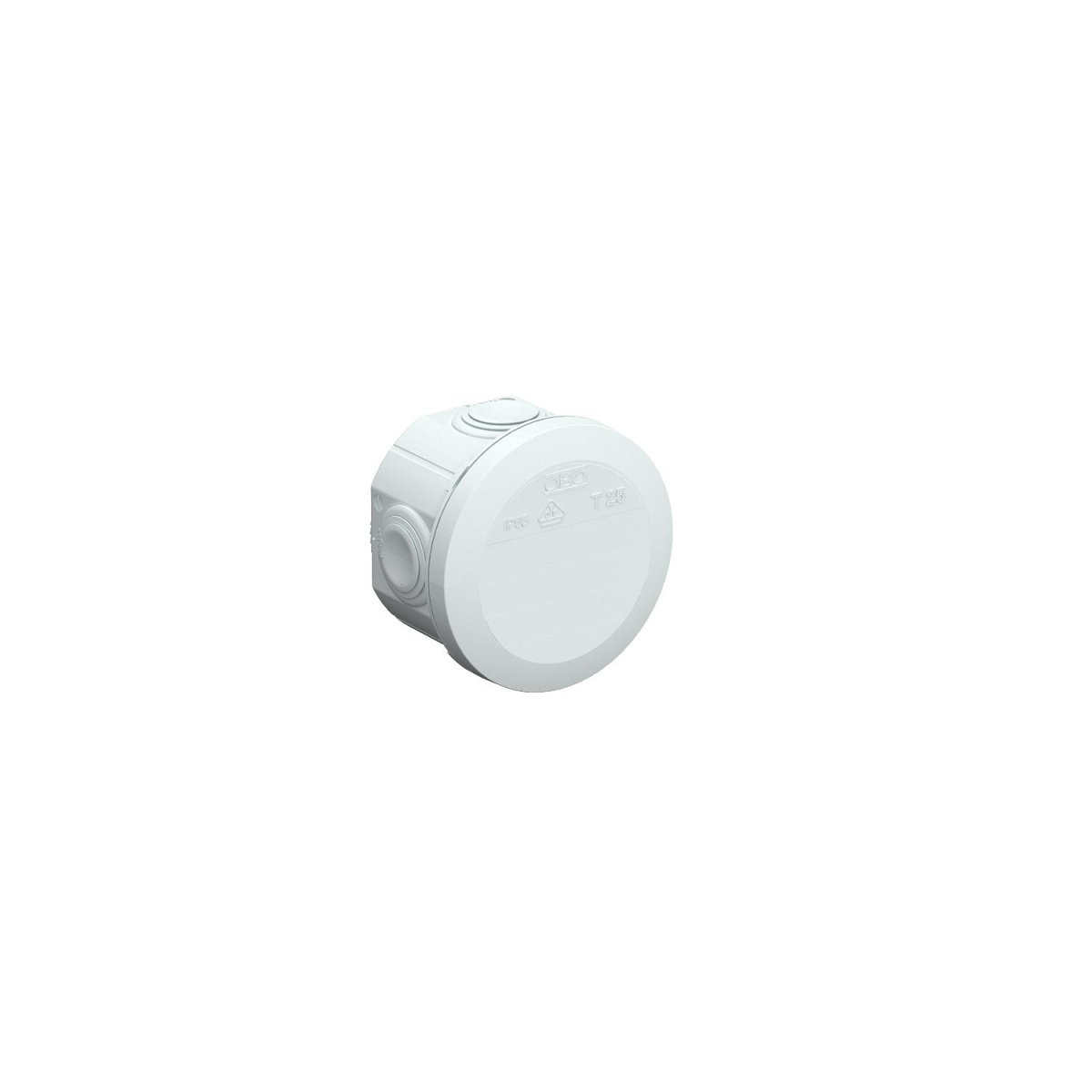

Caixa de derivação com entradas Ø80x51 Polipropileno cinzento claro RAL 7035
Boxes
Caixa de derivação com entradas Ø80x51 Polipropileno cinzento claro RAL 7035
Manufacturer Ref:
2007029
Nortécnica Ref:
252007029
EAN:
4012195246770
Description
Technical Information
Attributes
Mounting method
Wall-/ceiling mounting
Colour
Grey
Largura
80
Model
Junction box
Halogen free
Yes
Depth
51
Shape
Round
Surface protection
-
Diâmetro
80
Equipped with
None
With strain relief
No
Rated insulation voltage Ui
500
Número de polos
-
Comprimento
80
Sealable
No
Circuit integrity
None
Working temperature
-5
60
Material
Plastic
Number of clamp positions per pole
-
Number of inlets
4
RAL-number similar
7035
Explosion-tested version
No
Cover attachment
Snapped on
Max. conductor cross section
-
With screening
No
Weatherproof
No
Degree of protection IP
IP65
For tube diameter
-
Inlet from the rear
Yes
For Ex-zone gas
None
Connectable
Yes
Type of housing feed-through
Trimmable step membrane
For Ex-zone dust
None
Cover model
Blind cover
Castable
-
Casting compound included
No
Transparent cover
No
Degree of protection NEMA
-
Mounting in the soil
No
Mounting under water
No
Outgoing connections with connectors for plug-in building installation
No
Number of cable glands included
0
Brands
OBO
