Caja superficie triple. LC4320A
Boxes

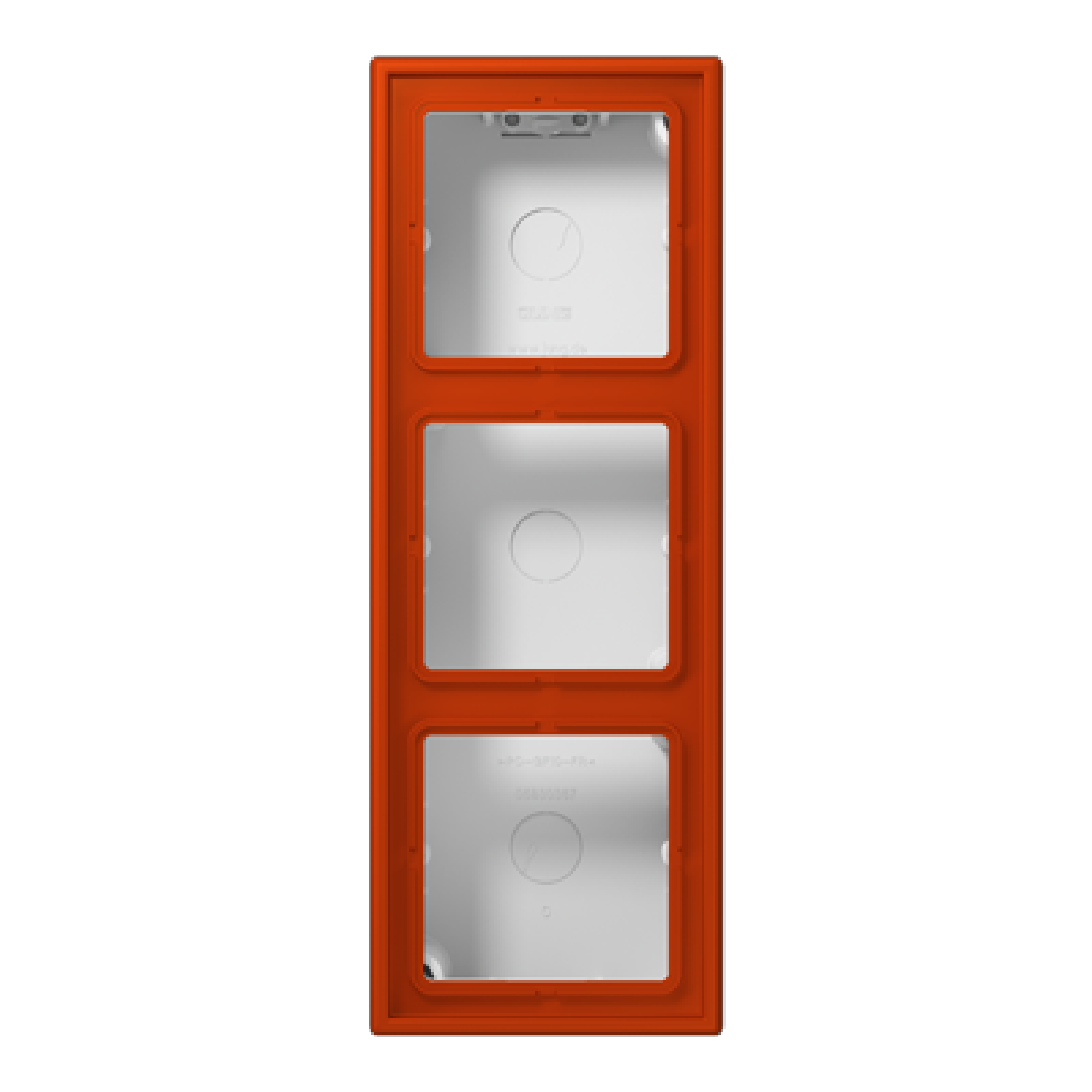

Caja superficie triple. LC4320A
Manufacturer Ref:
LC583A244
Nortécnica Ref:
EAN:
4011377288911
Description
Technical Information
Attributes
Assembly arrangement
Surface mounted box
Colour
Red
Width
81
Halogen free
Yes
Height
223
Depth
47
Shape
Rectangular
Number of units
3
Shock resistant
No
Surface protection
Lacquered
With cable entry
Yes
Diameter
-
Material quality
Duroplast
Material
Plastic
Number of inlets
0
With cover frame
Yes
Mounting direction
Horizontal and vertical
RAL-number similar
-
Degree of protection IP
IP2X
Inlet from the rear
Yes
Transparent
No
Surface finishing
Matt
With screw gland entry
No
With duct entry
Yes
Device width
71
Device height
71
Device depth
47.0
Number of modules module system
-
Suitable for modular domestic switching devices
-
Number of earthing terminals
0
Desktop device
No
Cross-trunking mounting
No
With installation tube entry
No
Suitable for mounting over existing flush-mounted box
No
Compliant with BS 4662
No
Brands
Jung Electro Ibérica S.A.
Technical Sheet
