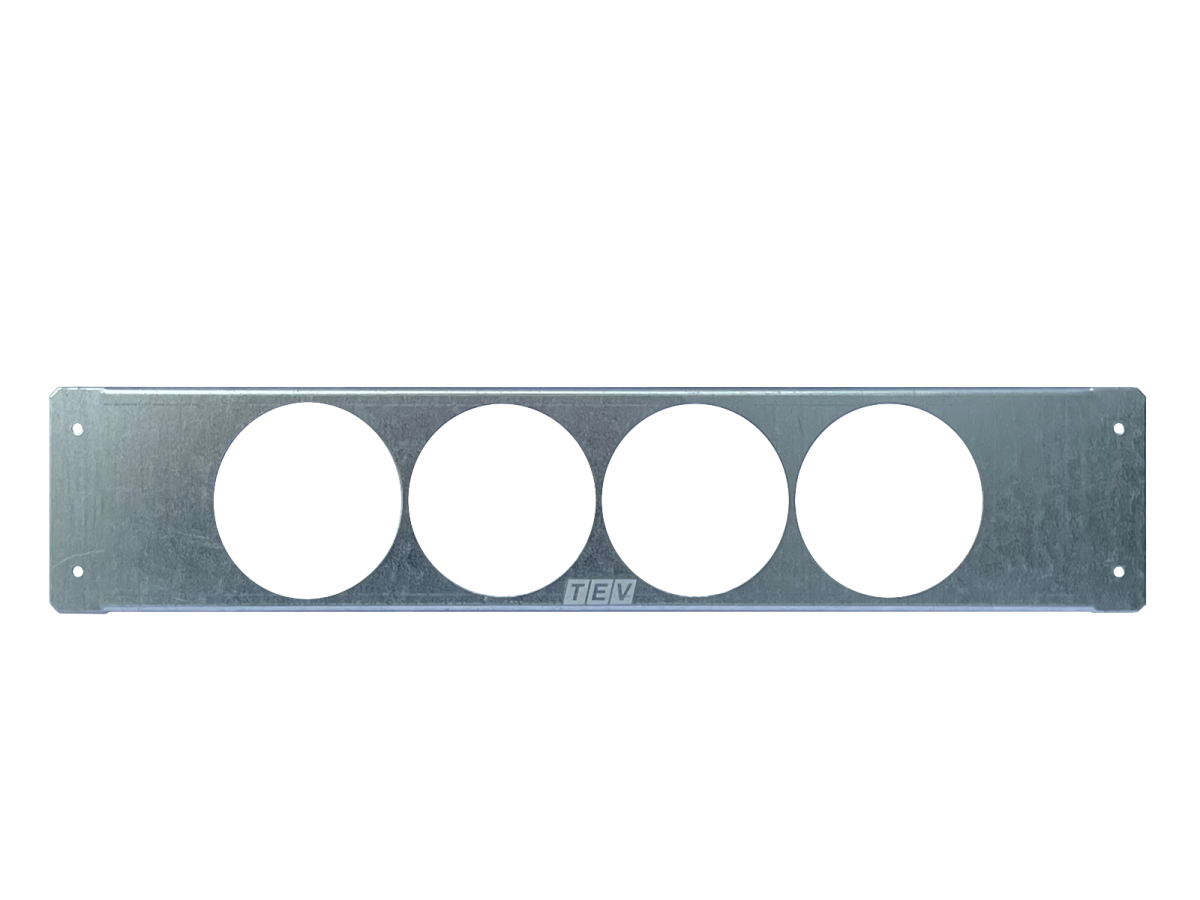

Régua caixas pladur com 4 furos de 68mm de diâmetro
Boxes
Régua caixas pladur com 4 furos de 68mm de diâmetro
Manufacturer Ref:
R4CX
Nortécnica Ref:
420R4CX
EAN:
5607353179800
Description
Technical Information
Attributes
Mounting method
Flush-mounted
Colour
Zinc
Width
79
Model
Other
Halogen free
Yes
Shape
Rectangular
Surface protection
Other
Diameter
68
Equipped with
None
Construction type
Other
Inner depth
12,5
Couplable
No
Length
400
Sealable
No
Circuit integrity
None
Material
Other
Number of inlets
1
Mounting switching equipment
Screwing
Cover attachment
Other
For number of device inserts
4
Luminaire hook mounting
No
Max. conductor cross section
2,5
With screening
No
EF005060
-
With screws
No
Airtight
No
Depth
-
-
Suitable for cable diameter
1.5
2.5
Degree of protection IP
Other
For tube diameter
20 mm
Inlet from the rear
Yes
Pipe locking
No
Special application
None
Clamp position fixed
No
Number of poles of the clamp
0
Nozzle
Other
Provided with revolving ring
No
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
Pipe locking optional
No
Number of included spouts
0
Cover model
None
Housing feed-through by break-out opening
No
Transparent cover
No
Degree of protection NEMA
Other
Suitable for wallboard thickness
10
10
Brands
TEV2 Dist Mat Electrico Lda

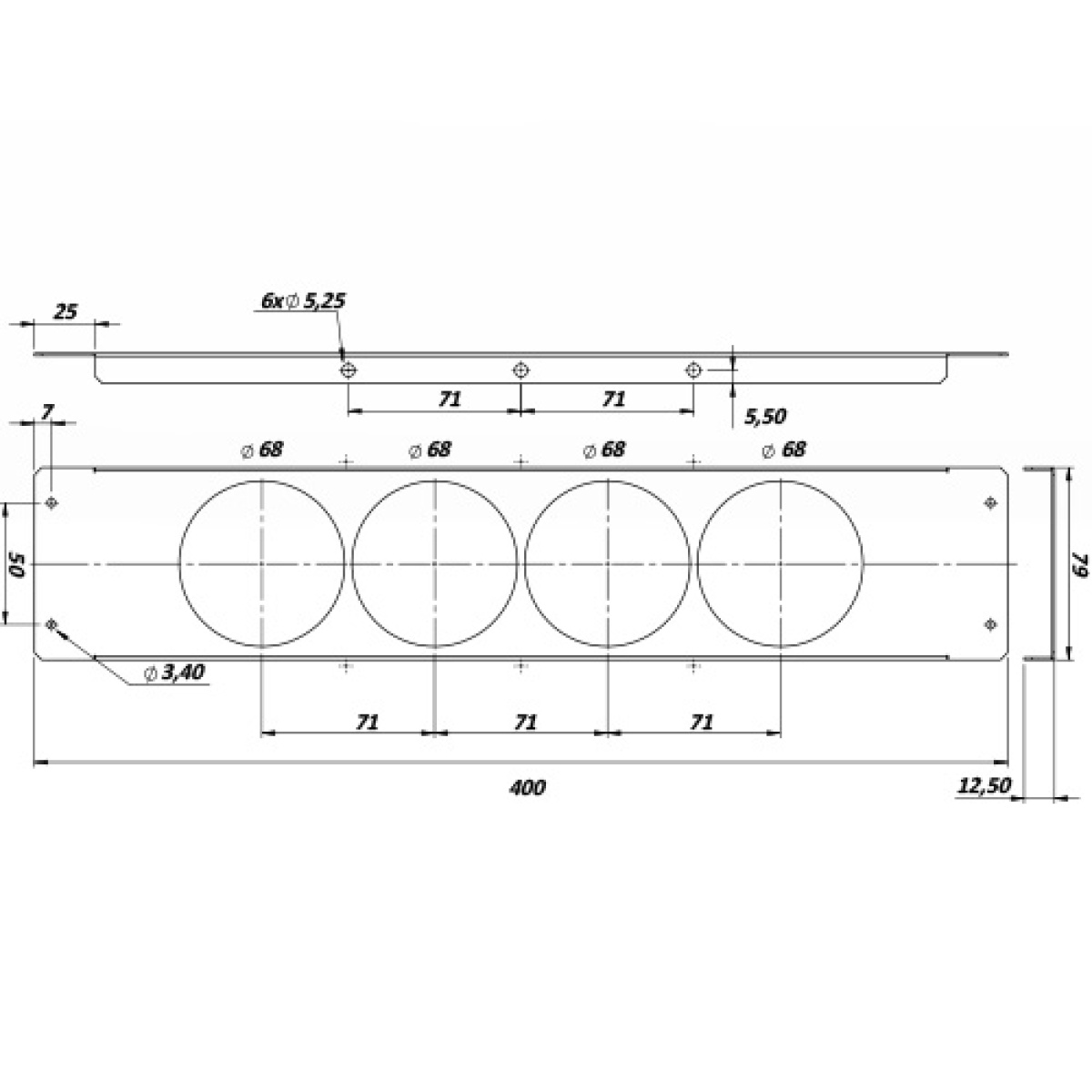

Technical Sheet
