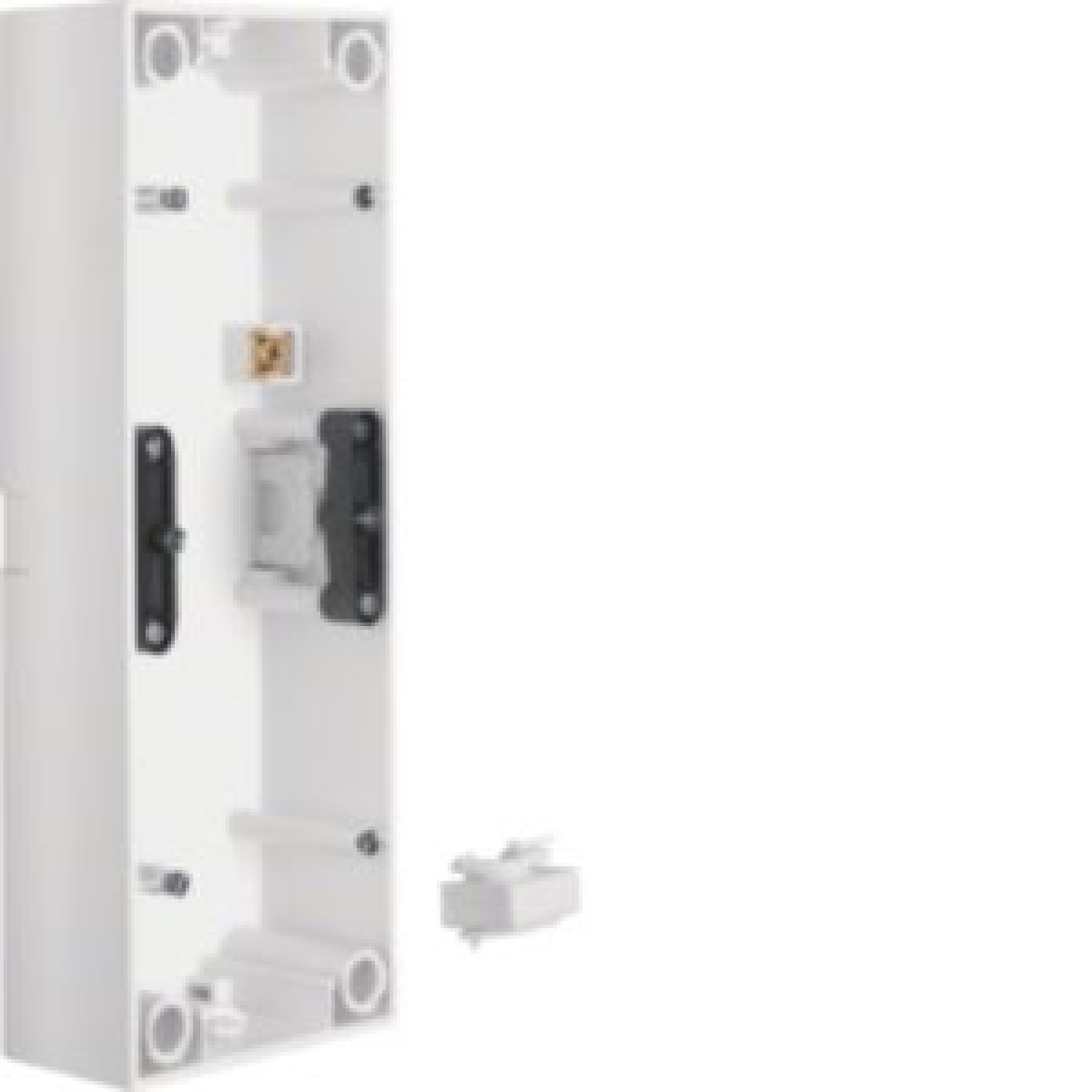

S1Q3 caixa superfície x3 branco mt
Boxes
S1Q3 caixa superfície x3 branco mt
Manufacturer Ref:
10439909
Nortécnica Ref:
EAN:
4011334230632
Description
Technical Information
Attributes
Assembly arrangement
Surface mounted box
Colour
White
Width
225.3
Halogen free
Yes
Height
92.6
Depth
44.4
Shape
Rectangular
Number of units
-
Shock resistant
No
Surface protection
Untreated
With cable entry
Yes
Diameter
-
Material quality
Thermoplastic
Material
Plastic
Number of inlets
4
With cover frame
No
Mounting direction
Horizontal and vertical
RAL-number similar
9010
Degree of protection IP
IP20
Inlet from the rear
-
Transparent
No
Surface finishing
Matt
With screw gland entry
No
With duct entry
Yes
Device width
225
Device height
83
Device depth
42
Number of modules module system
0
Suitable for modular domestic switching devices
No
Number of earthing terminals
1
Desktop device
No
Cross-trunking mounting
No
With installation tube entry
Yes
Suitable for mounting over existing flush-mounted box
Yes
Compliant with BS 4662
No
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
