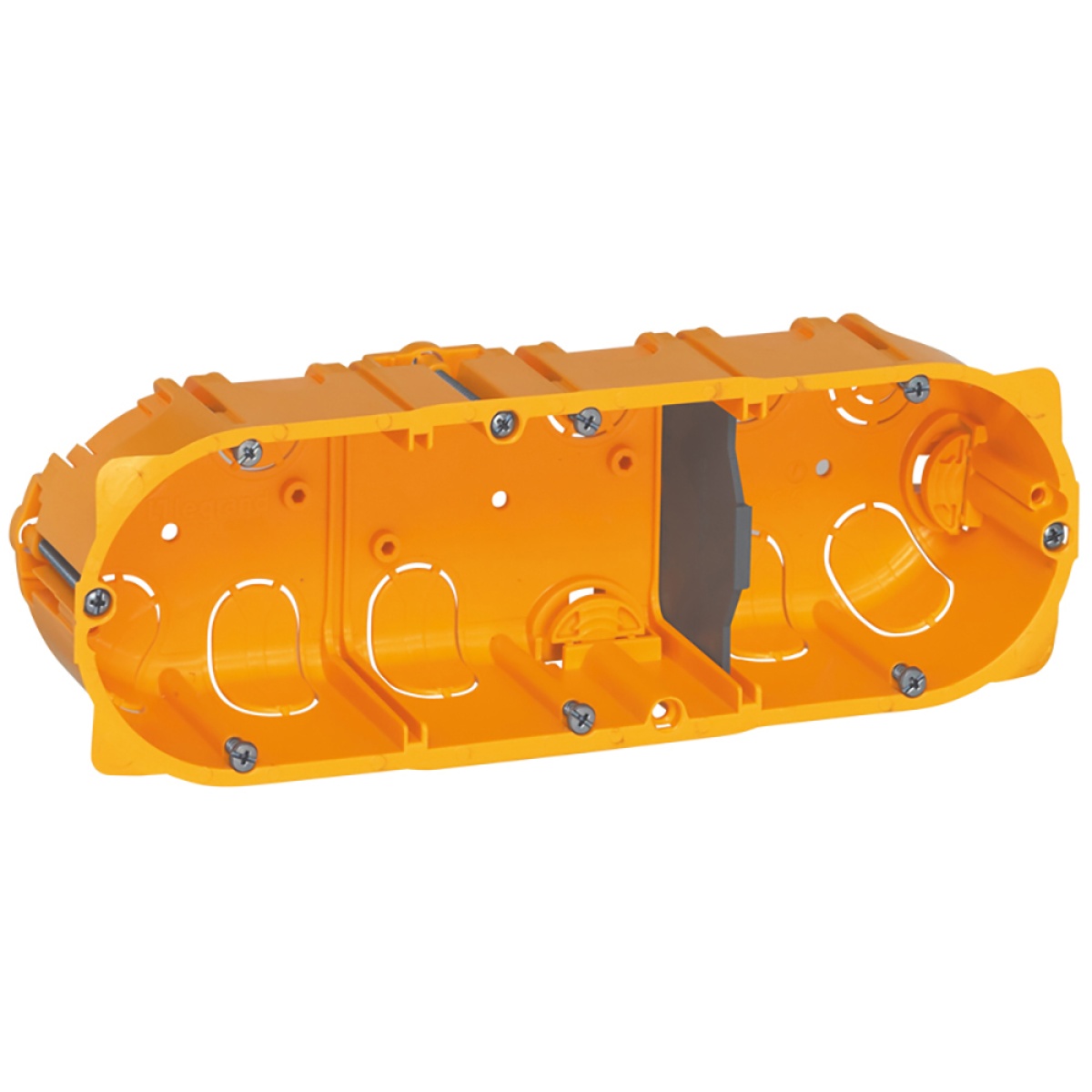

Sistema Batibox - Paredes ocas - Caixa Tripla - Profundidade 40 mm
Boxes
Sistema Batibox - Paredes ocas - Caixa Tripla - Profundidade 40 mm
Manufacturer Ref:
080043
Nortécnica Ref:
03080043
EAN:
3245060800437
Description
Technical Information
Attributes
Mounting method
Hollow wall
Colour
Yellow
Width
72.8
Model
3-fold
Halogen free
Yes
Shape
Oval
Surface protection
Untreated
Diameter
67
Equipped with
None
Construction type
Device connection box (round/square)
Inner depth
40
Couplable
-
Length
213
Sealable
No
Circuit integrity
None
Material
Plastic
Number of inlets
10
Mounting switching equipment
Screw or spread out
Cover attachment
Other
For number of device inserts
8
Luminaire hook mounting
No
Max. conductor cross section
-
With screening
No
EF005060
-
With screws
Yes
Airtight
No
Depth
-
-
Suitable for cable diameter
16
25
Degree of protection IP
IP20
For tube diameter
Other
Inlet from the rear
Yes
Pipe locking
No
Special application
-
Clamp position fixed
No
With partition panel
-
Number of poles of the clamp
-
Nozzle
None
Provided with revolving ring
-
Housing feed-through by seal membrane
-
Housing feed-through by nozzle
-
Housing feed-through by step membrane
-
Pipe locking optional
-
Number of included spouts
-
Cover model
None
Housing feed-through by break-out opening
-
Transparent cover
-
Degree of protection NEMA
-
Suitable for wallboard thickness
-
-
Number of non-adjustable device fixing lugs
-
Number of adjustable device fixing lugs
-
Compliant with BS 4662
-
Brands
Legrand
