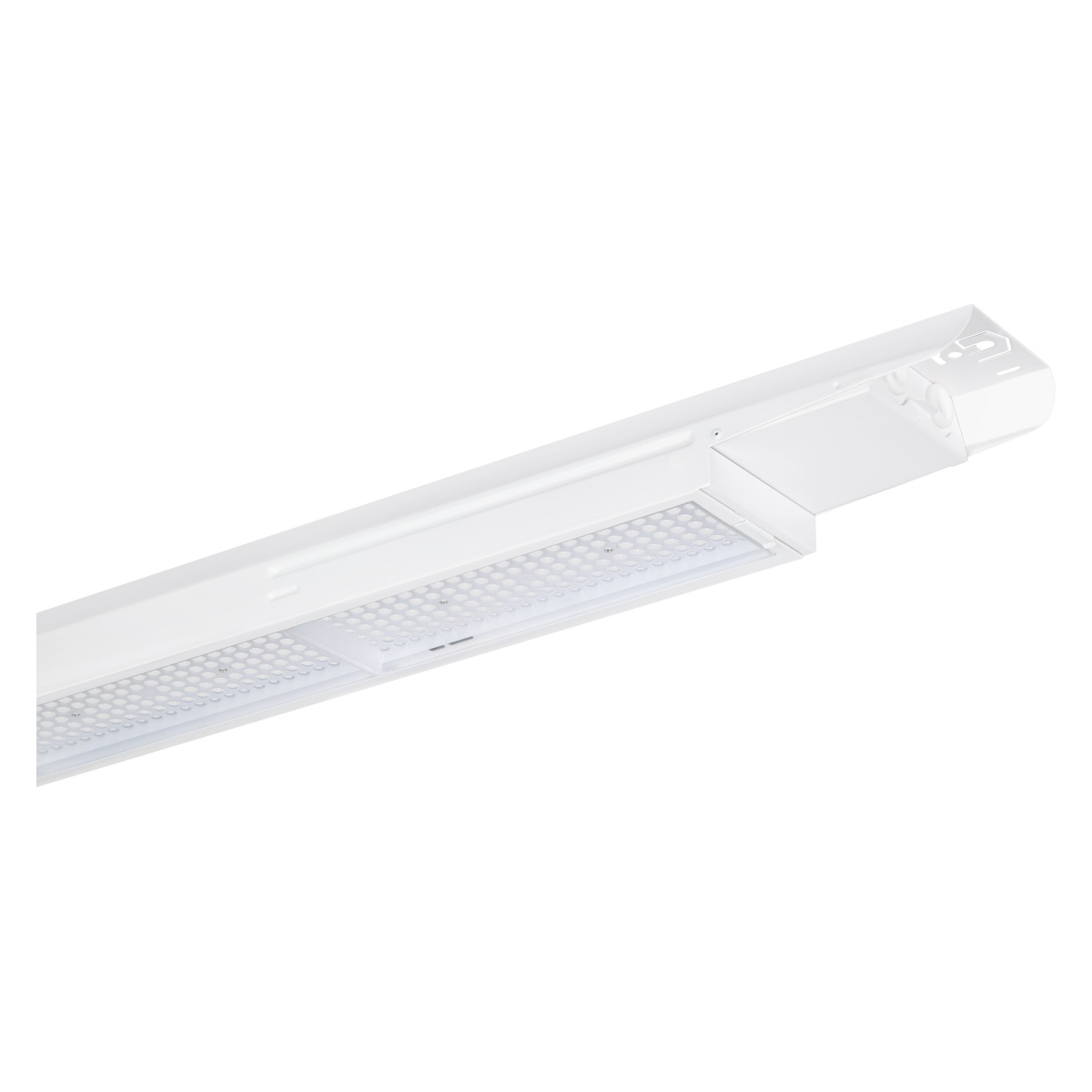

LOW BAY FLEX 1500 DALI DALI P 73W 840 W
Industry
LOW BAY FLEX 1500 DALI DALI P 73W 840 W
Nortécnica Ref:
EAN:
4099854163791
Description
Technical Information
Attributes
Mounting method
-
Protection class according to IEC 61140
I
Largura
115.00
Diâmetro externo
-
Reflector
None
Lamp holder
None
Secção transversal do condutor
-
Connection type
-
Housing colour
White
Voltage type
AC
Suitable for lamp power
-
Type of control gear
-
Índice de restituição de cor CRI
80-89
EF001263
No
Número de polos
7
Comprimento
1527.00
Alturaprofundidade
65.00
Housing material
-
Lamp type
LED not exchangeable
Reflector colour
-
Suitable for emergency lighting
No
Light distribution
Symmetric
Material reflector
-
Impact strength
IK08
Nominal voltage
220
240
Fonte de alimentação de emergência integrada
No
Degree of protection IP
IP23
With protective cover
No
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
0
With control gear
Yes
Beam angle
-
Nominal current
320
320
Colour temperature
4000
4000
Potência máx. do sistema
73
EF009349
11680
Colour of light
White
Constant light output CLO
No
Type of wiring
Suitable for loop-through wiring
Vida útil nominal L70B50 a 25 C
100000
Colour consistency McAdam ellipse
-
EF011947
-
Photobiological safety according to EN 62471
RG1
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-25
+50
Filament test according to IEC 60695-2-11
-
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming potentiometer integrated
No
Regulação LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Regulação por redução da onda sinusoidal
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
No
Light distributor
Diffuser lens/optic/panel
Rendimento da luminária
160
Dimming DSI
No
Suitable for auxiliary lamp
No
Operation by Bluetooth
No
Número max. de luminárias por disjuntor C16
36
Número max. de luminárias por disjuntor B16
27
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
D
Fator de potência
0.90
Meets min. EIA lifetime criterion L90 at 50,000 hours at tq 25 C
Yes
Brands
LEDVANCE GmbH
