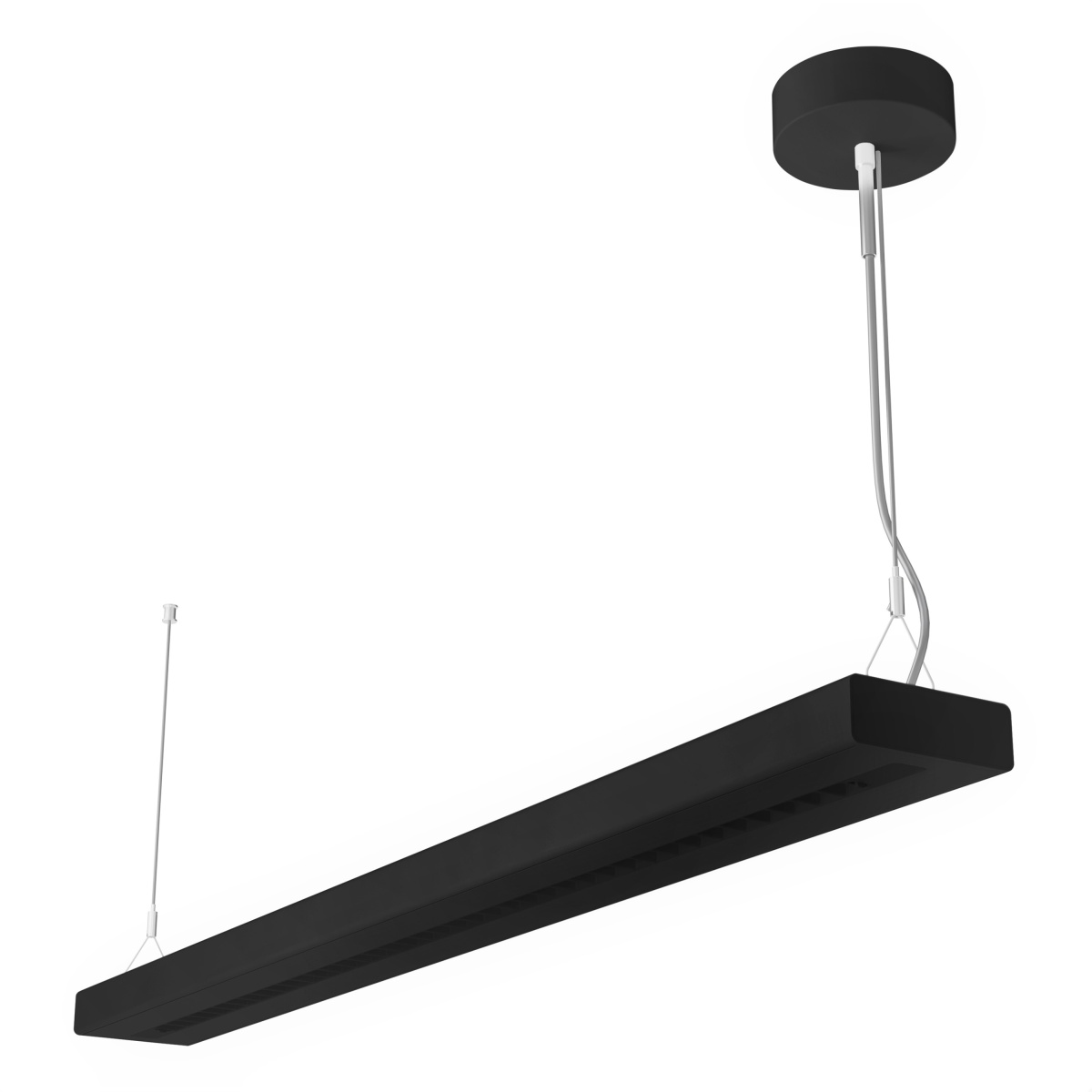

LINEAR INDIVILED DIRECTINDIRECT 1200 DALI 1200 P 54W 940 DAVR BK
Interior
LINEAR INDIVILED DIRECTINDIRECT 1200 DALI 1200 P 54W 940 DAVR BK
Nortécnica Ref:
EAN:
4099854296864
Description
Technical Information
Attributes
Protection class according to IEC 61140
I
Largura
125.00
Reflector
-
Lamp holder
-
Secção transversal do condutor
-
Connection type
Push-in clamp
Housing colour
Black
Voltage type
AC
Suitable for lamp power
-
Type of grid
Other
Type of control gear
-
Índice de restituição de cor CRI
90-100
Diâmetro
-
Número de polos
5
Comprimento
1210.00
Alturaprofundidade
43.00
Housing material
Aluminium
Lamp type
-
Direct-indirect proportion separately controllable
Yes
Suitable for light line configuration
No
Suitable for emergency lighting
Yes
Light outlet
Direct/indirect
Light distribution
Symmetric
Material cover
Plastic, transparent
Pendant length
1500
1500
Impact strength
IK06
Nominal voltage
220
240
Fonte de alimentação de emergência integrada
No
Degree of protection IP
IP20
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
-
With control gear
Yes
With suspension
Yes
Suitable for workplace according to EN 12464-1
No
Nominal current
160
233
Colour temperature
4000
4000
Potência máx. do sistema
54
EF009349
4550
Colour of light
White
Constant light output CLO
No
IFTTT support available
Yes
Type of wiring
Suitable for loop-through wiring
Vida útil nominal L70B50 a 25 C
100000
Colour consistency McAdam ellipse
SDCM3
Degree of protection NEMA
1
Filament test according to IEC 60695-2-11
-
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming potentiometer integrated
No
Regulação LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Regulação por redução da onda sinusoidal
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
No
Light distributor
-
Rendimento da luminária
134
Dimming DSI
No
Fator de brilho unificado UGR
19
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Número max. de luminárias por disjuntor C16
38
Número max. de luminárias por disjuntor B16
29
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 75 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 75 000 h, temperatura 25 C tq
-
Dimming DALI-2
Yes
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Colour of light adjustable
No
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Exchangeable control gear
Yes
Energy efficiency class of the light source according to EU regulation 20192015
E
Fator de potência
0.90
Brands
LEDVANCE GmbH
