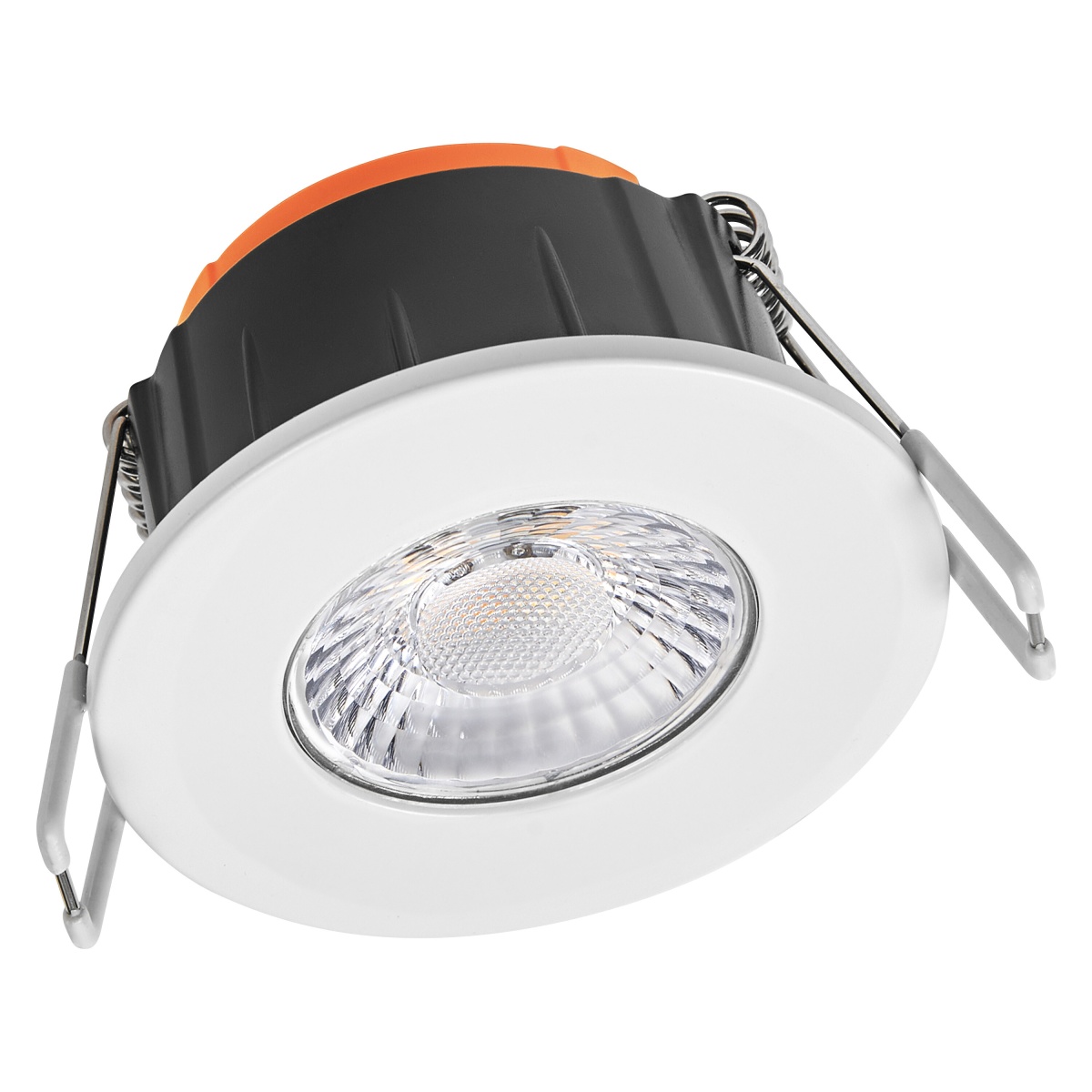

SPOT COMBO FIX V 6W CPS DIM 60DEG IP65 WT
Interior
SPOT COMBO FIX V 6W CPS DIM 60DEG IP65 WT
Nortécnica Ref:
EAN:
4058075845077
Description
Technical Information
Attributes
Protection class according to IEC 61140
II
Largura
81.50
Outer diameter
81.50
Reflector
High-gloss
Lamp holder
None
Conductor cross section
-
Connection type
-
Housing colour
White
Surface protection
Powder coating
Voltage type
AC
With movement sensor
No
Suitable for lamp power
-
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
90-100
Suitable for wall mounting
No
Built-in width
68
With light sensor
No
Suitable for suspended mounting
No
Luminous intensity
610
Número de polos
2
Comprimento
81.50
Heightdepth
48.00
Housing material
Aluminium
Lamp type
LED not exchangeable
Reflector colour
White
Built-in length
68
Light outlet
Direct
Light distribution
Symmetric
Material cover
-
Impact strength
IK03
Nominal voltage
220
240
EF005138
No
Degree of protection IP
EV006421
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
Yes
Suitable for number of light sources
0
Suitable for built-in mounting
Yes
With control gear
Yes
Suitable for workplace according to EN 12464-1
No
Suitable for surface mounting
Yes
Beam angle
-
Connectable conductor cross section
-
Surface brushed
No
Nominal current
27
19
Colour temperature
2700
2700
Max. system power
6
EF009349
600
Colour of light
White
Adjustability
Not adjustable
Suitable for traverse mounting
No
Suitable for pedestalfloor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Constant light output CLO
No
IFTTT support available
Yes
Luminous flux
600
600
Type of wiring
Suitable for loop-through wiring
Rated lifetime L70B50 at 25 C
50000
Colour consistency McAdam ellipse
-
EF011947
-
Photobiological safety according to EN 62471
RG1
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-20
+40
Filament test according to IEC 60695-2-11
-
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
Yes
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
No
Light distributor
Focal lens
Luminaire efficacy
92
Suitable for low voltage cable system
No
Dimming DSI
No
Unified Glare Ratio UGR
-
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
40
Lumen maintenance at median useful life of 35,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 35,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Dimming DALI-2
No
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Colour of light adjustable
Positions
Luminous flux adjustable
Positions
Beam angle adjustable
No
Exchangeable control gear
No
Built-in diameter
68
68
Energy efficiency class of the light source according to EU regulation 20192015
E
Suitable for ceiling mounting
Yes
Built-in heightdepth
48
Power factor
0.90
Brands
LEDVANCE GmbH
