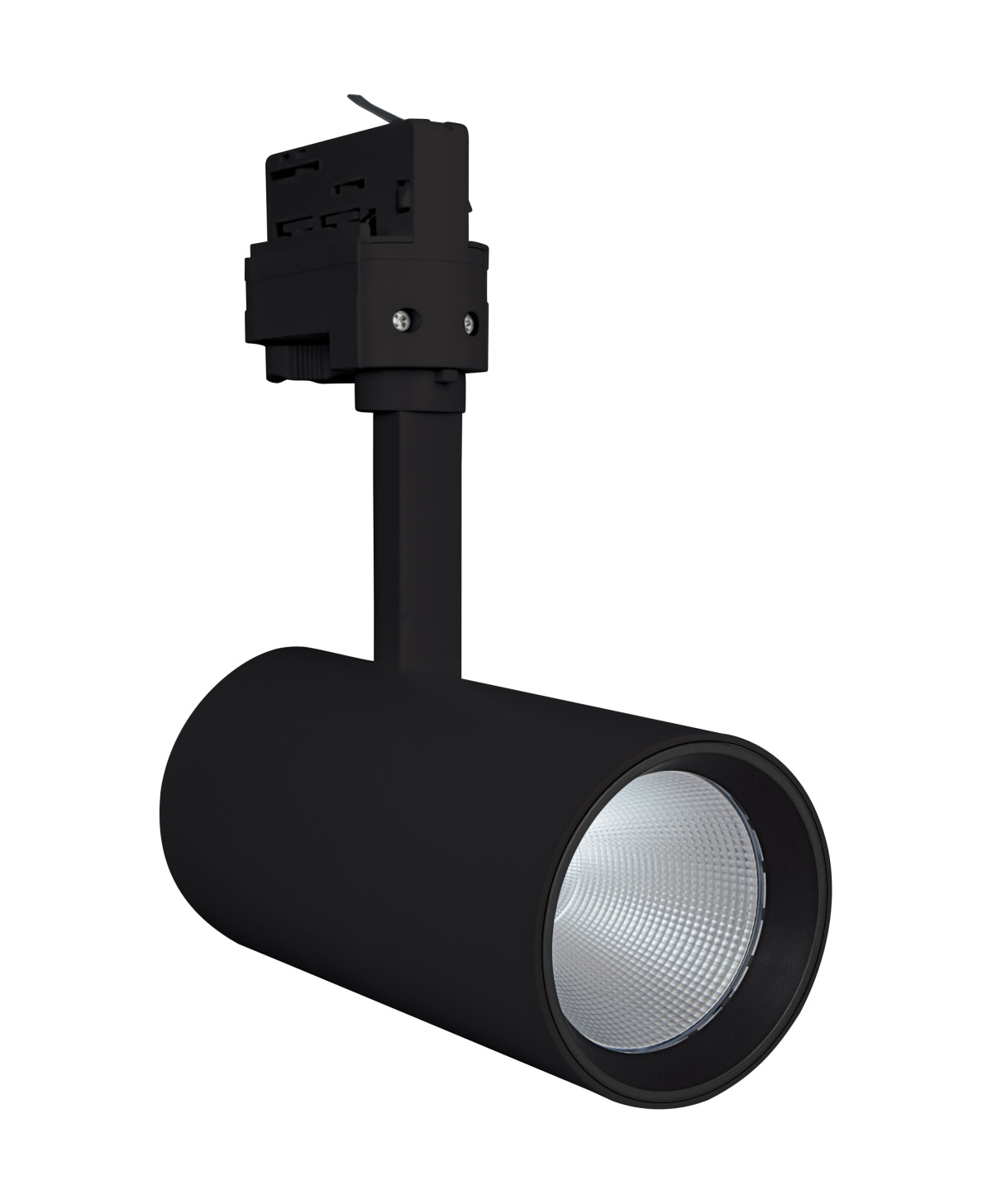

TRACKLIGHT SPOT D75 25W 25 W 3000 K 90RA NFL BK
Interior
TRACKLIGHT SPOT D75 25W 25 W 3000 K 90RA NFL BK
Nortécnica Ref:
EAN:
4058075113565
Description
Technical Information
Attributes
Protection class according to IEC 61140
I
Largura
75.00
Diâmetro externo
75.00
Reflector
High-gloss
Lamp holder
None
Secção transversal do condutor
-
Connection type
Busbar adaptor
Housing colour
Black
Surface protection
Powder coating
Voltage type
AC
With movement sensor
No
Suitable for lamp power
-
Type of control gear
LED operating device current-controlled
Índice de restituição de cor CRI
90-100
Suitable for wall mounting
Yes
Largura para embutir
-
With light sensor
No
Suitable for suspended mounting
Yes
Intensidade luminosa
-
Número de polos
2
Comprimento
75.00
Alturaprofundidade
255.00
Housing material
Aluminium
Lamp type
LED not exchangeable
Reflector colour
-
Comprimento para embutir
-
Light outlet
Direct
Light distribution
Symmetric
Material cover
Plastic, transparent
Impact strength
IK02
Nominal voltage
220
240
Fonte de alimentação de emergência integrada
No
Degree of protection IP
EV006405
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
No
Adequado para número de lâmpadas
0
Suitable for built-in mounting
No
With control gear
Yes
Suitable for workplace according to EN 12464-1
No
Suitable for surface mounting
Yes
Beam angle
-
Connectable conductor cross section
-
Surface brushed
No
Nominal current
110
110
Colour temperature
3000
3000
Potência máx. do sistema
25.00
EF009349
1750
Colour of light
White
Adjustability
Rotating and swivelling
Suitable for traverse mounting
No
Suitable for pedestalfloor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Constant light output CLO
-
IFTTT support available
Yes
Luminous flux
1750
1750
Type of wiring
-
Vida útil nominal L70B50 a 25 C
50000
Colour consistency McAdam ellipse
SDCM3
EF011947
-
Photobiological safety according to EN 62471
RG1
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-20
+40
Filament test according to IEC 60695-2-11
-
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming potentiometer integrated
No
Regulação LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Regulação por redução da onda sinusoidal
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
Yes
Light distributor
Reflector
Rendimento da luminária
70
Suitable for low voltage cable system
No
Dimming DSI
No
Fator de brilho unificado UGR
-
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Número max. de luminárias por disjuntor C16
38
Número max. de luminárias por disjuntor B16
30
Depreciação do fluxo luminoso; vida útil média de 35 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 35 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Dimming DALI-2
No
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
No
Built-in diameter
-
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for ceiling mounting
No
EF023518
-
Fator de potência
0.90
Brands
LEDVANCE GmbH
