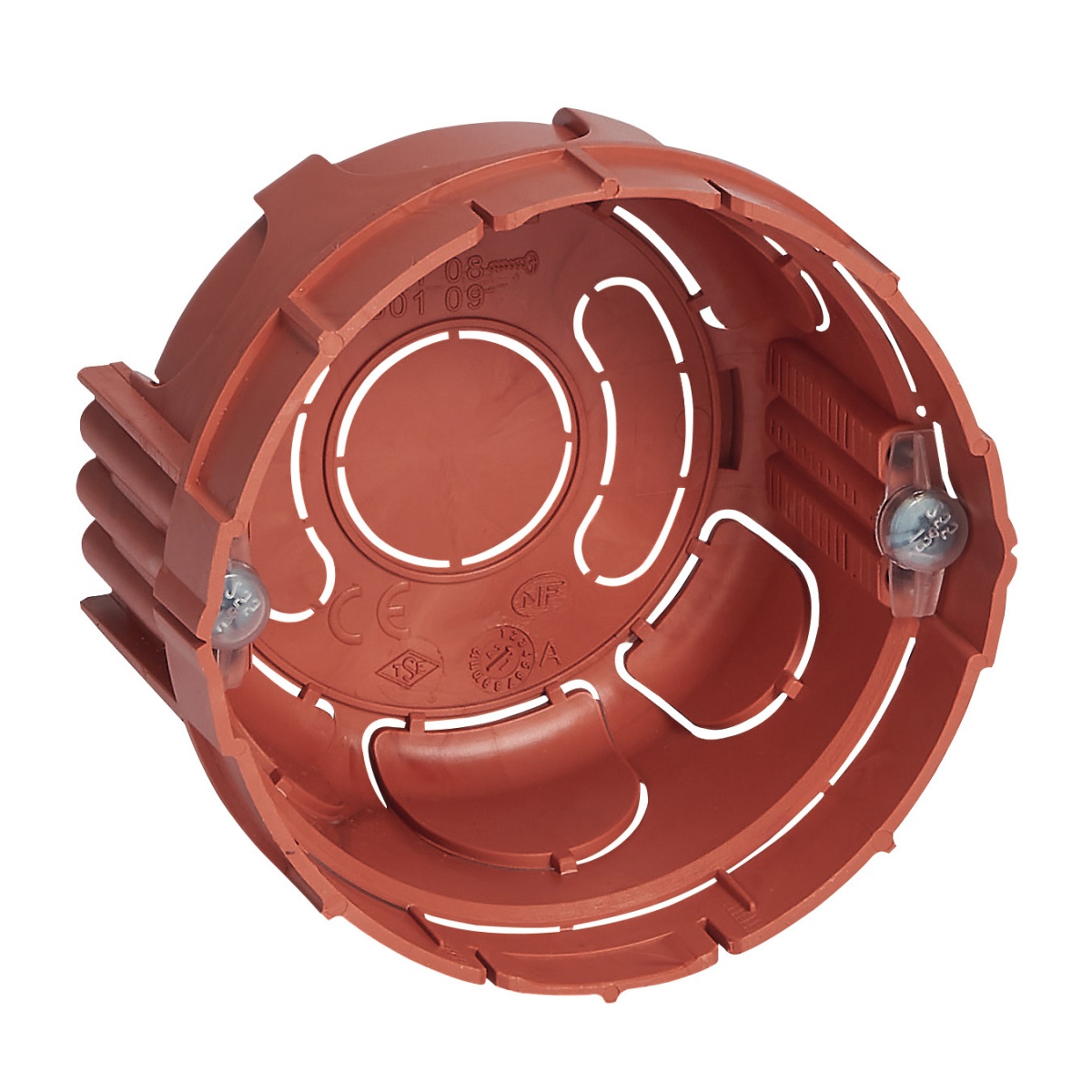

Sistema Batibox - Alvenaria - Caixa Simples Redonda - Profundidade 3040 mm
Boxes
Sistema Batibox - Alvenaria - Caixa Simples Redonda - Profundidade 3040 mm
Nortécnica Ref:
EAN:
3245060801083
Description
Technical Information
Attributes
Mounting method
Facing brickwork
Colour
Red
Largura
-
Model
Single
Halogen free
Yes
Shape
Round
Surface protection
Untreated
Diameter
67
Equipped with
None
Construction type
Device connection box (round/square)
Profundidade interior
40
Couplable
-
Comprimento
60
Sealable
No
Integridade do circuito
None
Material
Plastic
Número de vias de entrada
6
Mounting switching equipment
Screwing
Cover attachment
Other
Para o número de acessórios
2
Luminaire hook mounting
No
Máx. seção transversal do condutor
-
With screening
No
EF005060
-
With screws
Yes
Airtight
Yes
Depth
30
40
Suitable for cable diameter
16
20
Degree of protection IP
IP20
For tube diameter
Other
Inlet from the rear
Yes
Pipe locking
No
Special application
-
Clamp position fixed
No
With partition panel
-
Número de polos do terminal
0
Nozzle
None
Provided with revolving ring
No
Housing feed-through by seal membrane
-
Housing feed-through by nozzle
-
Housing feed-through by step membrane
-
Pipe locking optional
-
Número de bicos incluídos
-
Cover model
None
Housing feed-through by break-out opening
-
Transparent cover
-
Degree of protection NEMA
-
Suitable for wallboard thickness
-
-
Número de olhais de fixação do dispositivo não ajustáveis
-
Número de olhais de fixação do dispositivo ajustáveis
-
Compliant with BS 4662
-
Brands
Legrand Eléctrica S.A.
