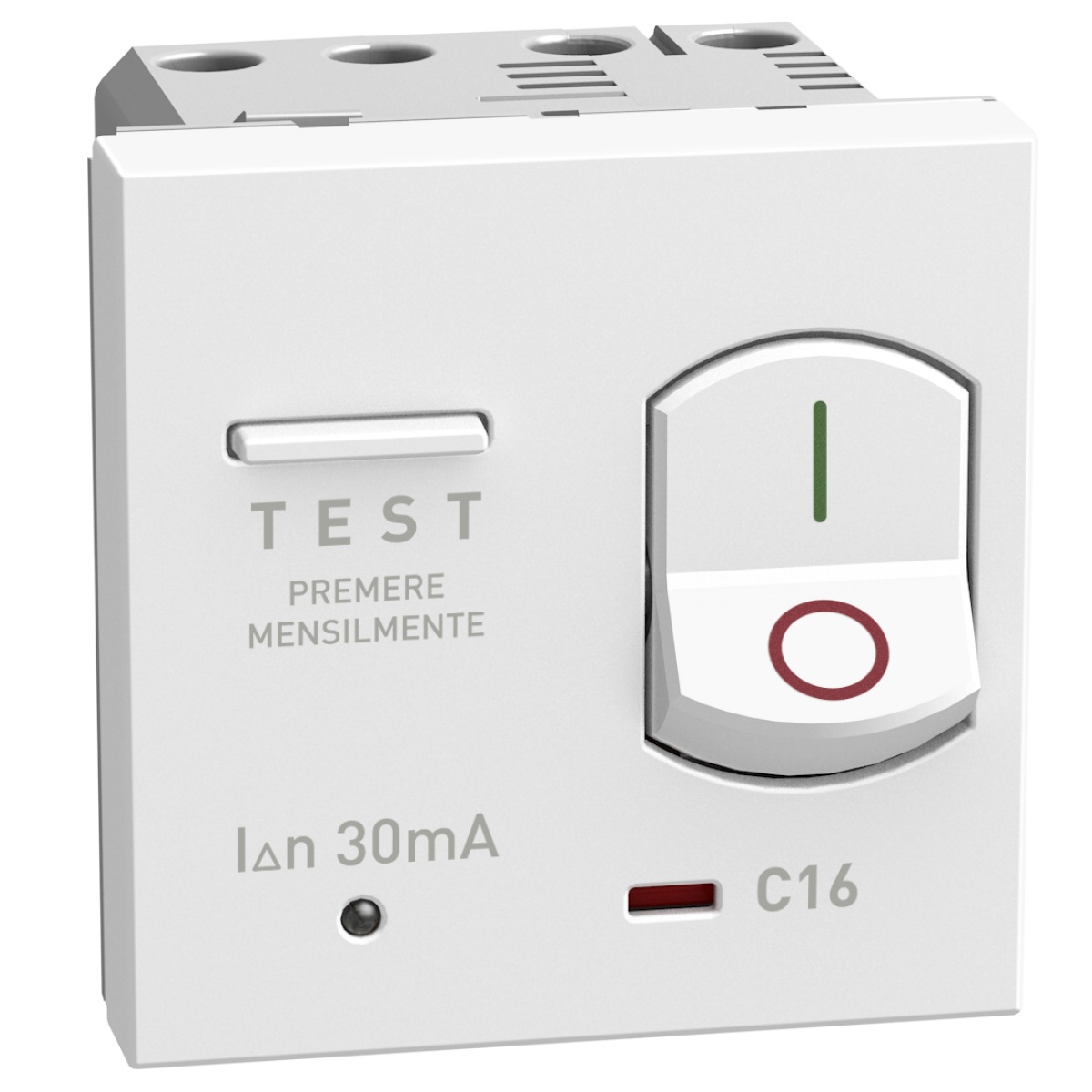

Light Now - Disjuntor diferencial 1PN 16A 30mA - 230V AC - Curva C - White
Cutting and Protection Devices
Light Now - Disjuntor diferencial 1PN 16A 30mA - 230V AC - Curva C - White
Nortécnica Ref:
EAN:
8005543761779
Description
Technical Information
Attributes
Voltage type
AC
Built-in depth
40
Rated current
16
EF000228
230
Release characteristic
C
Rated insulation voltage Ui
253
Rated fault current
30
Leakage current type
AC
Surge current capacity
3000
Current limiting class
1
Overvoltage category
-
Pollution degree
-
Width in number of modular spacings
45
Power loss
-
Frequency
50/60 Hz
Degree of protection IP
IP20
Number of protected poles
1
Concurrently switching neutral conductor
Yes
Rated short-circuit breaking capacity according to IEC 60947-2
1500
Connectable conductor cross section solid-core
2.5
3
Connectable conductor cross section multi-wired
1.5
2.5
With interlocking device
No
Ambient temperature during operating
-5
35
Flush-mounted installation
-
Number of poles total
1
Anti-nuisance tripping version
No
Rated impulse withstand voltage Uimp
4
Rated short-circuit breaking capacity Icn according to EN 61009-1
1500
Disconnection characteristic
Undelayed
Rated short-circuit breaking capacity according to EN 61009
1500
Brands
Legrand Eléctrica S.A.
