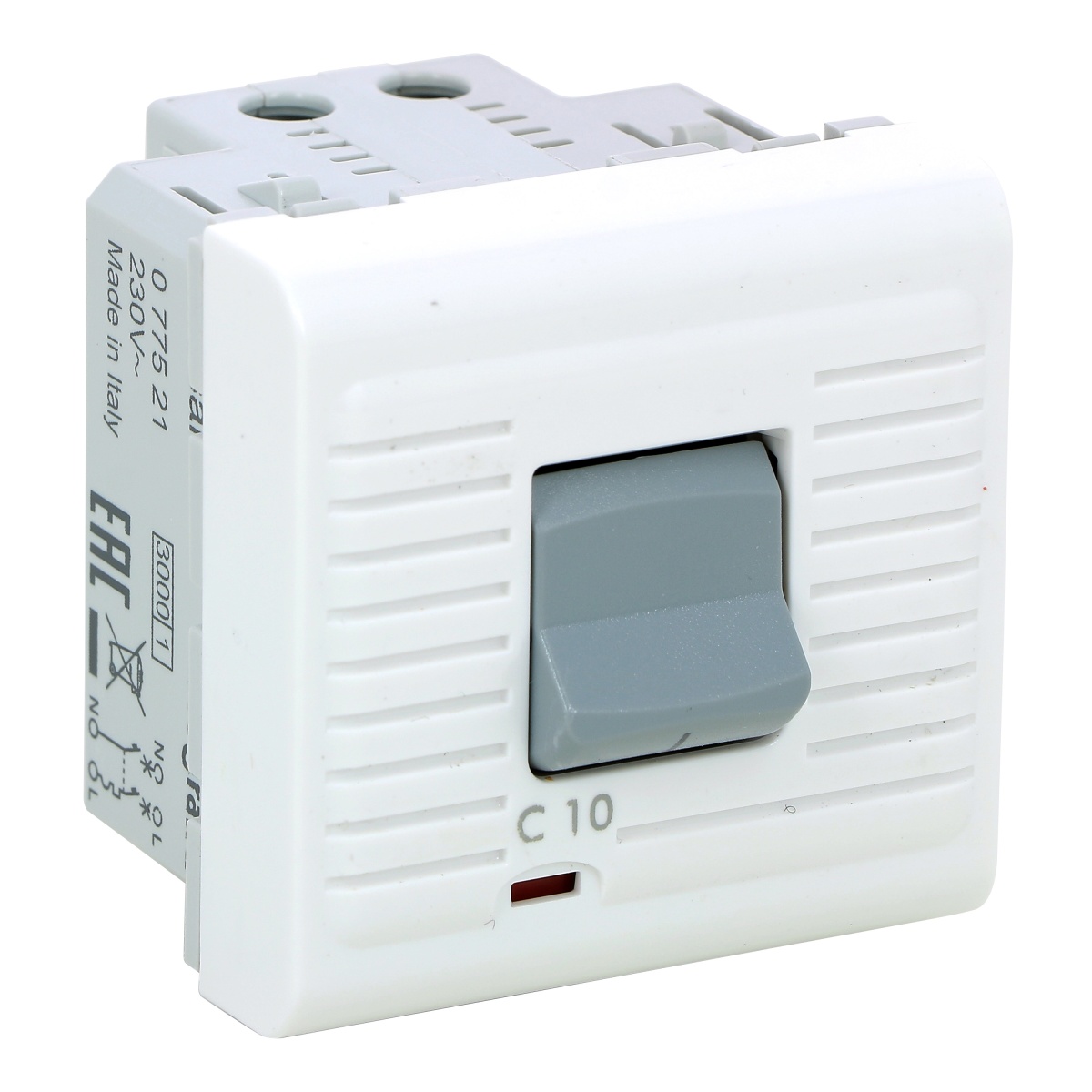

Mosaic - Disjuntor de proximidade magnetotérmico - 10A - 2 módulos - branco
Cutting and Protection Devices
Mosaic - Disjuntor de proximidade magnetotérmico - 10A - 2 módulos - branco
Nortécnica Ref:
03077521
EAN:
3245060775216
Description
Technical Information
Attributes
Voltage type
AC
Built-in depth
40
Rated current
10
EF000228
230
Frequency
50
50
Release characteristic
C
Rated insulation voltage Ui
-
Current limiting class
-
Overvoltage category
-
Pollution degree
-
Width in number of modular spacings
45
Explosion-proof
-
Power loss
-
Degree of protection IP
IP21
Number of protected poles
1
Concurrently switching neutral conductor
Yes
Connectable conductor cross section solid-core
2.5
2.5
Connectable conductor cross section multi-wired
-
-
Ambient temperature during operating
-5
40
Flush-mounted installation
Yes
Additional equipment possible
-
Number of poles total
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-
Rated impulse withstand voltage Uimp
-
Brands
Legrand Eléctrica S.A.
