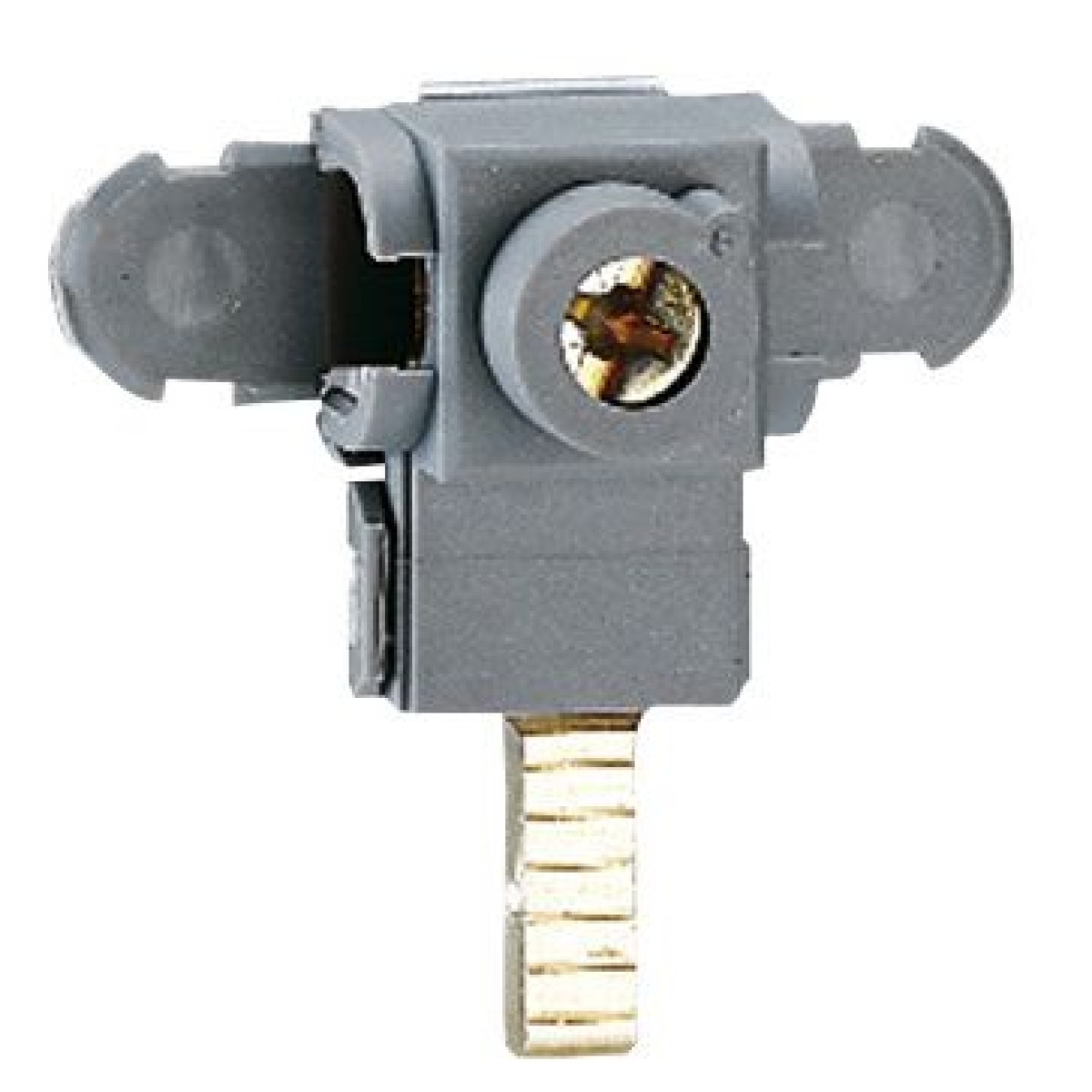

Ligadores de chegada - secção de ligação 4 a 25 mm2 - IP2X
Accessories and Components
Ligadores de chegada - secção de ligação 4 a 25 mm2 - IP2X
Nortécnica Ref:
03404905
EAN:
3245064049054
Description
Technical Information
Attributes
Nominal current
100
Mounting method
Other
Width
17.5
Height
37
Depth
19
Connection type
Screwing
Number of inputs
1
Number of outputs
1
Number of poles
1
Contact safe
Yes
Suitable for fine strand conductors
No
Suitable for solid conductors
Yes
Suitable for stranded conductors
Yes
Suitable for fine strand conductors without cable end sleeve
No
Suitable for extra fine-strand conductors
No
Suitable for extra fine-strand conductors without cable end sleeve
No
Conductor cross section, input
4
25
Conductor cross section, output
25
25
Conductor cross section, input AWG
-
-
Conductor cross section, output AWG
4
4
Brands
Legrand Eléctrica S.A.
