Caixa de derivação 100x100x38 Polietileno branco puro RAL 9010
Accessories for Lighting

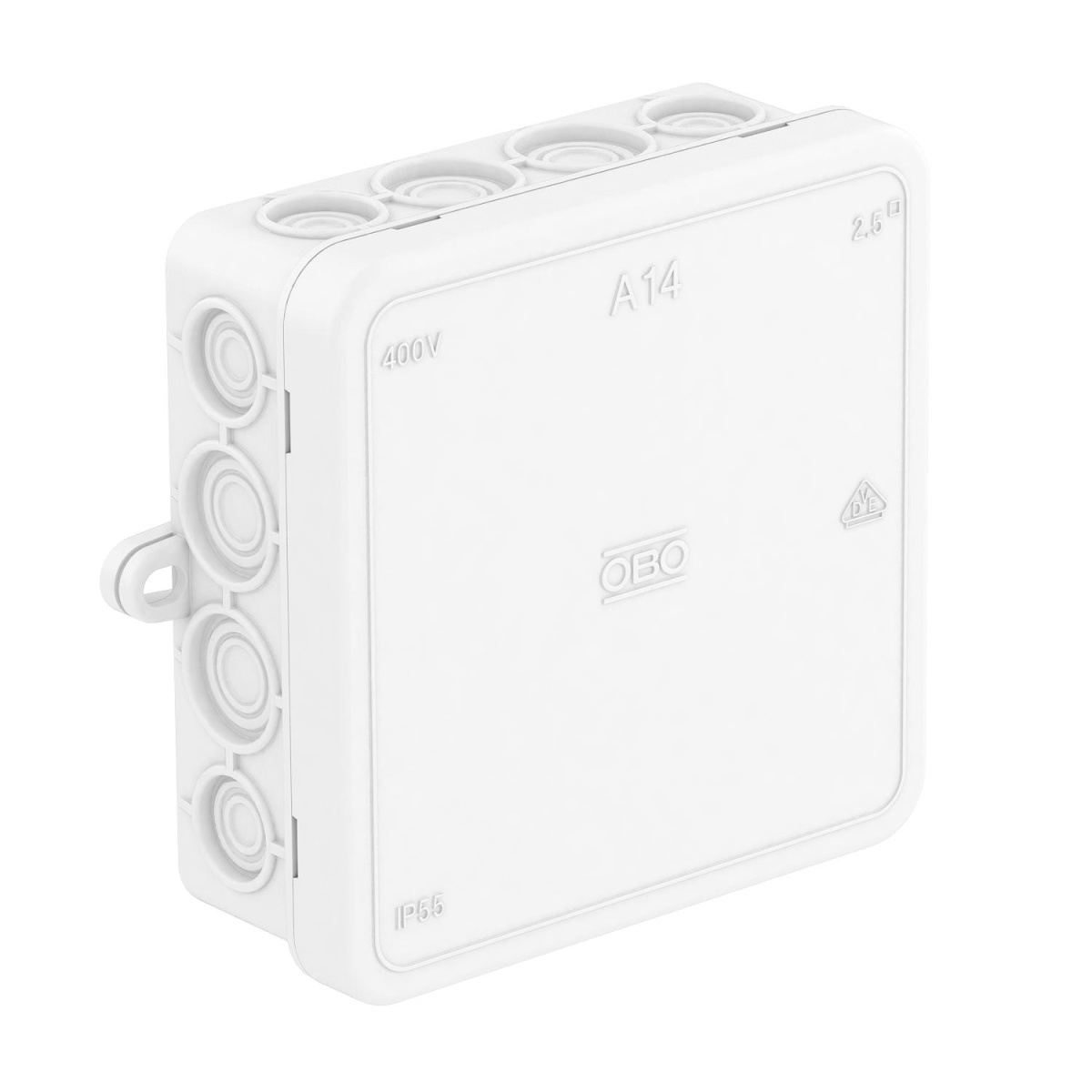

Caixa de derivação 100x100x38 Polietileno branco puro RAL 9010
Manufacturer Ref:
2000390
Nortécnica Ref:
252000390
EAN:
4012195917120
Description
Technical Information
Attributes
Mounting method
Wall-/ceiling mounting
Colour
White
Width
100
Model
Junction box
Halogen free
Yes
Depth
40
Shape
Square
Surface protection
-
Diameter
-
Equipped with
None
Rated insulation voltage Ui
690
Length
100
Sealable
-
Circuit integrity
None
Operating temperature
-5
45
Material
Plastic
Number of inlets
16
Explosion-tested version
-
Cover attachment
Snapped on
Max. conductor cross section
2.5
With screening
No
Weatherproof
No
Degree of protection IP
IP55
For tube diameter
-
Inlet from the rear
No
For Ex-zone gas
None
Connectable
Yes
Type of housing feed-through
Preembossing
For Ex-zone dust
None
Cover model
Blind cover
Castable
-
Casting compound included
-
Transparent cover
-
Degree of protection NEMA
-
Mounting in the soil
-
Mounting under water
-
Brands
80686

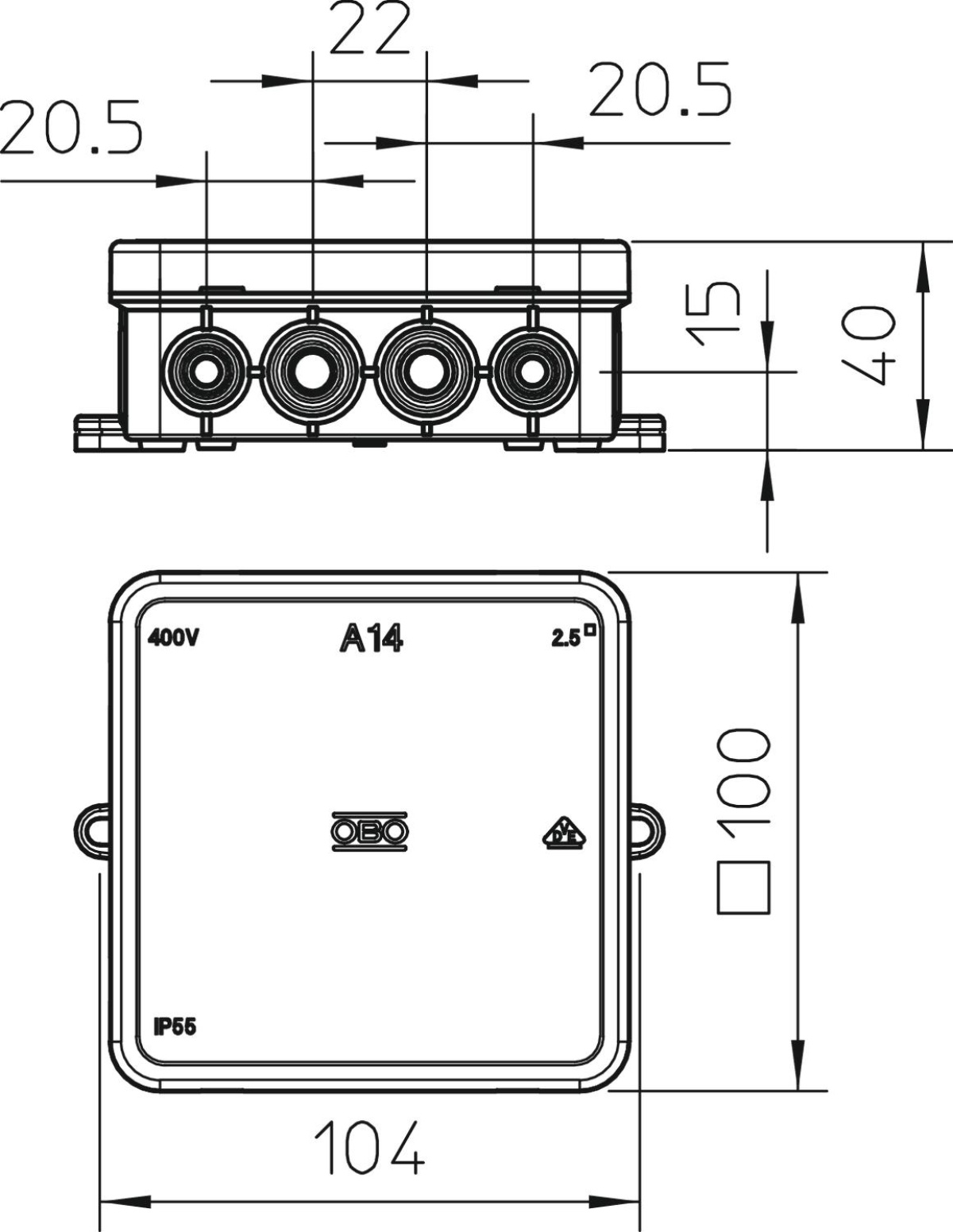

Technical Sheet
