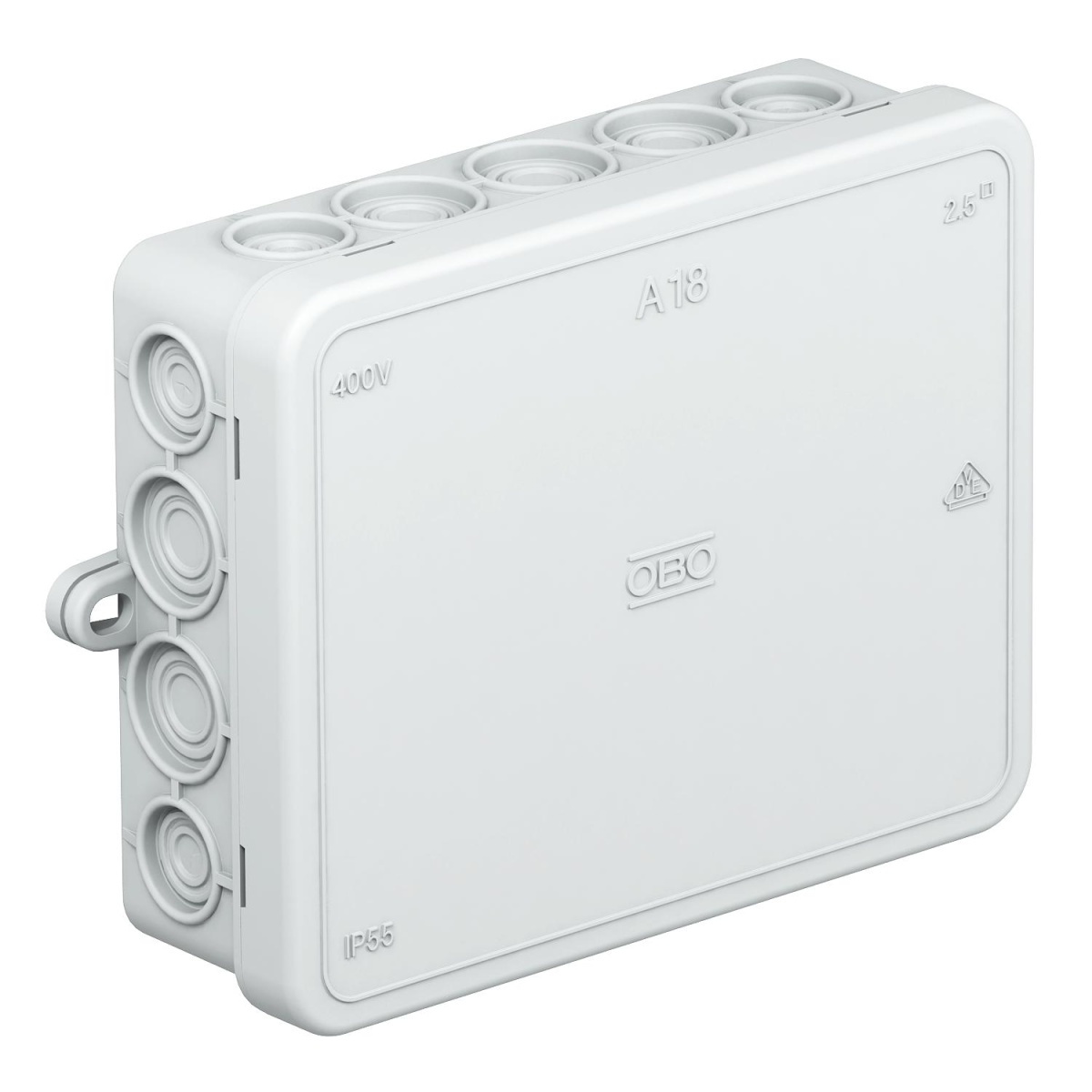

Caixa de derivação 125x100x38 Polietileno cinzento claro RAL 7035
Accessories for Lighting
Caixa de derivação 125x100x38 Polietileno cinzento claro RAL 7035
Manufacturer Ref:
2000410
Nortécnica Ref:
EAN:
4012195917137
Description
Technical Information
Attributes
Mounting method
Wall-/ceiling mounting
Colour
Grey
Width
100
Model
Junction box
Halogen free
Yes
Depth
40
Shape
Square
Surface protection
-
Diameter
-
Equipped with
None
Rated insulation voltage Ui
690
Length
125
Sealable
-
Circuit integrity
None
Operating temperature
-5
45
Material
Plastic
Number of inlets
18
Explosion-tested version
-
Cover attachment
Snapped on
Max. conductor cross section
2.5
With screening
No
Weatherproof
No
Degree of protection IP
IP55
For tube diameter
-
Inlet from the rear
No
For Ex-zone gas
None
Connectable
Yes
Type of housing feed-through
Preembossing
For Ex-zone dust
None
Cover model
Blind cover
Castable
-
Casting compound included
-
Transparent cover
-
Degree of protection NEMA
-
Mounting in the soil
-
Mounting under water
-
Brands
80686
Technical Sheet
