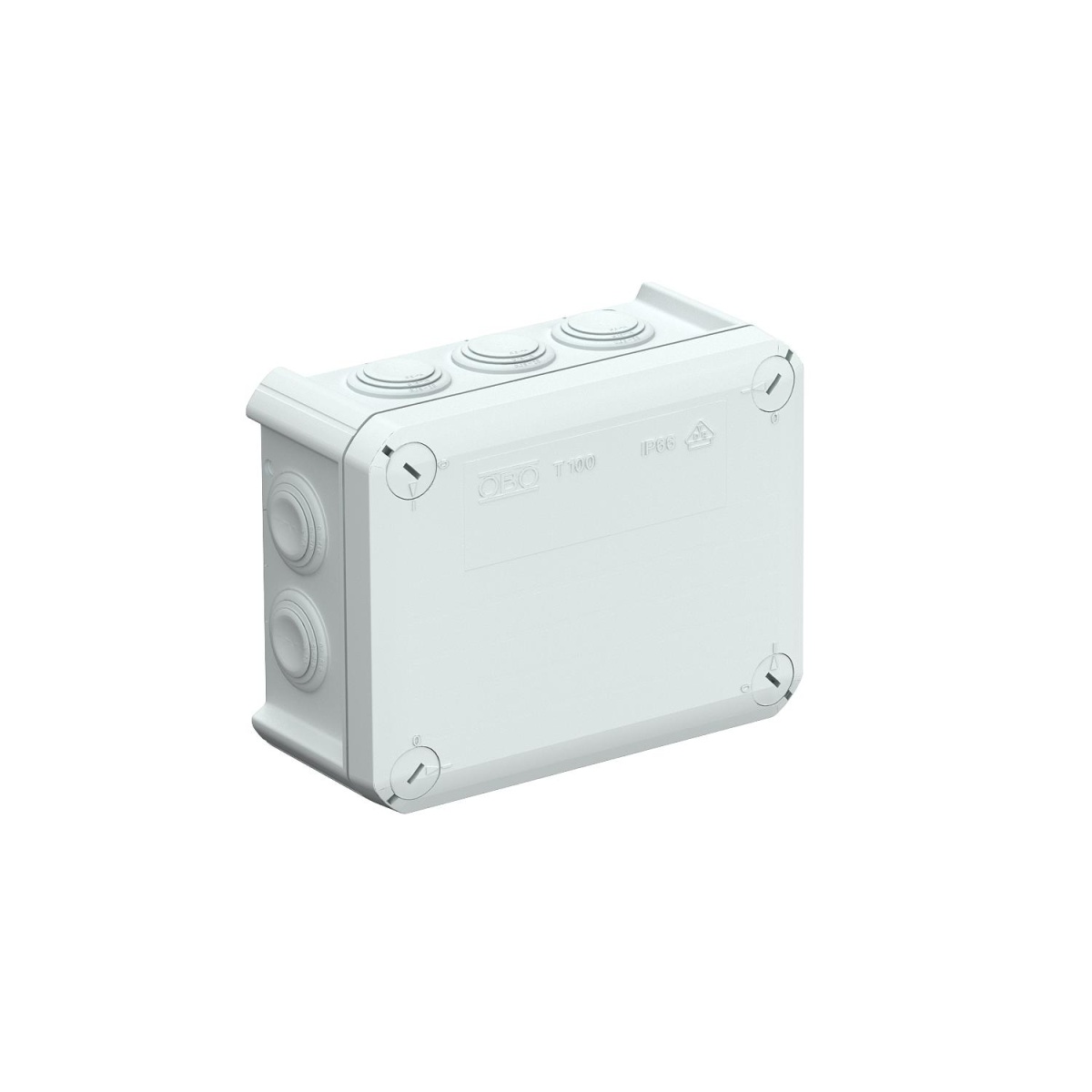

Caixa de derivação com entradas 150x116x67 Polipropileno cinzento claro RAL 7035
Accessories for Lighting
Caixa de derivação com entradas 150x116x67 Polipropileno cinzento claro RAL 7035
Manufacturer Ref:
2007077
Nortécnica Ref:
252007077
EAN:
4012195246794
Description
Technical Information
Attributes
Mounting method
Wall-/ceiling mounting
Colour
Grey
Width
116
Model
-
Halogen free
Yes
Depth
67
Shape
Rectangular
Surface protection
-
Diameter
-
Equipped with
None
Rated insulation voltage Ui
500
Length
150
Sealable
-
Circuit integrity
None
Operating temperature
-5
60
Material
Plastic
Number of inlets
10
Explosion-tested version
-
Cover attachment
Screwed
Max. conductor cross section
-
With screening
No
Weatherproof
No
Degree of protection IP
IP66
For tube diameter
-
Inlet from the rear
Yes
For Ex-zone gas
None
Connectable
Yes
Type of housing feed-through
Trimmable step membrane
For Ex-zone dust
None
Cover model
-
Castable
-
Casting compound included
-
Transparent cover
-
Degree of protection NEMA
-
Mounting in the soil
-
Mounting under water
-
Brands
80686
Technical Sheet
