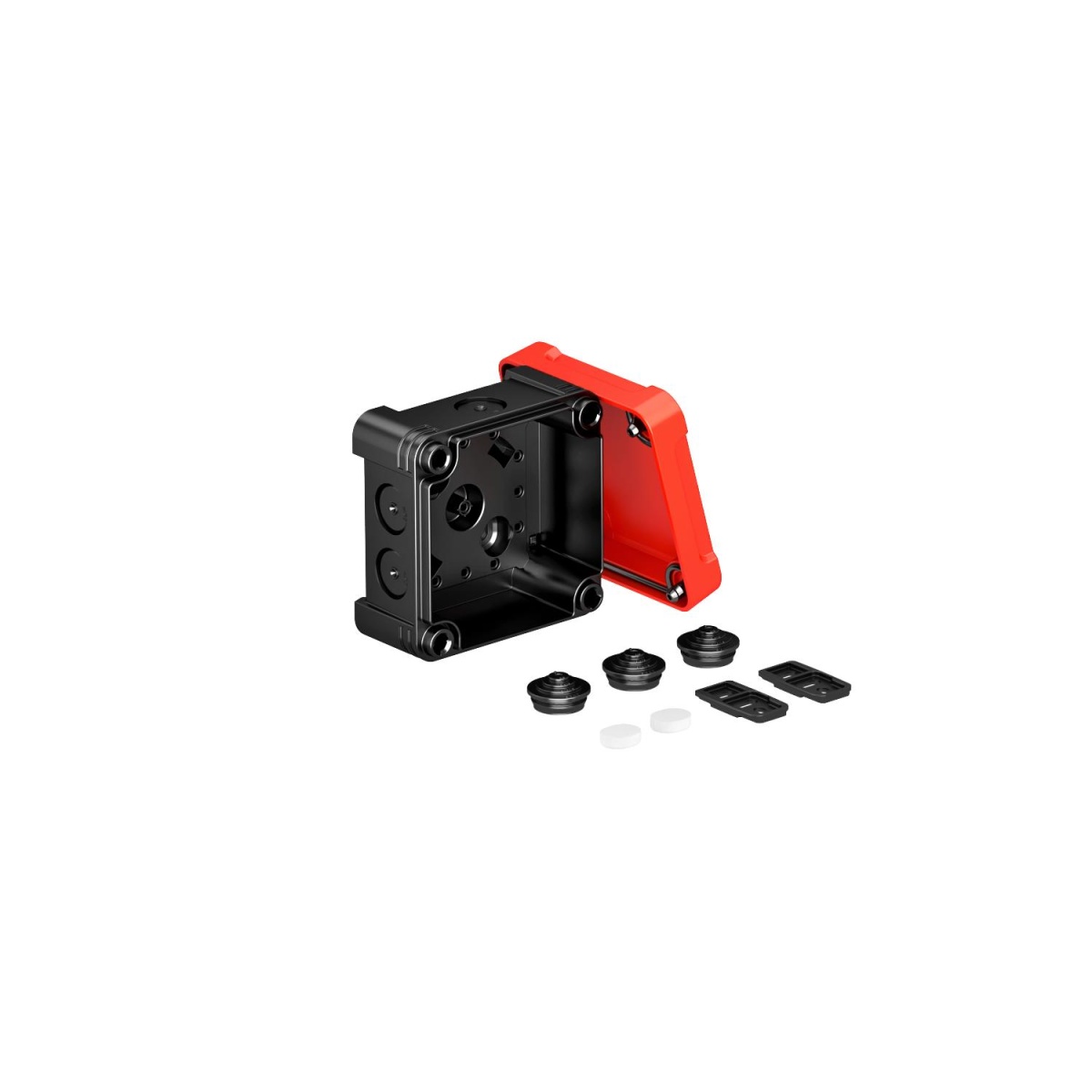

Caixa de derivação com tampa vermelha 95x95x60 Policarbonato pretovermelho
Accessories for Lighting
Caixa de derivação com tampa vermelha 95x95x60 Policarbonato pretovermelho
Manufacturer Ref:
2005140
Nortécnica Ref:
EAN:
4012196580545
Description
Technical Information
Attributes
Mounting method
Wall-/ceiling mounting
Colour
Black
Width
95
Model
-
Halogen free
Yes
Depth
60
Shape
Square
Surface protection
-
Diameter
-
Equipped with
None
Rated insulation voltage Ui
750
Length
95
Sealable
-
Circuit integrity
-
Operating temperature
-25
65
Material
Plastic
Number of inlets
7
Explosion-tested version
-
Cover attachment
Screwed
Max. conductor cross section
1.5
With screening
No
Weatherproof
Yes
Degree of protection IP
IP67
For tube diameter
-
Inlet from the rear
No
For Ex-zone gas
-
Connectable
Yes
Type of housing feed-through
Preembossing
For Ex-zone dust
-
Cover model
-
Castable
-
Casting compound included
-
Transparent cover
-
Degree of protection NEMA
-
Mounting in the soil
-
Mounting under water
-
Brands
80686
Technical Sheet
