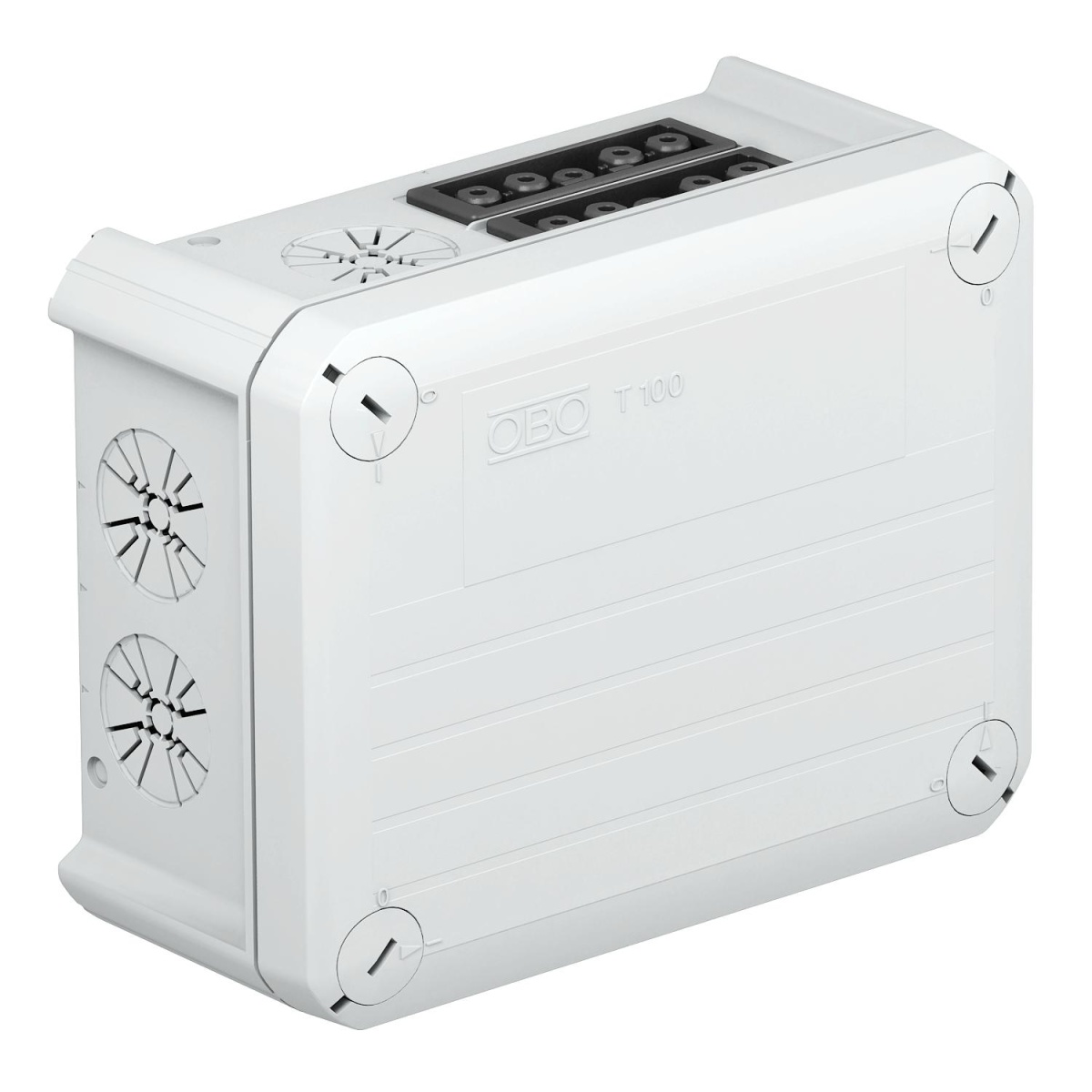

Caixa de derivação com tomadas Wieland 2s5p 150x116x67 Polipropileno cinzento claro RAL 7035
Accessories for Lighting
Caixa de derivação com tomadas Wieland 2s5p 150x116x67 Polipropileno cinzento claro RAL 7035
Manufacturer Ref:
2007852
Nortécnica Ref:
EAN:
4012195847540
Description
Technical Information
Attributes
Mounting method
Wall-/ceiling mounting
Colour
Grey
Width
116
Model
-
Halogen free
Yes
Depth
67
Shape
Rectangular
Surface protection
-
Diameter
-
Equipped with
Other
Rated insulation voltage Ui
500
Length
150
Sealable
-
Circuit integrity
None
Working temperature
-5
60
Material
Plastic
Number of inlets
4
Explosion-tested version
-
Cover attachment
Screwed
Max. conductor cross section
-
With screening
No
Weatherproof
No
EF005474
IP20
For tube diameter
-
Inlet from the rear
Yes
For Ex-zone gas
None
Connectable
Yes
Type of housing feed-through
Preembossing
For Ex-zone dust
None
Cover model
-
Castable
-
Casting compound included
-
Transparent cover
-
Degree of protection NEMA
-
Mounting in the soil
-
Mounting under water
-
Brands
OBO
Technical Sheet
