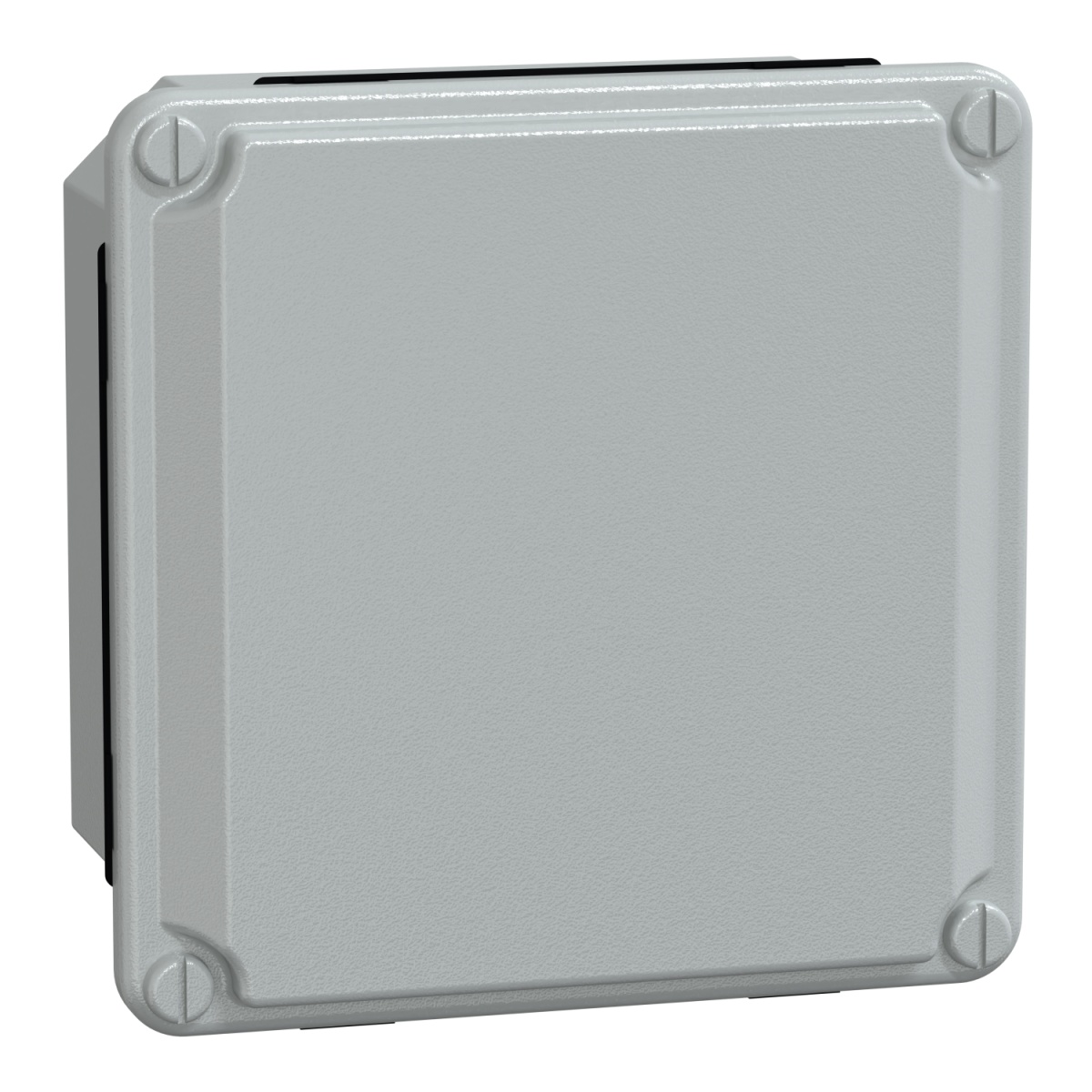

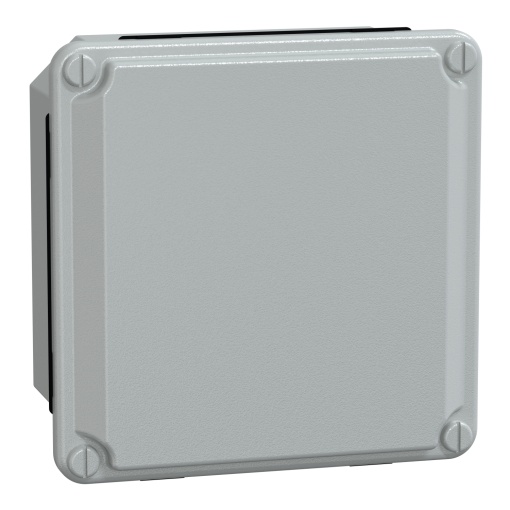

Caixa industrial de metal - cobertura básica baixa - H105xW105xD49 - IP55 - cinzento RAL 7035
Accessories for Lighting
Caixa industrial de metal - cobertura básica baixa - H105xW105xD49 - IP55 - cinzento RAL 7035
Manufacturer Ref:
NSYDBN1010
Nortécnica Ref:
53HNSYDBN1010
EAN:
3606480187834
Description
Technical Information
Attributes
Mounting method
Wall-/ceiling mounting
Colour
Grey
Width
105
Model
Junction box
Halogen free
-
Depth
49
Shape
Rectangular
Surface protection
Other
Diameter
-
Equipped with
None
Rated insulation voltage Ui
-
Length
105
Sealable
No
Circuit integrity
None
Working temperature
-
-
Material
Steel
Number of inlets
2
Explosion-tested version
No
Cover attachment
Screwed
Max. conductor cross section
25.5
With screening
No
Weatherproof
Yes
EF005474
IP55
For tube diameter
20/25 mm
Inlet from the rear
No
For Ex-zone gas
None
Connectable
No
Type of housing feed-through
None
For Ex-zone dust
None
Cover model
Blind cover
Castable
No
Casting compound included
No
Transparent cover
No
Degree of protection NEMA
13
Mounting in the soil
No
Mounting under water
No
Brands
Schneider
Technical Sheet
