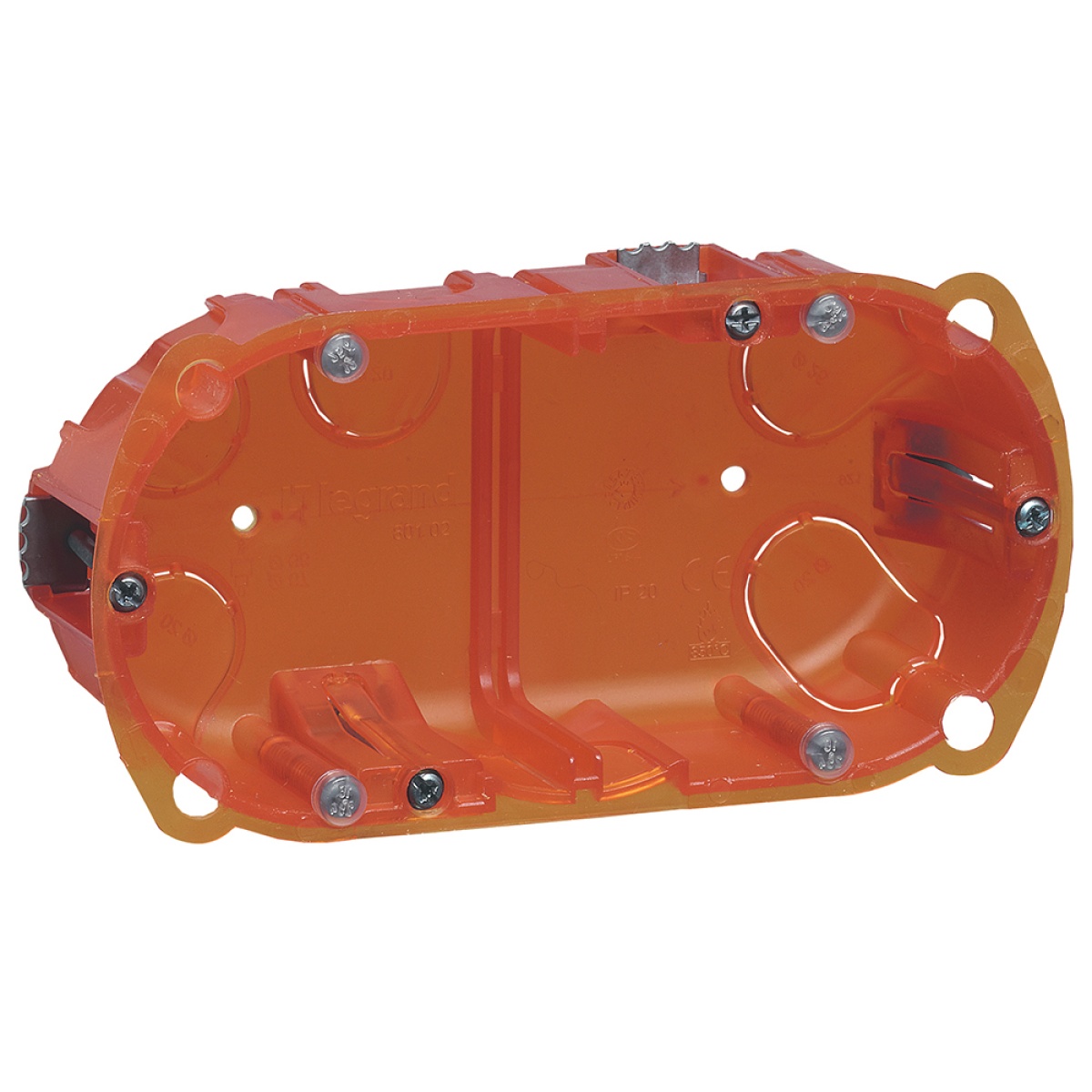

Sistema Batibox - Multimaterial - Caixa Dupla de encastrar - Prof. 50 mm
Accessories for Lighting
Sistema Batibox - Multimaterial - Caixa Dupla de encastrar - Prof. 50 mm
Manufacturer Ref:
080122
Nortécnica Ref:
03080122
EAN:
3245060801229
Description
Technical Information
Attributes
Mounting method
Other
Colour
Orange
Width
72
Model
Double
Halogen free
No
Shape
Oval
Surface protection
Untreated
Diameter
67
Equipped with
None
Construction type
Device connection box (round/square)
Inner depth
50
Couplable
No
Length
143
Sealable
No
Circuit integrity
None
Material
Plastic
Number of inlets
5
Mounting switching equipment
Screw or spread out
Cover attachment
Other
For number of device inserts
5
Luminaire hook mounting
No
Max. conductor cross section
-
With screening
No
With screws
Yes
Airtight
No
Depth
50
50
Suitable for cable diameter
20
25
Degree of protection IP
IP20
For tube diameter
20/25 mm
Inlet from the rear
Yes
Pipe locking
No
Special application
None
Clamp position fixed
No
With partition panel
Yes
Number of poles of the clamp
0
Nozzle
None
Provided with revolving ring
No
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
Yes
Housing feed-through by step membrane
No
Pipe locking optional
No
Number of included spouts
0
Cover model
None
Housing feed-through by break-out opening
Yes
Transparent cover
No
Degree of protection NEMA
-
Suitable for wallboard thickness
-
-
Number of non-adjustable device fixing lugs
0
Number of adjustable device fixing lugs
4
Compliant with BS 4662
-
Brands
Legrand
