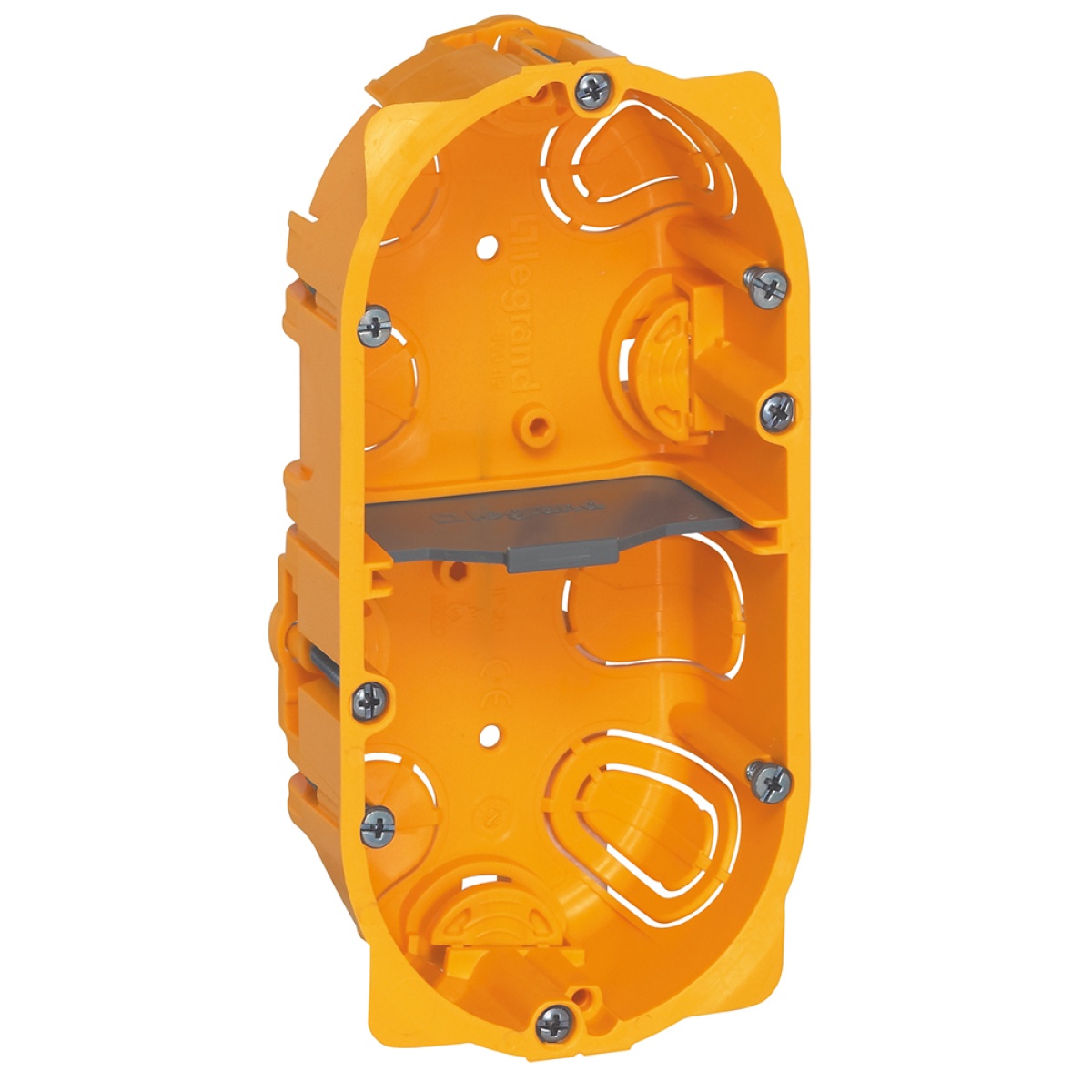

Sistema Batibox - Paredes ocas - Caixa Dupla - Profundidade 40 mm
Accessories for Lighting
Sistema Batibox - Paredes ocas - Caixa Dupla - Profundidade 40 mm
Manufacturer Ref:
080042
Nortécnica Ref:
03080042
EAN:
3245060800420
Description
Technical Information
Attributes
Mounting method
Hollow wall
Colour
Yellow
Width
72.8
Model
Double
Halogen free
Yes
Shape
Oval
Surface protection
Untreated
Diameter
67
Equipped with
None
Construction type
Device connection box (round/square)
Inner depth
40
Couplable
-
Length
142
Sealable
No
Circuit integrity
None
Material
Plastic
Number of inlets
6
Mounting switching equipment
Screw or spread out
Cover attachment
Other
For number of device inserts
5
Luminaire hook mounting
No
Max. conductor cross section
-
With screening
No
With screws
Yes
Airtight
No
Depth
-
-
Suitable for cable diameter
16
25
Degree of protection IP
IP20
For tube diameter
Other
Inlet from the rear
Yes
Pipe locking
No
Special application
-
Clamp position fixed
No
With partition panel
-
Number of poles of the clamp
0
Nozzle
None
Provided with revolving ring
-
Housing feed-through by seal membrane
-
Housing feed-through by nozzle
-
Housing feed-through by step membrane
-
Pipe locking optional
-
Number of included spouts
-
Cover model
None
Housing feed-through by break-out opening
-
Transparent cover
-
Degree of protection NEMA
-
Suitable for wallboard thickness
-
-
Number of non-adjustable device fixing lugs
-
Number of adjustable device fixing lugs
-
Compliant with BS 4662
-
Brands
Legrand
