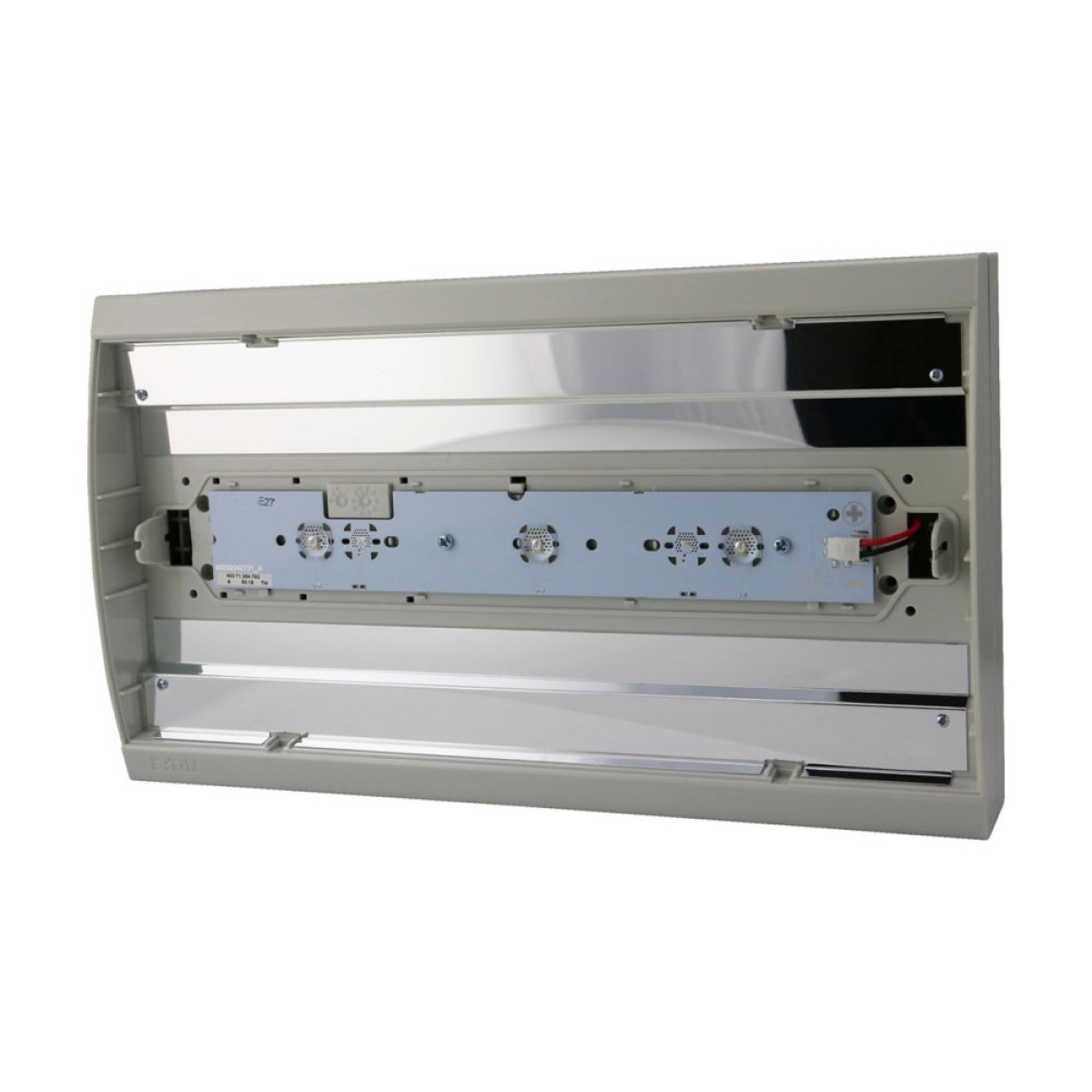

28011 1-8hD LED CGLine
Emergency
28011 1-8hD LED CGLine
Manufacturer Ref:
40071354815
Nortécnica Ref:
EAN:
4012539345312
Description
Technical Information
Attributes
Mounting method
-
Protection class according to IEC 61140
II
Largura
200
Diâmetro externo
350
Function
Escape route signage
Lamp holder
Other
Secção transversal do condutor
2.5
Connection type
Plug-in connection
Housing colour
Grey
Voltage type
AC
EF000233
EV009693
Type of control gear
LED operating device current-controlled
With remote control
No
Largura para embutir
110
Built-in diameter
-
Suitable for labelling type
Insert sheet/plate
Type of indicator
-
Número de polos
6
Comprimento
342
Alturaprofundidade
68
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
1
Comprimento para embutir
220
Material cover
Plastic, opal
Impact strength
IK03
Battery technology
Lithium-ion
Nominal voltage
220
240
Degree of protection IP
IP41
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
-
With remote switch connection
Yes
EF008091
EV010144
Recognition distance
32
Nominal current
-
Colour temperature
-
Potência máx. do sistema
6.6
EF009349
-
Constant light output CLO
No
With pictogram
No
Type of wiring
Suitable for loop-through wiring
Vida útil nominal L70B50 a 25 C
50000
Luminous flux in standby mode
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
5
35
Light distributor
Diffuser lens/optic/panel
RAL-number housing
-
Nominal operation time
1
8
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
No
Suitable for continuous circuit
No
Alturaprofundidade para embutir
-
Fator de potência
0.93
