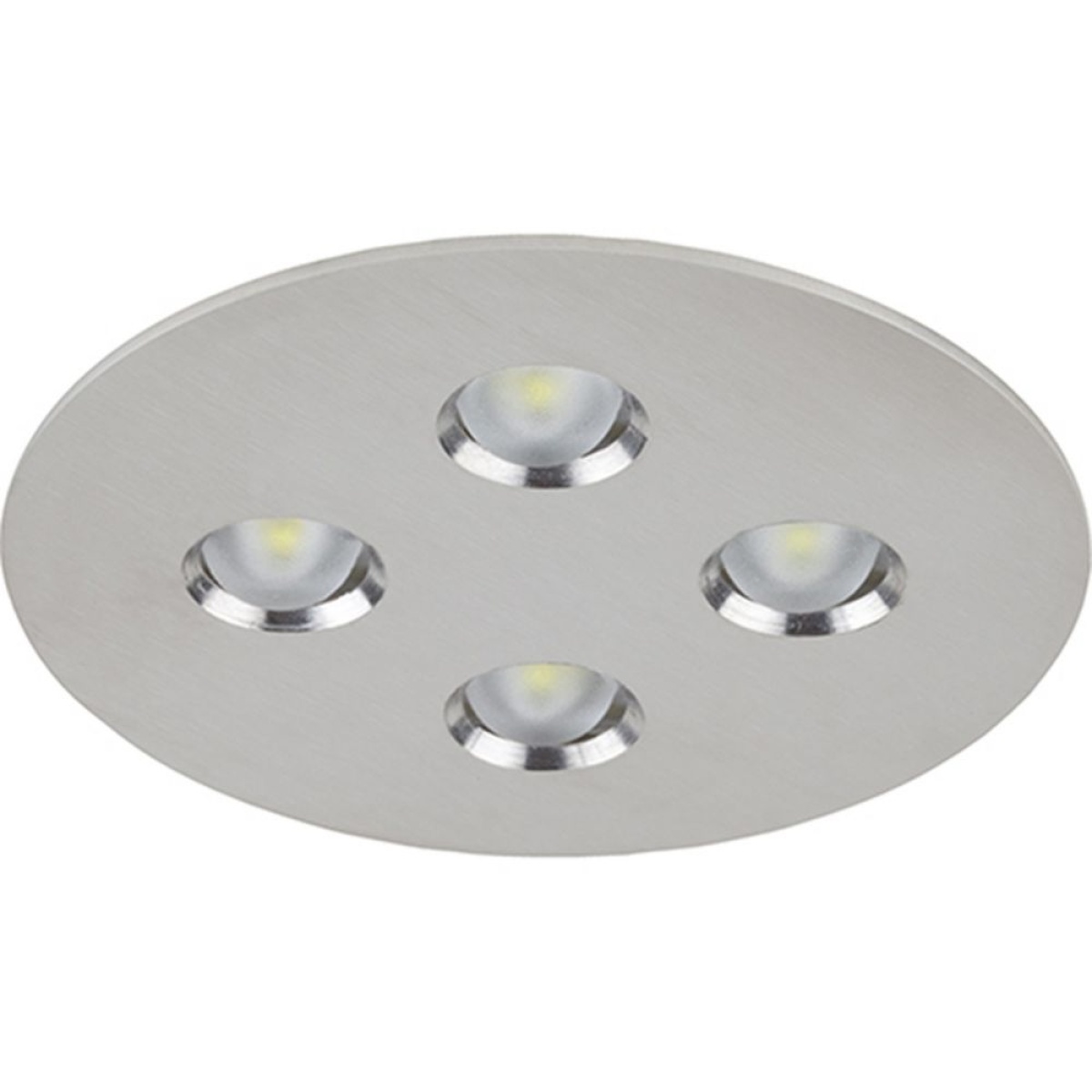

3504.1 LED CG-S rund chrom
Emergency
3504.1 LED CG-S rund chrom
Manufacturer Ref:
40071352904
Nortécnica Ref:
EAN:
4012539323105
Description
Technical Information
Attributes
Mounting method
Built-in
Protection class according to IEC 61140
II
Largura
35
Diâmetro externo
80
Function
Escape route signage
Lamp holder
None
Secção transversal do condutor
2.5
Connection type
Plug-in connection
Housing colour
Stainless steel
Voltage type
DC
EF000233
EV010184
Type of control gear
LED operating device current-controlled
With remote control
No
Largura para embutir
-
Built-in diameter
68
Suitable for labelling type
-
Type of indicator
-
Número de polos
3
Comprimento
201
Alturaprofundidade
28
Housing material
Stainless steel
Lamp type
LED not exchangeable
Number of lighting heads
-
Comprimento para embutir
-
Material cover
Without cover
Impact strength
IK03
Battery technology
-
Nominal voltage
220
220
Degree of protection IP
IP20
With light source
No
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
-
With remote switch connection
No
EF008091
EV010144
Recognition distance
-
Nominal current
-
Colour temperature
5700
5700
Potência máx. do sistema
5.8
EF009349
-
Constant light output CLO
No
With pictogram
No
Type of wiring
Loop-through wiring included
Vida útil nominal L70B50 a 25 C
-
Luminous flux in standby mode
620
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-10
40
Light distributor
Focal lens
RAL-number housing
-
Nominal operation time
-
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
A
Suitable for standby switching
No
Suitable for continuous circuit
No
Alturaprofundidade para embutir
30
Fator de potência
0.7
