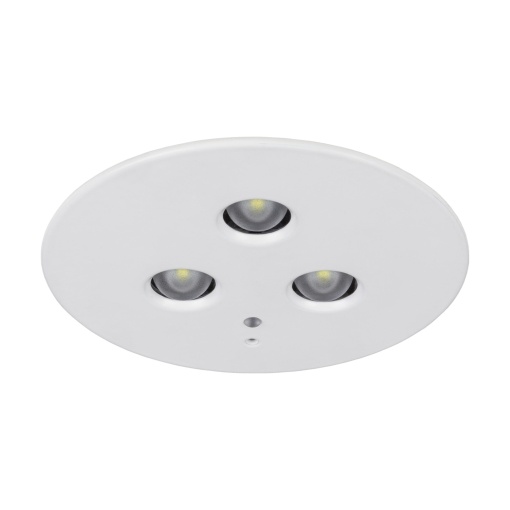

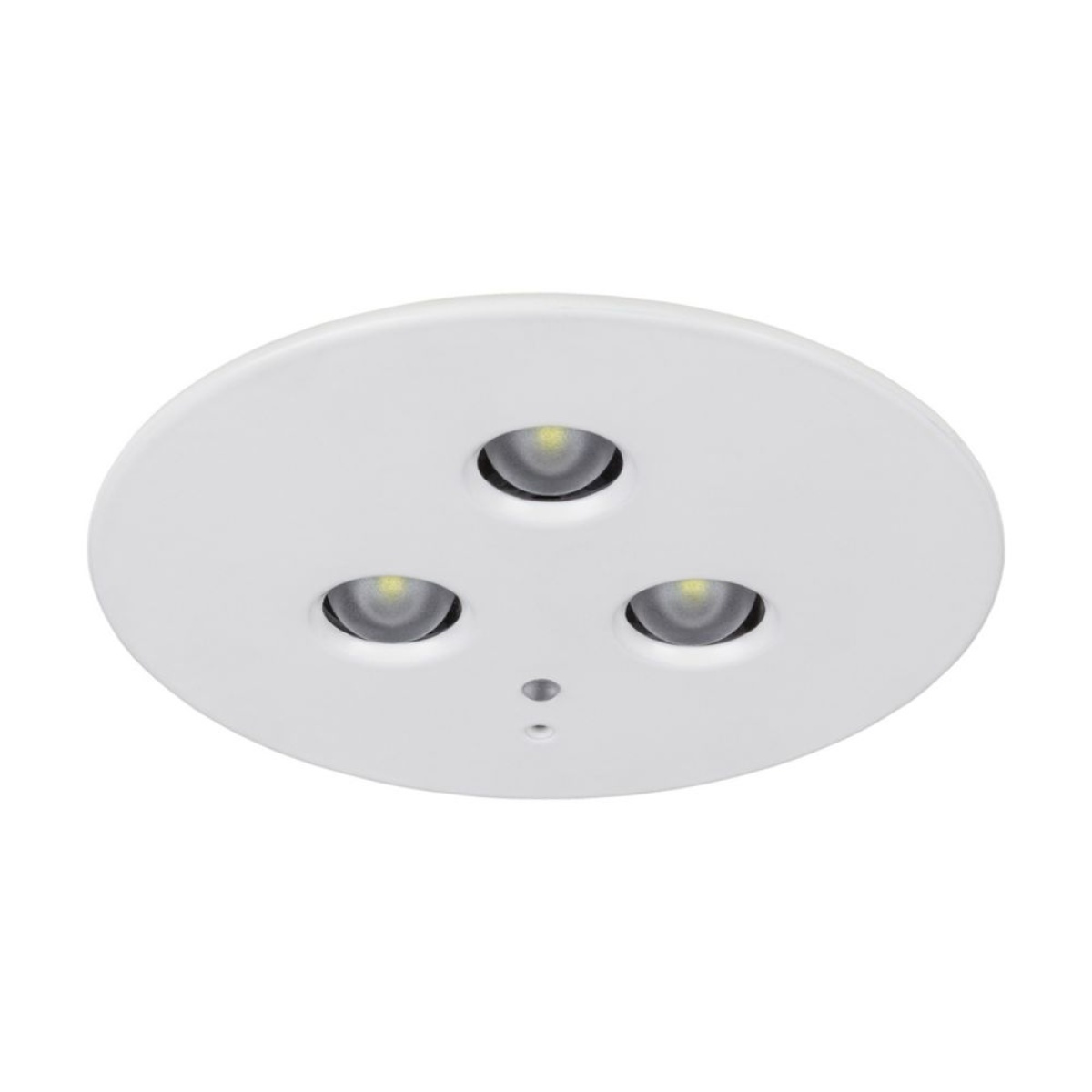

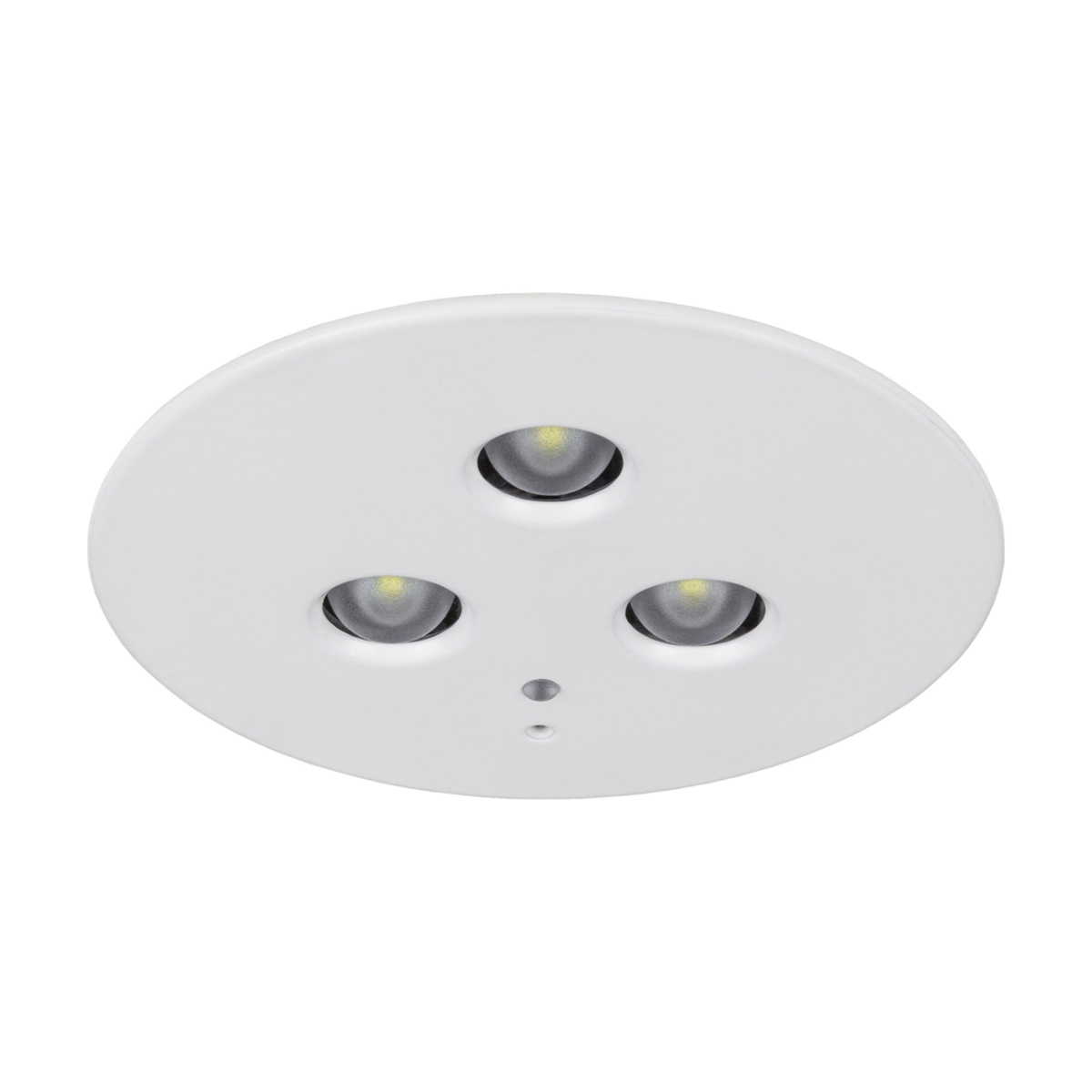

3583 1-8hD LED CGLine
Emergency
3583 1-8hD LED CGLine
Manufacturer Ref:
40071353365
Nortécnica Ref:
EAN:
4012539344544
Description
Technical Information
Attributes
Mounting method
Built-in
EF000004
II
Width
80
Outer diameter
80
Function
Escape route lighting
Lamp holder
Other
Conductor cross section
2.5
Connection type
Plug-in connection
Housing colour
Aluminium
Voltage type
AC
EF000233
EV009693
Type of control gear
LED operating device current-controlled
With remote control
No
Built-in width
-
Built-in diameter
80
Suitable for labelling type
Other
Type of indicator
-
Number of poles
6
Length
500
Heightdepth
80
Housing material
Aluminium
Lamp type
LED not exchangeable
Number of lighting heads
1
Built-in length
-
Material cover
Other
Impact strength
IK03
Battery technology
Lithium-ion
Nominal voltage
220
240
Degree of protection IP
IP20
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Suitable for number of light sources
-
With remote switch connection
Yes
EF008091
EV010144
Recognition distance
-
Nominal current
-
Colour temperature
6500
6500
Max. system power
6.6
EF009349
385
Constant light output CLO
No
With pictogram
No
Type of wiring
Suitable for loop-through wiring
Rated lifetime L70B50 at 25 C
50000
Luminous flux in standby mode
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
0
30
Light distributor
Focal lens
RAL-number housing
-
Nominal operation time
1
8
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
No
Suitable for continuous circuit
No
Built-in heightdepth
3
Power factor
0.93
