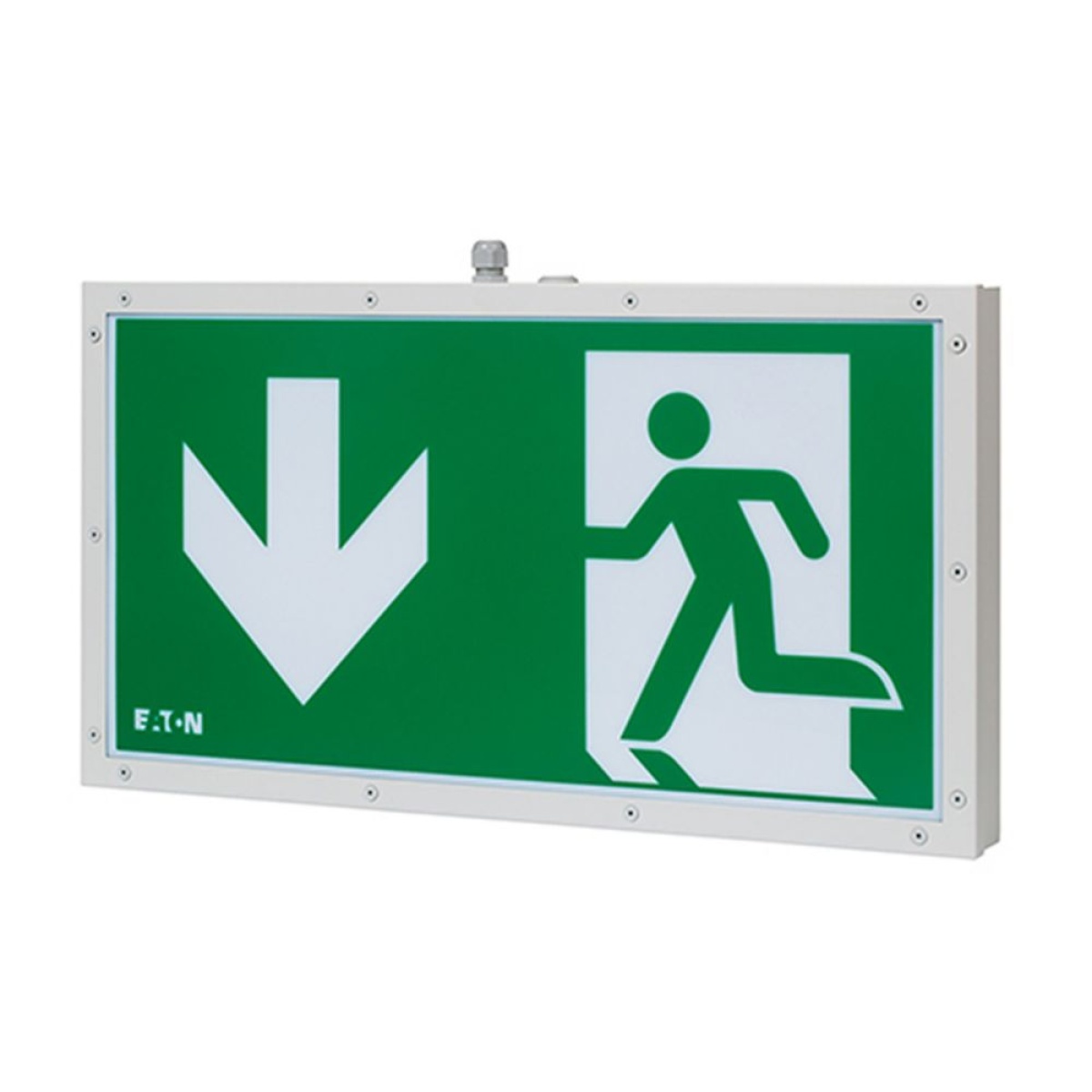

46011 LED HYG CG-S
Emergency
46011 LED HYG CG-S
Manufacturer Ref:
40071351578
Nortécnica Ref:
EAN:
4012539349815
Description
Technical Information
Attributes
Mounting method
Wall surface mounted
Protection class according to IEC 61140
I
Largura
61
Diâmetro externo
-
Function
Escape route signage
Lamp holder
None
Secção transversal do condutor
2.5
Connection type
Plug-in connection
Housing colour
White
Voltage type
DC
EF000233
EV010184
Type of control gear
LED operating device current-controlled
With remote control
No
Largura para embutir
-
Built-in diameter
-
Suitable for labelling type
Acrylic plate
Type of indicator
-
Número de polos
3
Comprimento
654
Alturaprofundidade
354
Housing material
Steel
Lamp type
LED not exchangeable
Number of lighting heads
-
Comprimento para embutir
-
Material cover
Without cover
Impact strength
IK03
Battery technology
-
Nominal voltage
220
220
Degree of protection IP
IP65
With light source
No
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
-
With remote switch connection
No
EF008091
EV010144
Recognition distance
-
Nominal current
-
Colour temperature
-
Potência máx. do sistema
10.5
EF009349
-
Constant light output CLO
No
With pictogram
No
Type of wiring
Suitable for loop-through wiring
Vida útil nominal L70B50 a 25 C
-
Luminous flux in standby mode
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-10
40
Light distributor
Diffuser lens/optic/panel
RAL-number housing
9010
Nominal operation time
-
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
A
Suitable for standby switching
No
Suitable for continuous circuit
No
Alturaprofundidade para embutir
-
Fator de potência
0.9
