Emergency

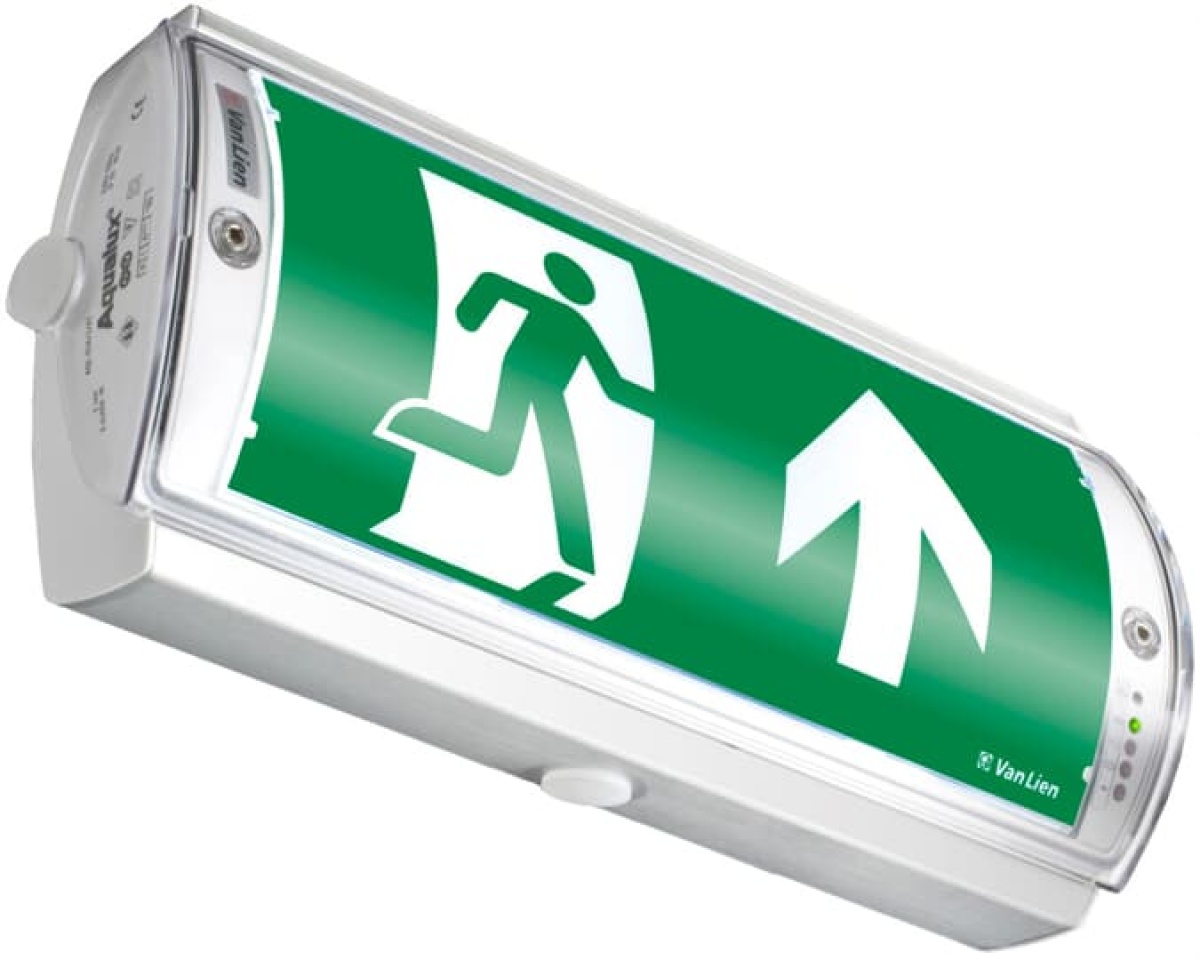

AQL 02A1ZTLED

Manufacturer Ref: 7TCA091160R0165

Nortécnica Ref:

EAN: 8713812745411

Login to see prices and stocks

Description

AQL 02A1ZTLED

Technical Information

Attributes

Mounting method

Wall surface mountingceiling surface mounting

EF000004

II

Width

170

Outer diameter

-

Function

Escape route signage

Lamp holder

-

Conductor cross section

2.5

Connection type

Screw connection

Housing colour

Aluminium

Voltage type

AC

EF000233

EV009693

Type of control gear

LED operating device currentcontrolled

With remote control

No

Built-in width

-

Built-in diameter

-

Suitable for labelling type

Insert sheetplate

Type of indicator

Singlesided

Number of poles

4

Length

381

Heightdepth

75

Housing material

Plastic

Lamp type

LED not exchangeable

Number of lighting heads

1

Built-in length

-

Material cover

Plastic transparent

Impact strength

IK10

Battery technology

NiCd

Nominal voltage

220

230

Degree of protection IP

IP65

With light source

Yes

Luminaire with limited surface temperature, sign "D according to EN 60598-2-24

-

Suitable for number of light sources

2

With remote switch connection

No

EF008091

EV009635

Recognition distance

25

Nominal current

-

-

Colour temperature

6350

6350

Max. system power

5.1

EF009349

89

Constant light output CLO

No

With pictogram

Yes

Type of wiring

Suitable for loopthrough wiring

Rated lifetime L70B50 at 25 C

-

Luminous flux in standby mode

-

Degree of protection NEMA

-

Rated ambient temperature according to IEC 62722-2-1

0

35

Light distributor

Diffuser lensopticpanel

RAL-number housing

-

Nominal operation time

1

1

Max. number of luminaires per miniature circuit breaker C16 MCB

-

Max. number of luminaires per miniature circuit breaker B16 MCB

-

Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq

-

Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq

-

Failure rate at median useful life of 50,000 h at 25 C ambient tq

-

Failure rate at median useful life of 100,000 h at 25 C ambient tq

-

Flickering value Pst LM

-

Stroboscope effect value SVM

-

Exchangeable control gear

Yes

Energy efficiency class of the light source according to EU regulation 20192015

-

Suitable for standby switching

-

Suitable for continuous circuit

-

Built-in heightdepth

-

Power factor

0.52

Brands

VAN LIEN

Technical Sheet
