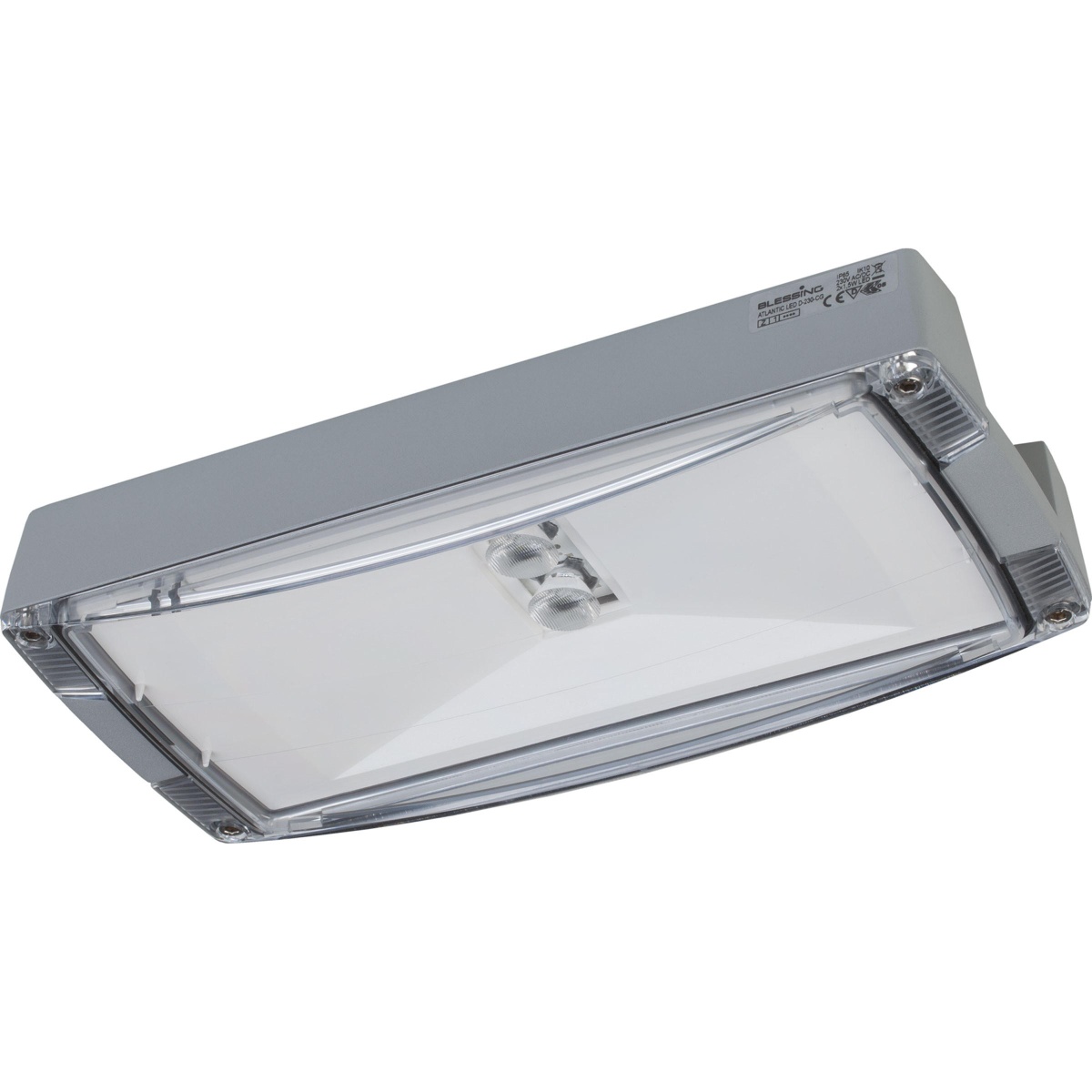

atlantic LED LT R HB CG-S
Emergency
atlantic LED LT R HB CG-S
Manufacturer Ref:
40071354868
Nortécnica Ref:
EAN:
4012539348955
Description
Technical Information
Attributes
Mounting method
Ceiling surface mounting
Protection class according to IEC 61140
I
Largura
136
Diâmetro externo
-
Function
Escape route lighting
Lamp holder
None
Secção transversal do condutor
2.5
Connection type
Screw connection
Housing colour
Grey
Voltage type
DC
EF000233
EV010184
Type of control gear
LED operating device current-controlled
With remote control
No
Largura para embutir
-
Built-in diameter
-
Suitable for labelling type
-
Type of indicator
-
Número de polos
3
Comprimento
303
Alturaprofundidade
62
Housing material
Aluminium
Lamp type
LED not exchangeable
Number of lighting heads
-
Comprimento para embutir
-
Material cover
Plastic, transparent
Impact strength
IK10
Battery technology
-
Nominal voltage
220
220
Degree of protection IP
IP65
With light source
No
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
-
With remote switch connection
No
EF008091
EV010144
Recognition distance
-
Nominal current
-
Colour temperature
6500
6500
Potência máx. do sistema
4.65
EF009349
-
Constant light output CLO
No
With pictogram
No
Type of wiring
Loop-through wiring included
Vida útil nominal L70B50 a 25 C
-
Luminous flux in standby mode
225
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-40
40
Light distributor
Focal lens
RAL-number housing
7001
Nominal operation time
-
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
A
Suitable for standby switching
No
Suitable for continuous circuit
No
Alturaprofundidade para embutir
-
Fator de potência
0.77
