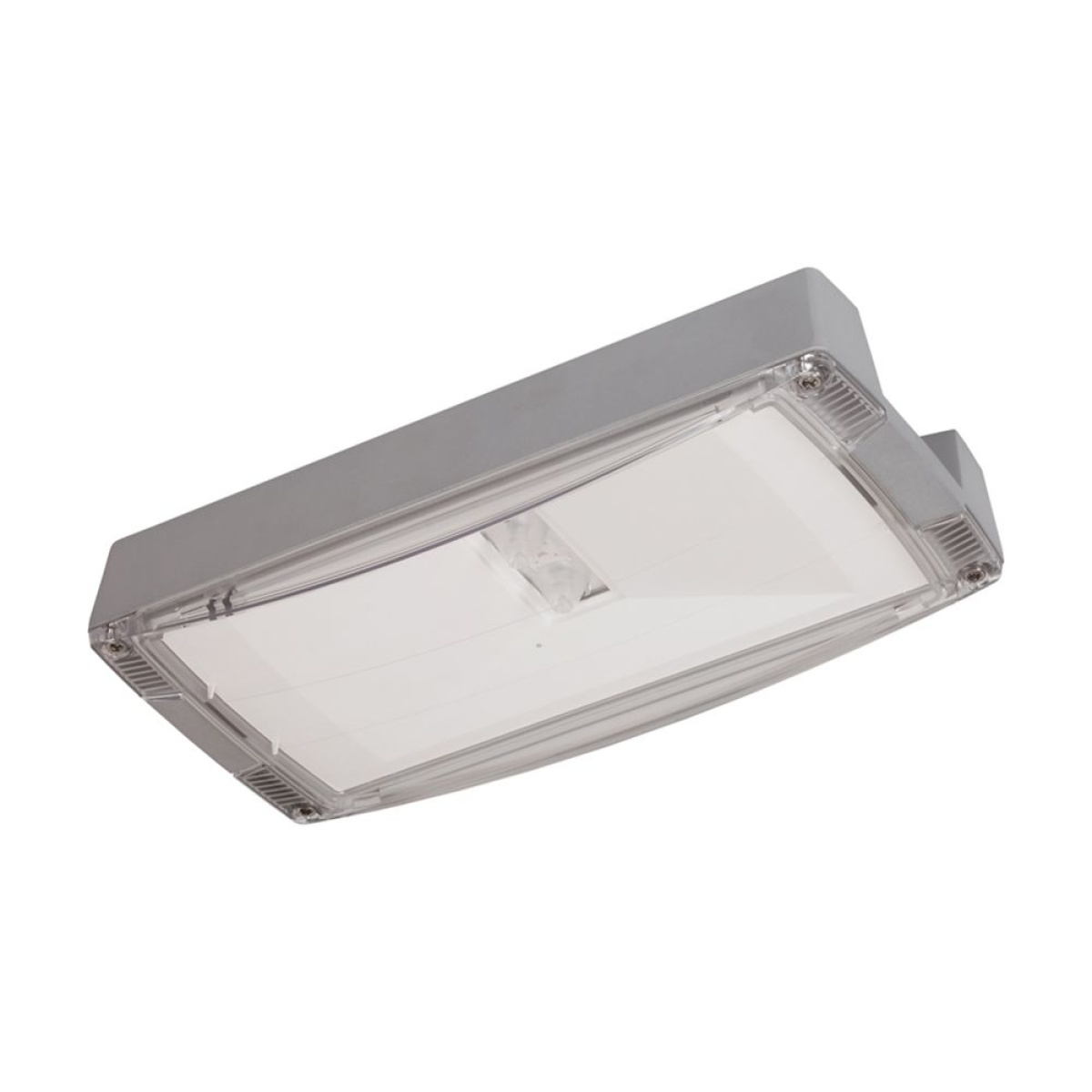

Atlantic LED O 1-8hD CGLine
Emergency
Atlantic LED O 1-8hD CGLine
Manufacturer Ref:
40071354873
Nortécnica Ref:
EAN:
4012539344476
Description
Technical Information
Attributes
Mounting method
-
Protection class according to IEC 61140
I
Largura
135
Diâmetro externo
-
Function
Escape route lighting
Lamp holder
Other
Secção transversal do condutor
2.5
Connection type
Plug-in connection
Housing colour
Grey
Voltage type
AC
EF000233
EV009693
Type of control gear
LED operating device current-controlled
With remote control
No
Largura para embutir
-
Built-in diameter
-
Suitable for labelling type
Other
Type of indicator
-
Número de polos
6
Comprimento
303
Alturaprofundidade
62
Housing material
Aluminium
Lamp type
LED not exchangeable
Number of lighting heads
1
Comprimento para embutir
-
Material cover
Plastic, transparent
Impact strength
IK10
Battery technology
Lithium-ion
Nominal voltage
220
240
Degree of protection IP
IP65
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
Yes
Adequado para número de lâmpadas
-
With remote switch connection
Yes
EF008091
EV010144
Recognition distance
24
Nominal current
-
Colour temperature
6500
6500
Potência máx. do sistema
-
EF009349
225
Constant light output CLO
No
With pictogram
No
Type of wiring
Suitable for loop-through wiring
Vida útil nominal L70B50 a 25 C
13.888888888888806
Luminous flux in standby mode
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-
Light distributor
Focal lens
RAL-number housing
-
Nominal operation time
1
8
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
No
Suitable for continuous circuit
No
Alturaprofundidade para embutir
-
Fator de potência
0.91
