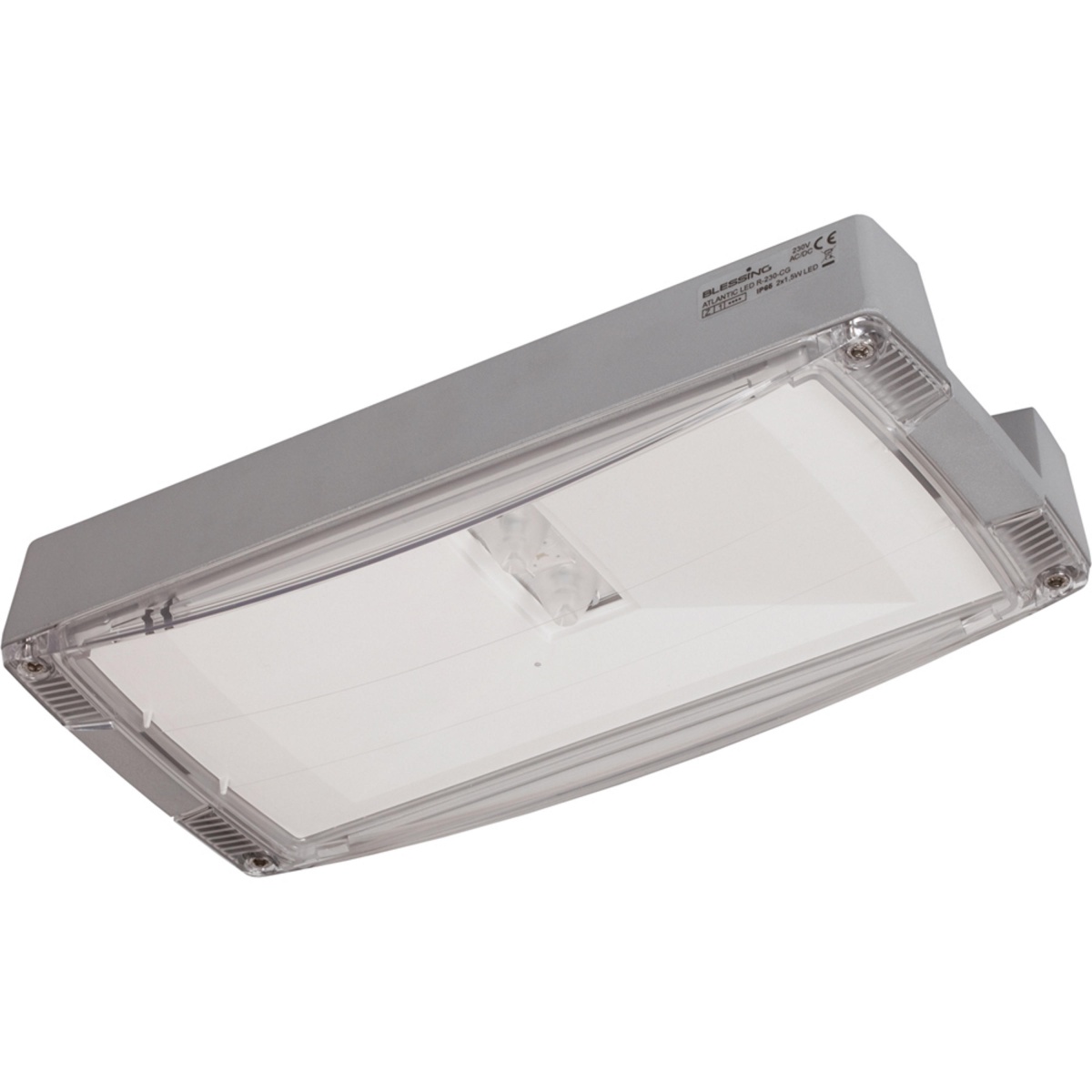

Atlantic LED O CG-S
Emergency
Atlantic LED O CG-S
Manufacturer Ref:
40071354893
Nortécnica Ref:
EAN:
4012539346746
Description
Technical Information
Attributes
Mounting method
Ceiling surface mounting
EF000004
I
Width
136
Outer diameter
-
Function
Escape route lighting
Lamp holder
None
Conductor cross section
2.5
Connection type
Screw connection
Housing colour
Grey
Voltage type
DC
EF000233
EV010184
Type of control gear
LED operating device voltage-controlled
With remote control
No
Built-in width
-
Built-in diameter
-
Suitable for labelling type
-
Type of indicator
-
Number of poles
3
Length
303
Heightdepth
62
Housing material
Aluminium
Lamp type
LED not exchangeable
Number of lighting heads
-
Built-in length
-
Material cover
Plastic, transparent
Impact strength
IK10
Battery technology
-
Nominal voltage
220
240
Degree of protection IP
IP65
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
Yes
Suitable for number of light sources
-
With remote switch connection
Yes
EF008091
EV010144
Recognition distance
24
Nominal current
-
Colour temperature
6500
6500
Max. system power
5
EF009349
220
Constant light output CLO
No
With pictogram
No
Type of wiring
Suitable for loop-through wiring
Rated lifetime L70B50 at 25 C
-
Luminous flux in standby mode
220
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-20
40
Light distributor
Focal lens
RAL-number housing
7001
Nominal operation time
-
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
A
Suitable for standby switching
No
Suitable for continuous circuit
No
Built-in heightdepth
-
Power factor
0.59
