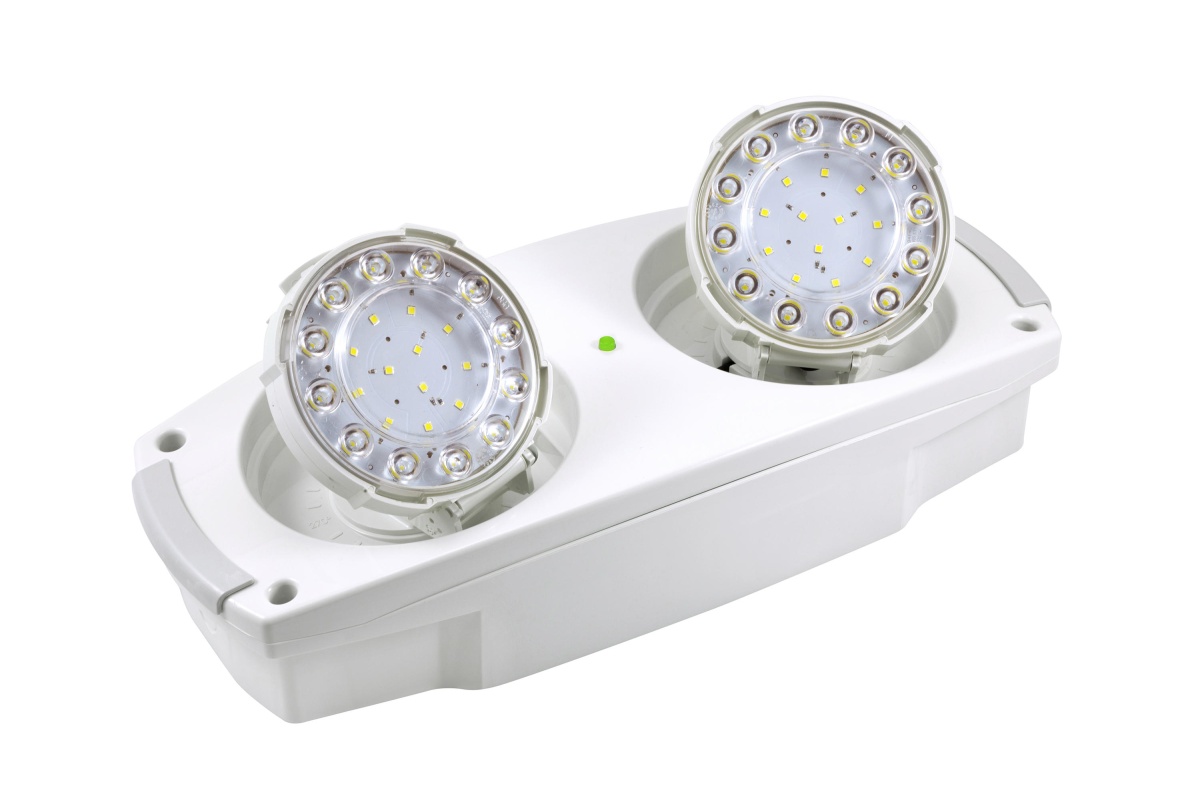

BeamLite II 2x400lm 1h
Emergency
BeamLite II 2x400lm 1h
Manufacturer Ref:
BL2MD-E1
Nortécnica Ref:
EAN:
5205050909203
Description
Technical Information
Attributes
Mounting method
-
EF000004
II
Width
178
Outer diameter
-
Function
Escape route lighting
Lamp holder
None
Conductor cross section
1.5
Connection type
Plug-in connection
Housing colour
White
Voltage type
AC
EF000233
EV009693
Type of control gear
LED operating device current-controlled
With remote control
No
Built-in width
-
Built-in diameter
-
Suitable for labelling type
Other
Type of indicator
-
Number of poles
3
Length
417
Heightdepth
106
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
2
Built-in length
-
Material cover
Plastic, transparent
Impact strength
IK07
Battery technology
NiCd
Nominal voltage
220
240
Degree of protection IP
IP65
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Suitable for number of light sources
2
With remote switch connection
Yes
EF008091
EV000494
Recognition distance
-
Nominal current
-
Colour temperature
-
Max. system power
2.4
EF009349
800
Constant light output CLO
No
With pictogram
No
Type of wiring
Suitable for loop-through wiring
Rated lifetime L70B50 at 25 C
-
Luminous flux in standby mode
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
5
40
Light distributor
Refractor lens
RAL-number housing
-
Nominal operation time
1
1
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
No
Suitable for continuous circuit
No
Built-in heightdepth
-
Power factor
0.8
