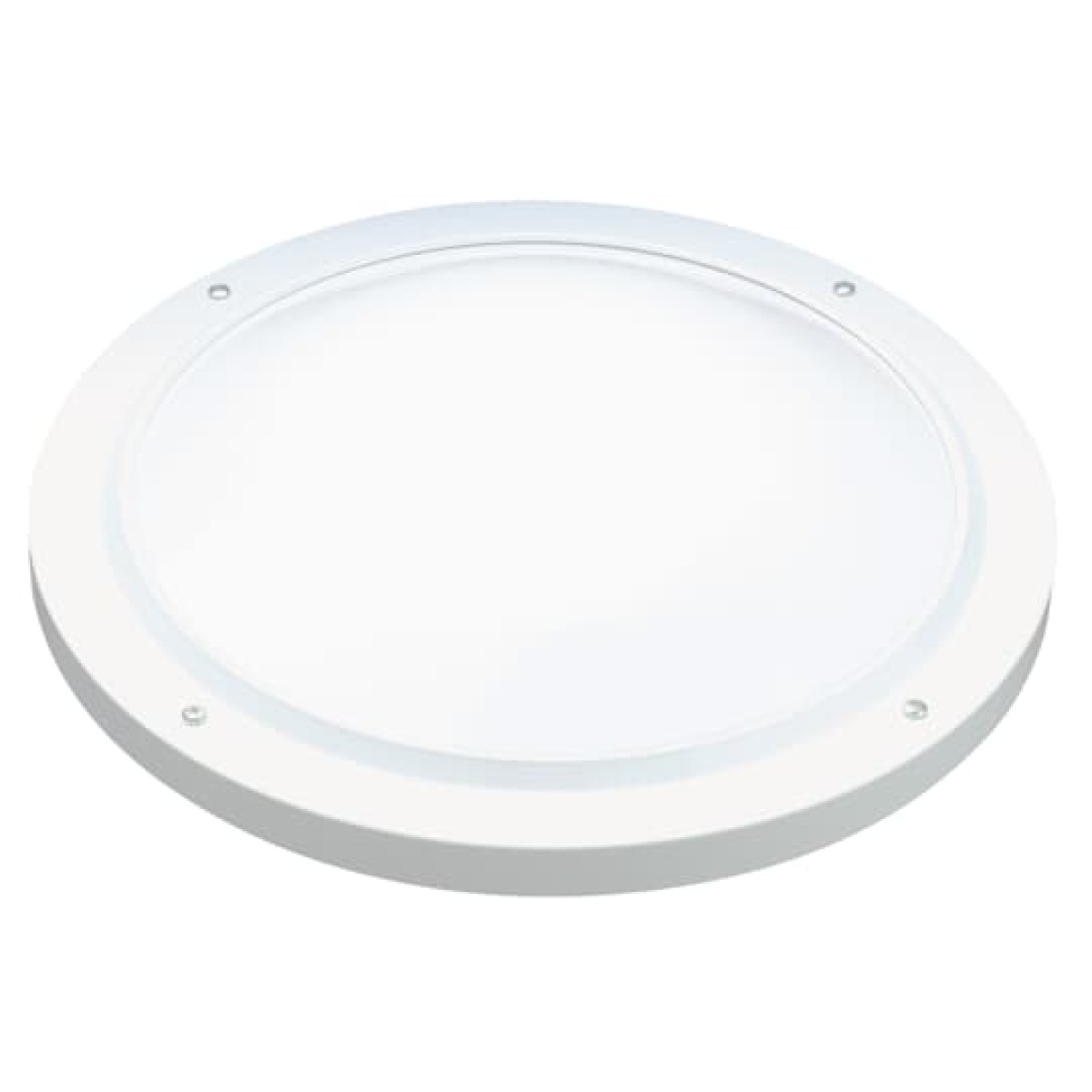

CLQ LED 2D WHOPAL HF
Emergency
CLQ LED 2D WHOPAL HF
Manufacturer Ref:
7TCA091130R0542
Nortécnica Ref:
EAN:
5415022465532
Description
Technical Information
Attributes
Mounting method
Wall surface mounting/ceiling surface mounting
Protection class according to IEC 61140
I
Largura
348
Diâmetro externo
-
Function
Escape route lighting
Lamp holder
-
Secção transversal do condutor
2.5
Connection type
-
Housing colour
White
Voltage type
AC/DC
EF000233
EV010184
Type of control gear
LED operating device current-controlled
With remote control
-
Largura para embutir
-
Built-in diameter
-
Suitable for labelling type
-
Type of indicator
-
Número de polos
3
Comprimento
348
Alturaprofundidade
122
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
1
Comprimento para embutir
-
Material cover
Plastic, opal
Impact strength
-
Battery technology
-
Nominal voltage
110
230
Degree of protection IP
IP20
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
-
Adequado para número de lâmpadas
-
With remote switch connection
No
EF008091
-
Recognition distance
-
Nominal current
-
-
Colour temperature
4000
4000
Potência máx. do sistema
19.5
EF009349
-
Constant light output CLO
-
With pictogram
-
Type of wiring
Ending
Vida útil nominal L70B50 a 25 C
-
Luminous flux in standby mode
1830
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-
-
Light distributor
Diffuser lens/optic/panel
RAL-number housing
-
Nominal operation time
-
-
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Exchangeable control gear
-
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
-
Suitable for continuous circuit
-
Alturaprofundidade para embutir
-
Fator de potência
0.93
Brands
ABB
