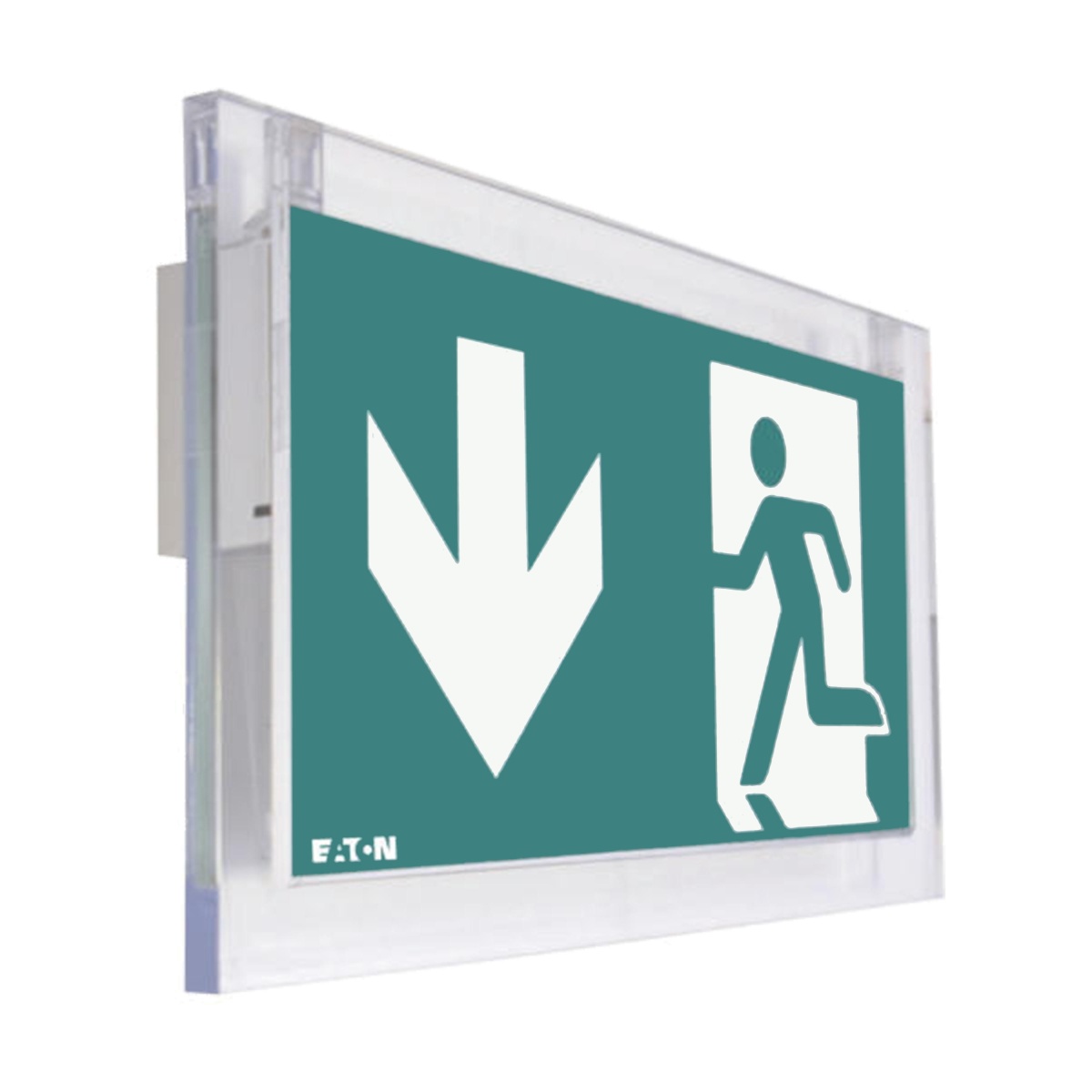

CrystalWay 20m CGLine
Emergency
CrystalWay 20m CGLine
Manufacturer Ref:
LUM17122
Nortécnica Ref:
EAN:
3660191171223
Description
Technical Information
Attributes
Mounting method
-
EF000004
II
Width
47
Outer diameter
-
Function
Escape route signage
Lamp holder
None
Conductor cross section
2.5
Connection type
Plug-in connection
Housing colour
White
Voltage type
AC
EF000233
EV009693
Type of control gear
LED operating device current-controlled
With remote control
No
Built-in width
47
Built-in diameter
-
Suitable for labelling type
Insert sheet/plate
Type of indicator
Single/double-sided
Number of poles
2
Length
231
Heightdepth
133
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
24
Built-in length
202
Material cover
Plastic, transparent
Impact strength
IK04
Battery technology
Lithium-ion
Nominal voltage
230
230
Degree of protection IP
IP42
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Suitable for number of light sources
1
With remote switch connection
Yes
EF008091
EV010144
Recognition distance
20
Nominal current
11
11
Colour temperature
6500
6500
Max. system power
2.5
EF009349
60
Constant light output CLO
No
With pictogram
Yes
Type of wiring
Loop-through wiring included
Rated lifetime L70B50 at 25 C
100000
Luminous flux in standby mode
3
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
5
40
Light distributor
Diffuser lens/optic/panel
RAL-number housing
-
Nominal operation time
1
8
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
No
Suitable for continuous circuit
No
Built-in heightdepth
155
Power factor
0.7
