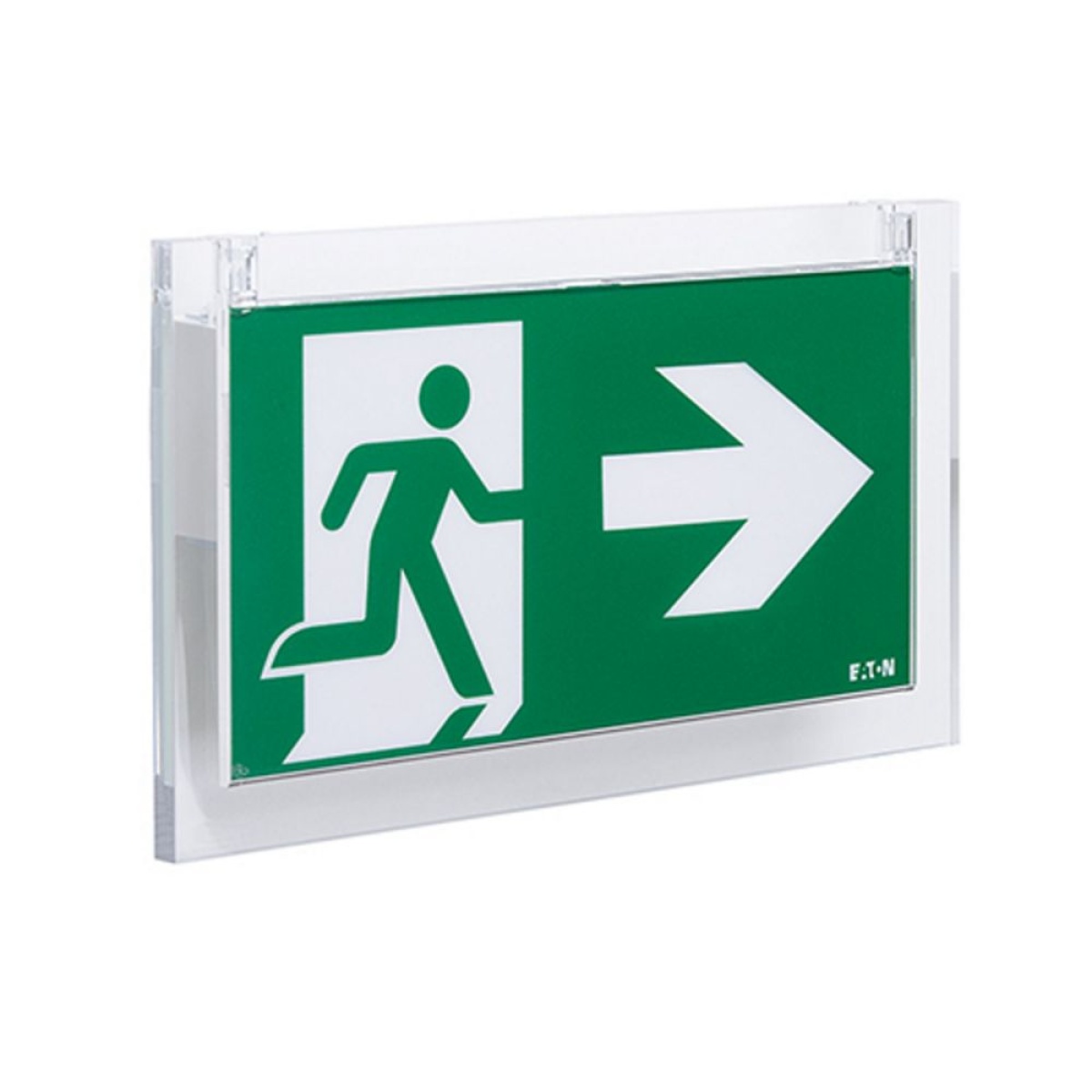

CrystalWay 20m DALI L,R,D,U
Emergency
CrystalWay 20m DALI L,R,D,U
Manufacturer Ref:
LUM17122U-DT
Nortécnica Ref:
EAN:
3660191806255
Description
Technical Information
Attributes
Mounting method
-
Protection class according to IEC 61140
II
Largura
30
Diâmetro externo
-
Function
Escape route signage
Lamp holder
None
Secção transversal do condutor
2.5
Connection type
Connection cable systemplug
Housing colour
White
Voltage type
AC
EF000233
EV009693
Type of control gear
-
With remote control
No
Largura para embutir
81
Built-in diameter
-
Suitable for labelling type
Acrylic plate
Type of indicator
-
Número de polos
2
Comprimento
231
Alturaprofundidade
133
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
28
Comprimento para embutir
265
Material cover
Plastic, transparent
Impact strength
IK04
Battery technology
Lithium-ion
Nominal voltage
230
230
Degree of protection IP
IP42
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
-
With remote switch connection
Yes
EF008091
EV010144
Recognition distance
20
Nominal current
-
Colour temperature
6500
6500
Potência máx. do sistema
2.5
EF009349
-
Constant light output CLO
No
With pictogram
Yes
Type of wiring
-
Vida útil nominal L70B50 a 25 C
-
Luminous flux in standby mode
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-
Light distributor
-
RAL-number housing
-
Nominal operation time
-
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
No
Suitable for continuous circuit
No
Alturaprofundidade para embutir
75
Fator de potência
-
