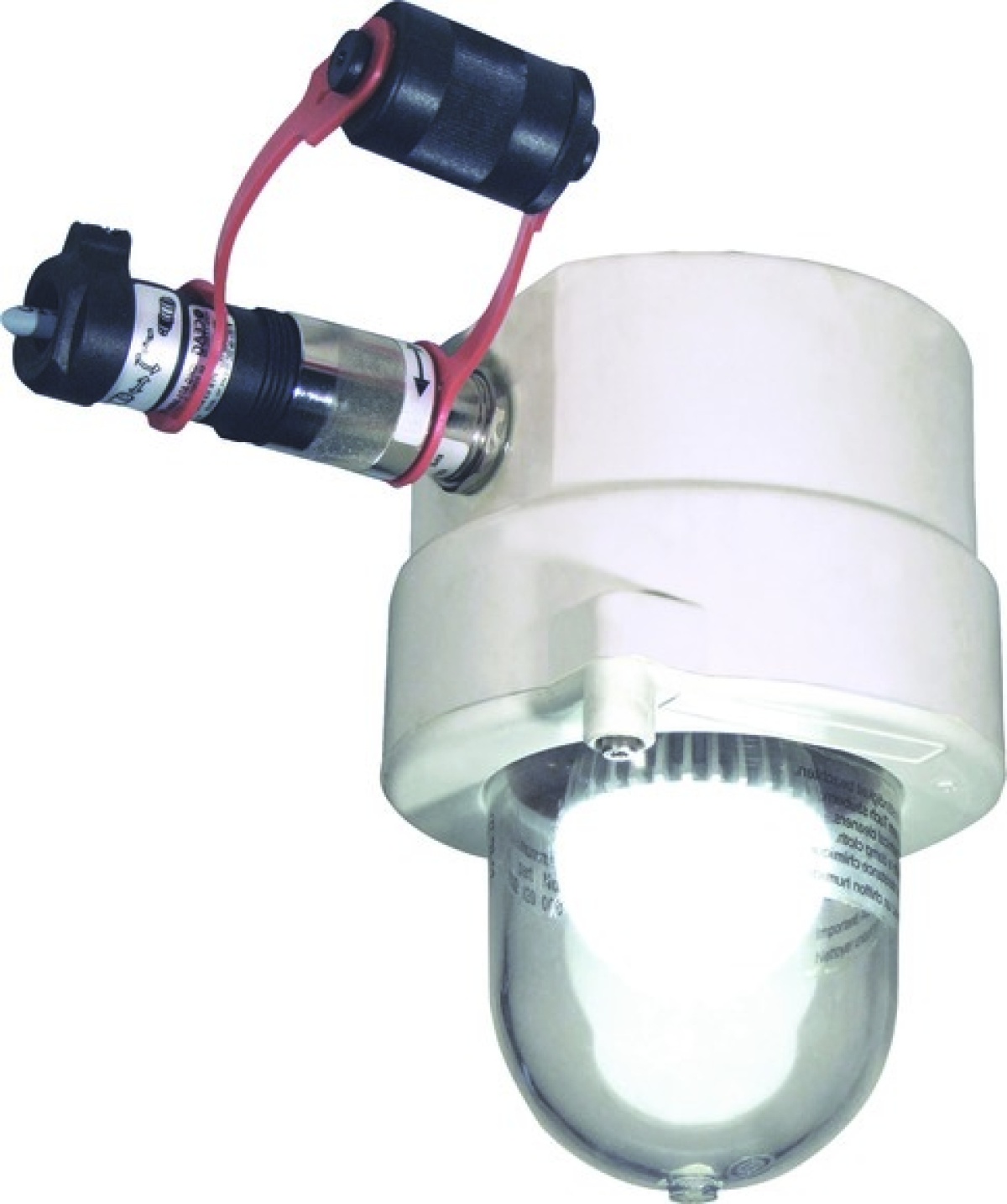

DKLK23 LED RED W. LAMP
Emergency
DKLK23 LED RED W. LAMP
Manufacturer Ref:
GHG8714121R0001
Nortécnica Ref:
EAN:
4250217403408
Description
Technical Information
Attributes
Mounting method
Surface mounting
Protection class according to IEC 61140
I
Largura
356
Diâmetro externo
-
Lamp holder
EV000494
Secção transversal do condutor
2.5
Connection type
Other
Voltage type
AC/DC
EF000233
EV003790
Suitable for lamp power
-
Type of control gear
LED operating device current-controlled
Adjustable
No
Índice de restituição de cor CRI
70-79
Largura para embutir
0
Built-in diameter
0
Suitable for labelling type
Other
Type of indicator
Single-sided
Número de polos
3
Comprimento
356
Alturaprofundidade
76
Housing material
-
Lamp type
LED not exchangeable
Wiring system
Continuous circuit/emergency circuit
Comprimento para embutir
0
Material cover
EV006823
Impact strength
IK10
Nominal voltage
230
230
Degree of protection IP
IP66
For Ex-zone gas
1, 2
With light source
Yes
Adequado para número de lâmpadas
-
With control gear
Yes
EF008091
EV000494
Beam angle
EV011534
For Ex-zone dust
21, 22
Luminous flux in emergency mode
185
Recognition distance
25
Nominal current
-
Colour temperature
3000
6500
Potência máx. do sistema
10
EF009349
185
Colour of light
White
Constant light output CLO
No
Type of wiring
Suitable for loop-through wiring
Vida útil nominal L70B50 a 25 C
60
Degree of protection NEMA
EV000154
Rated ambient temperature according to IEC 62722-2-1
-
Light distributor
EV014410
EF012172
-
Nominal operation time
60000
60000
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Exchangeable control gear
Yes
Energy efficiency class of the light source according to EU regulation 20192015
-
Alturaprofundidade para embutir
0
Fator de potência
0.95
