Emergency

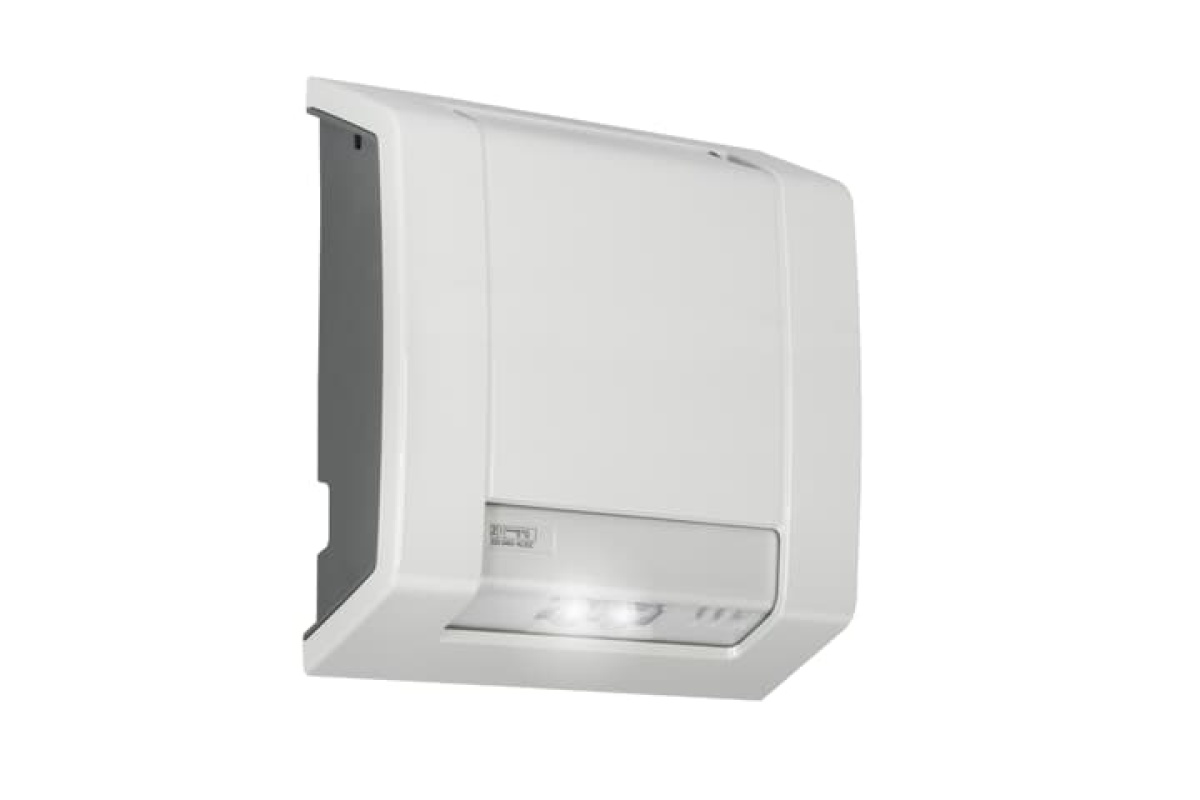

EL9400S-M3ST ER

Manufacturer Ref: 7TCA309010R0052

Nortécnica Ref:

EAN: 5415022514940

Login to see prices and stocks

Description

EL9400S-M3ST ER

Technical Information

Attributes

Mounting method

Wall surface mounting/ceiling surface mounting

Protection class according to IEC 61140

II

Largura

80

Diâmetro externo

-

Function

Escape route lighting

Lamp holder

-

Secção transversal do condutor

2.5

Connection type

Other

Housing colour

Grey

Voltage type

AC

EF000233

EV009693

Type of control gear

LED operating device current-controlled

With remote control

No

Largura para embutir

-

Built-in diameter

-

Suitable for labelling type

-

Type of indicator

-

Número de polos

4

Comprimento

235

Alturaprofundidade

250

Housing material

Plastic

Lamp type

LED not exchangeable

Number of lighting heads

1

Comprimento para embutir

-

Material cover

Plastic, transparent

Impact strength

IK10

Battery technology

NiMH

Nominal voltage

220

240

Degree of protection IP

IP65

With light source

Yes

Luminaire with limited surface temperature, sign "D according to EN 60598-2-24

-

Adequado para número de lâmpadas

1

With remote switch connection

No

EF008091

EV009635

Recognition distance

-

Nominal current

-

-

Colour temperature

5600

5600

Potência máx. do sistema

-

EF009349

97

Constant light output CLO

-

With pictogram

-

Type of wiring

Suitable for loop-through wiring

Vida útil nominal L70B50 a 25 C

-

Luminous flux in standby mode

-

Degree of protection NEMA

-

Rated ambient temperature according to IEC 62722-2-1

-

-

Light distributor

Focal lens

RAL-number housing

-

Nominal operation time

-

-

Número max. de luminárias por disjuntor C16

-

Número max. de luminárias por disjuntor B16

-

Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq

-

Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq

-

Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq

-

Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq

-

Valor estroboscópico Pst LM

-

Valor de efeito estroboscópico SVM

-

Exchangeable control gear

Yes

Energy efficiency class of the light source according to EU regulation 20192015

-

Suitable for standby switching

-

Suitable for continuous circuit

-

Alturaprofundidade para embutir

-

Fator de potência

-

Brands

ABB
