Emergency

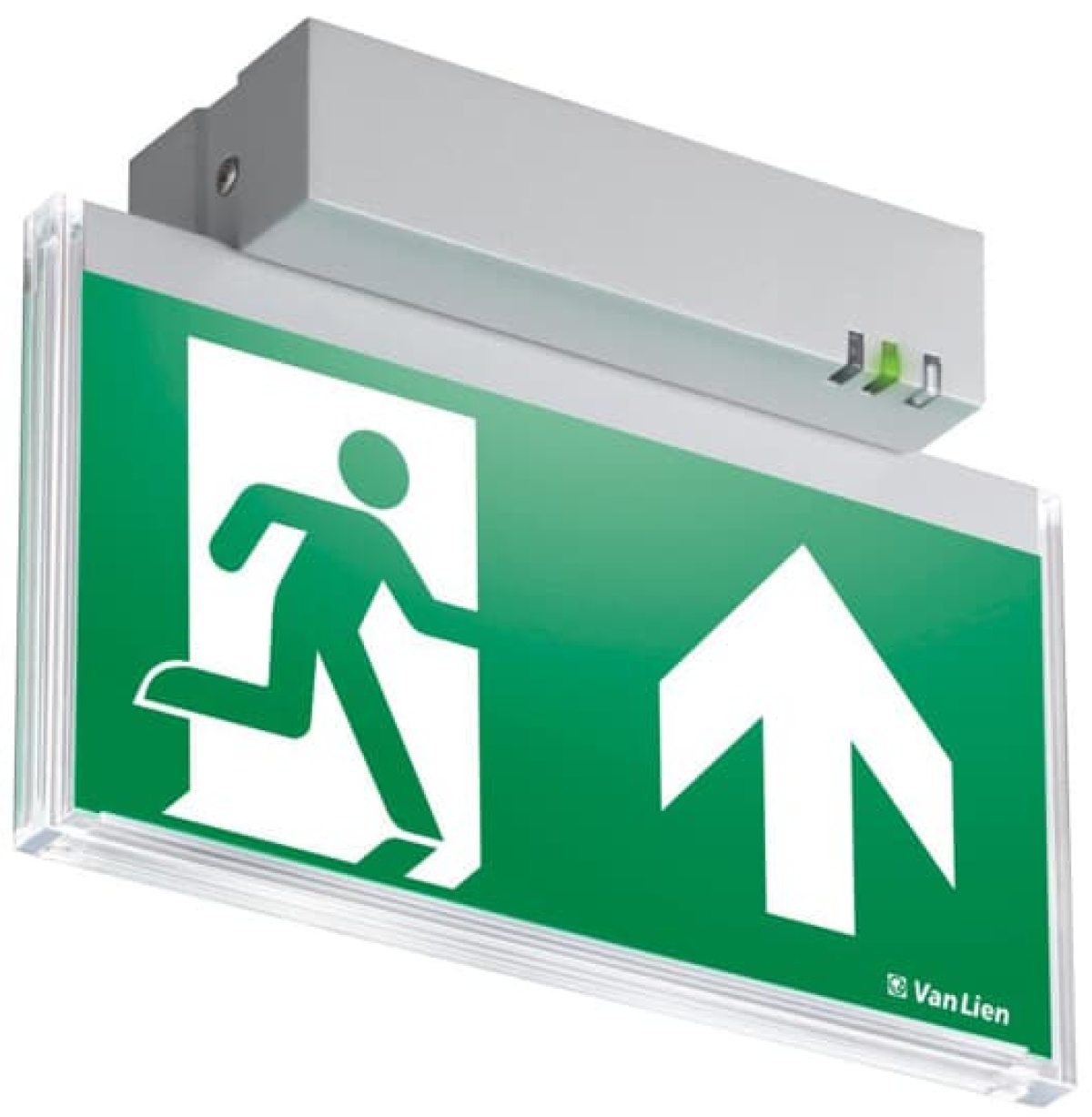

EVADOP223

Manufacturer Ref: 7TCA091160R0590

Nortécnica Ref:

EAN: 8713812770703

Login to see prices and stocks

Description

EVADOP223

Technical Information

Attributes

Mounting method

Ceiling surface mounting

EF000004

II

Width

66

Outer diameter

-

Function

Escape route signage

Lamp holder

-

Conductor cross section

2.5

Connection type

Other

Housing colour

Aluminium

Voltage type

AC

EF000233

EV009693

Type of control gear

LED operating device currentcontrolled

With remote control

No

Built-in width

-

Built-in diameter

-

Suitable for labelling type

Insert sheetplate

Type of indicator

Singledoublesided

Number of poles

4

Length

235

Heightdepth

172

Housing material

Aluminium

Lamp type

LED not exchangeable

Number of lighting heads

1

Built-in length

-

Material cover

Plastic transparent

Impact strength

-

Battery technology

NiMH

Nominal voltage

220

240

Degree of protection IP

IP40

With light source

Yes

Luminaire with limited surface temperature, sign "D according to EN 60598-2-24

-

Suitable for number of light sources

1

With remote switch connection

No

EF008091

EV009635

Recognition distance

22

Nominal current

-

-

Colour temperature

5000

5000

Max. system power

-

EF009349

-

Constant light output CLO

-

With pictogram

Yes

Type of wiring

Suitable for loopthrough wiring

Rated lifetime L70B50 at 25 C

-

Luminous flux in standby mode

-

Degree of protection NEMA

-

Rated ambient temperature according to IEC 62722-2-1

5

35

Light distributor

-

RAL-number housing

-

Nominal operation time

-

-

Max. number of luminaires per miniature circuit breaker C16 MCB

-

Max. number of luminaires per miniature circuit breaker B16 MCB

-

Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq

-

Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq

-

Failure rate at median useful life of 50,000 h at 25 C ambient tq

-

Failure rate at median useful life of 100,000 h at 25 C ambient tq

-

Flickering value Pst LM

-

Stroboscope effect value SVM

-

Exchangeable control gear

Yes

Energy efficiency class of the light source according to EU regulation 20192015

-

Suitable for standby switching

-

Suitable for continuous circuit

-

Built-in heightdepth

-

Power factor

0.9

Brands

VAN LIEN
