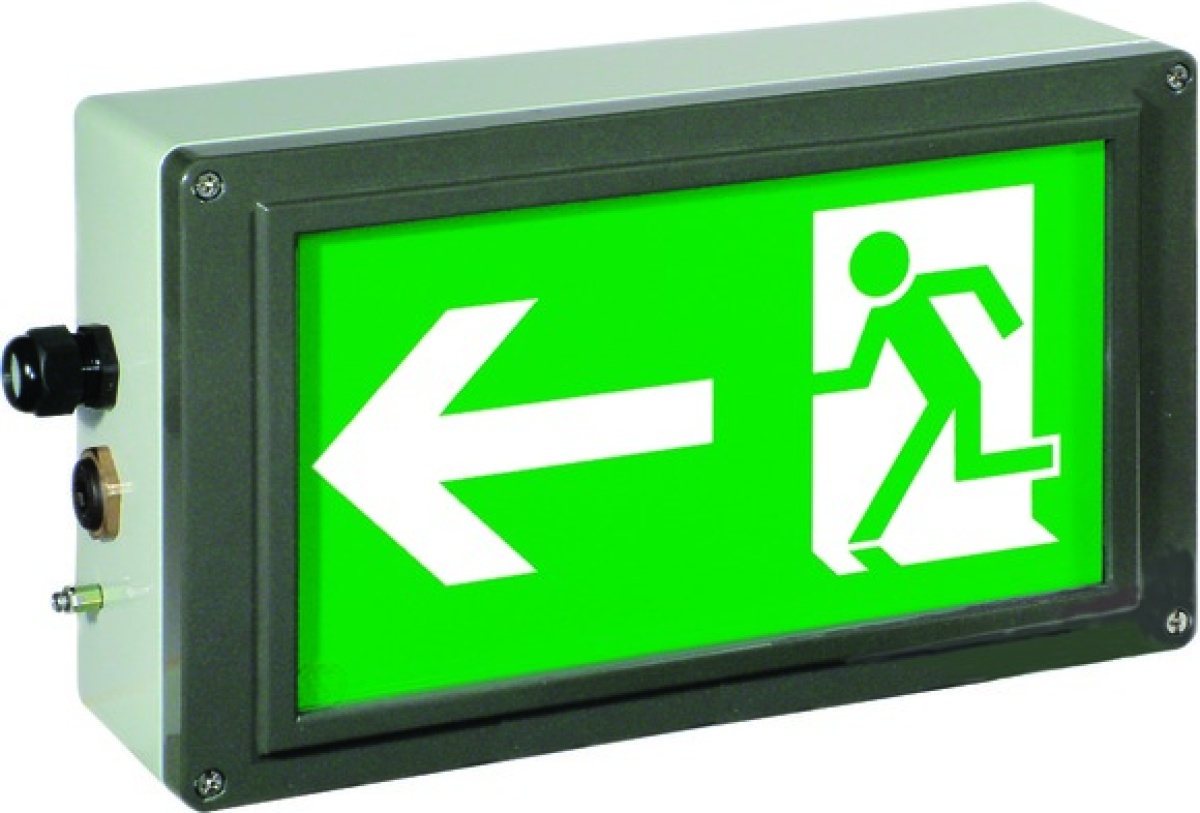

Ex-escape sign luminaires EX-LITE V-CG-S for emergency light function for zone 121, Pictogram DIN 4844, Arrow 9 Clock
Emergency
Ex-escape sign luminaires EX-LITE V-CG-S for emergency light function for zone 121, Pictogram DIN 4844, Arrow 9 Clock
Manufacturer Ref:
12191021002
Nortécnica Ref:
EAN:
4250217412912
Description
Technical Information
Attributes
Mounting method
Surface mounting
EF000004
I
Width
230
Outer diameter
-
Conductor cross section
2.5
Connection type
Screwed terminal
Voltage type
AC/DC
EF000233
EV003790
Suitable for lamp power
-
Type of control gear
Electronic transformer
Colour rendering index CRI
70-79
Built-in width
0
Built-in diameter
0
Suitable for labelling type
Other
Type of indicator
Single-sided
Number of poles
4
Length
356
Heightdepth
76
Housing material
-
Lamp type
LED not exchangeable
Wiring system
Continuous circuit/emergency circuit
Built-in length
0
Impact strength
IK10
Nominal voltage
220
254
Degree of protection IP
IP66
For Ex-zone gas
1, 2
With light source
Yes
Suitable for number of light sources
-
EF008091
EV010144
For Ex-zone dust
21, 22
Luminous flux in emergency mode
185
Recognition distance
28
Colour temperature
3000
6500
Max. system power
10
EF009349
185
Colour of light
White
Constant light output CLO
No
Type of wiring
Suitable for loop-through wiring
Rated lifetime L70B50 at 25 C
60
Nominal operation time
60000
60000
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Exchangeable control gear
Yes
Energy efficiency class of the light source according to EU regulation 20192015
-
Built-in heightdepth
0
Power factor
0.95
