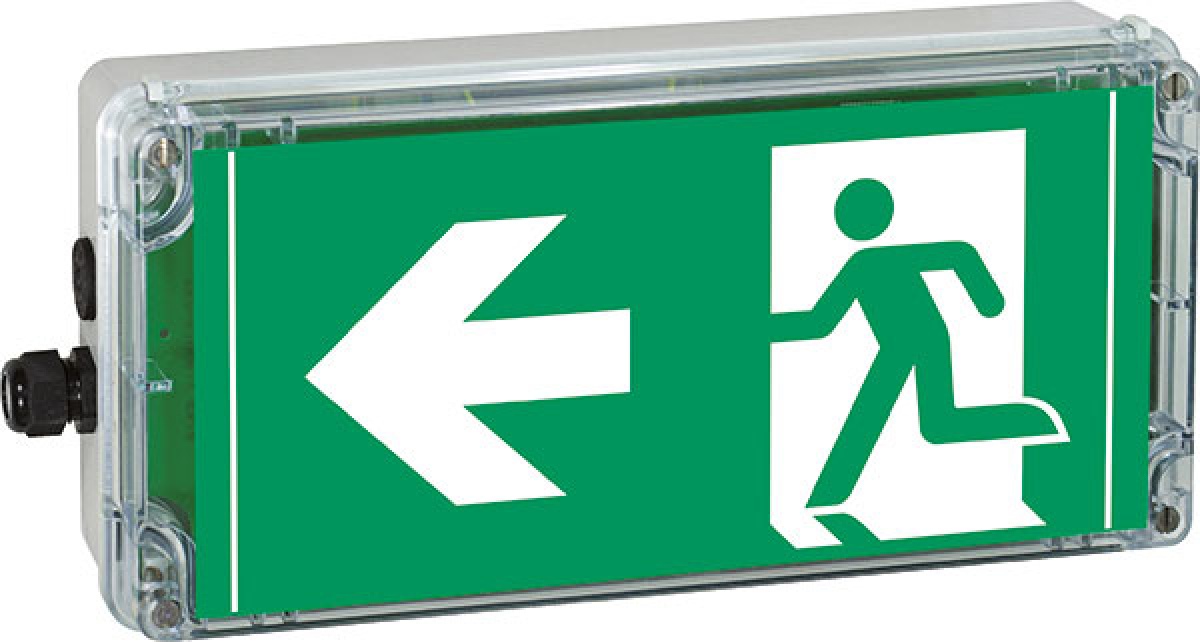

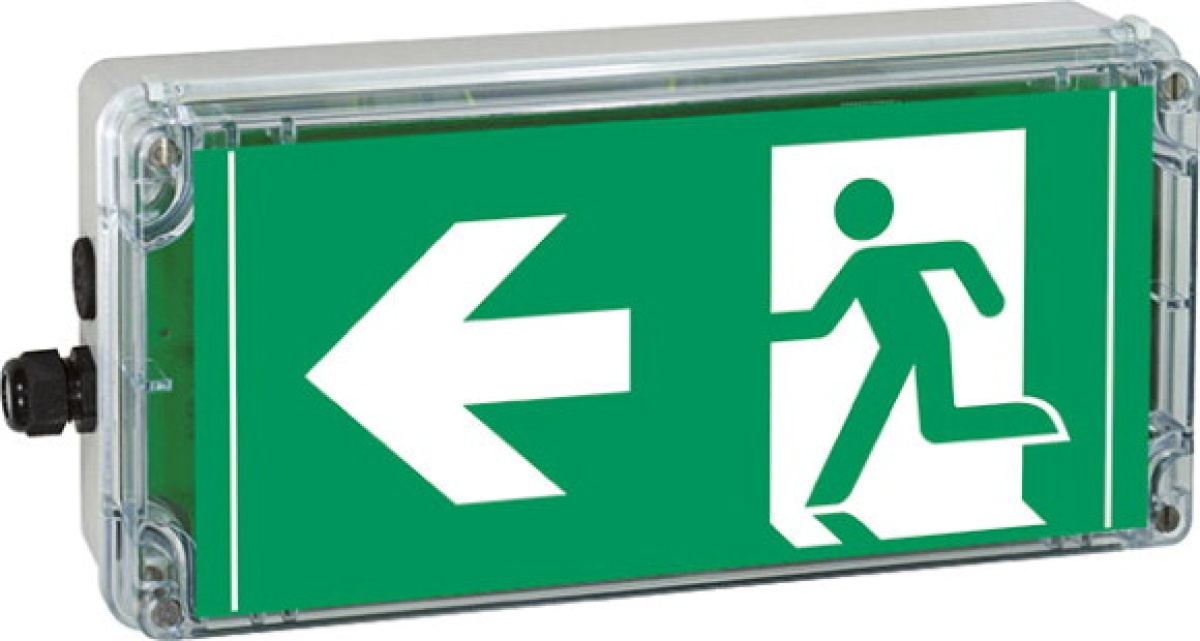

Ex-escape sign luminaires EXIT 2 for zone 222, Pictogram DIN ISO 7010, Arrow 9 Clock
Emergency
Ex-escape sign luminaires EXIT 2 for zone 222, Pictogram DIN ISO 7010, Arrow 9 Clock
Manufacturer Ref:
12193000022
Nortécnica Ref:
EAN:
4250959910721
Description
Technical Information
Attributes
Mounting method
Surface mounting
Protection class according to IEC 61140
I
Largura
356
Diâmetro externo
-
Secção transversal do condutor
2.5
Connection type
Other
Voltage type
AC/DC
EF000233
EV003790
Suitable for lamp power
-
Type of control gear
LED operating device current-controlled
Índice de restituição de cor CRI
70-79
Largura para embutir
0
Built-in diameter
0
Suitable for labelling type
Other
Type of indicator
Single-sided
Número de polos
3
Comprimento
175
Alturaprofundidade
76
Housing material
-
Lamp type
LED not exchangeable
Wiring system
Continuous circuit/emergency circuit
Comprimento para embutir
0
Impact strength
IK10
Nominal voltage
110
277
Degree of protection IP
IP66
For Ex-zone gas
2
With light source
Yes
Adequado para número de lâmpadas
-
EF008091
EV009635
For Ex-zone dust
22
Luminous flux in emergency mode
185
Recognition distance
25
Colour temperature
3000
6500
Potência máx. do sistema
6
EF009349
185
Colour of light
White
Constant light output CLO
No
Type of wiring
Suitable for loop-through wiring
Vida útil nominal L70B50 a 25 C
60
Nominal operation time
60000
60000
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Exchangeable control gear
Yes
Energy efficiency class of the light source according to EU regulation 20192015
-
Alturaprofundidade para embutir
0
Fator de potência
0.95
