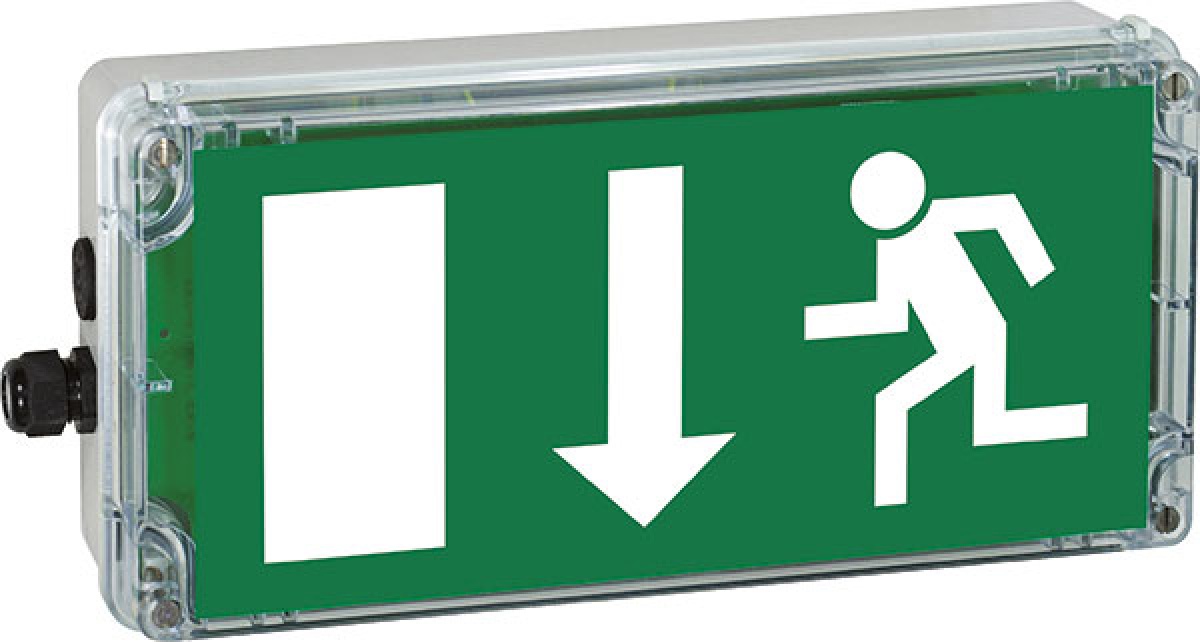

Ex-escape sign luminaires EXIT for zone 121, Pictogram EN 1838, Arrow 6 Clock
Emergency
Ex-escape sign luminaires EXIT for zone 121, Pictogram EN 1838, Arrow 6 Clock
Manufacturer Ref:
12191000113
Nortécnica Ref:
EAN:
4250217408472
Description
Technical Information
Attributes
Mounting method
Surface mounting
Protection class according to IEC 61140
I
Largura
356
Diâmetro externo
-
Secção transversal do condutor
2.5
Connection type
Other
Voltage type
AC/DC
EF000233
EV003790
Suitable for lamp power
-
Type of control gear
LED operating device current-controlled
Índice de restituição de cor CRI
70-79
Largura para embutir
0
Built-in diameter
0
Suitable for labelling type
Other
Type of indicator
Single-sided
Número de polos
3
Comprimento
175
Alturaprofundidade
76
Housing material
-
Lamp type
LED not exchangeable
Wiring system
Continuous circuit/emergency circuit
Comprimento para embutir
0
Impact strength
IK10
Nominal voltage
110
277
Degree of protection IP
IP66
For Ex-zone gas
1, 2
With light source
Yes
Adequado para número de lâmpadas
-
EF008091
EV009635
For Ex-zone dust
21, 22
Luminous flux in emergency mode
185
Recognition distance
25
Colour temperature
3000
6500
Potência máx. do sistema
10
EF009349
185
Colour of light
White
Constant light output CLO
No
Type of wiring
Suitable for loop-through wiring
Vida útil nominal L70B50 a 25 C
60
Nominal operation time
60000
60000
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Exchangeable control gear
Yes
Energy efficiency class of the light source according to EU regulation 20192015
-
Alturaprofundidade para embutir
0
Fator de potência
0.95
