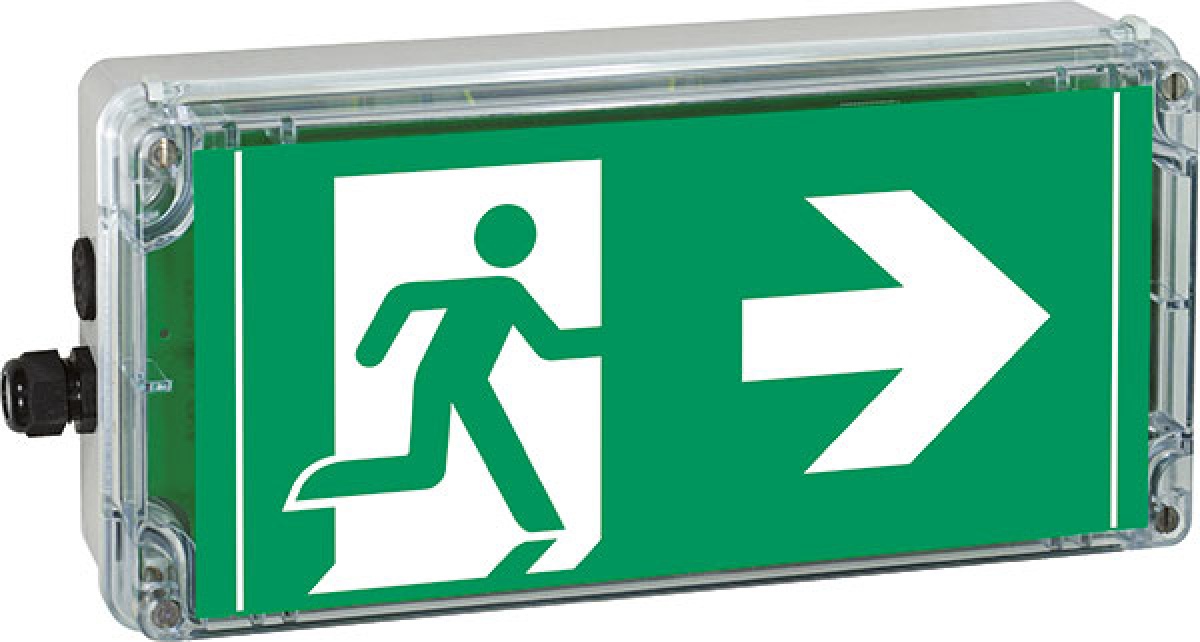

Ex-escape sign luminaires EXIT V-CG-S for emergency light function for zone 121, Pictogram DIN ISO 7010, Arrow 3 Clock
Emergency
Ex-escape sign luminaires EXIT V-CG-S for emergency light function for zone 121, Pictogram DIN ISO 7010, Arrow 3 Clock
Manufacturer Ref:
12191020021
Nortécnica Ref:
EAN:
4250217484735
Description
Technical Information
Attributes
Mounting method
Surface mounting
EF000004
I
Width
356
Outer diameter
-
Conductor cross section
2.5
Connection type
Other
Voltage type
AC/DC
EF000233
EV003790
Suitable for lamp power
-
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
70-79
Built-in width
0
Built-in diameter
0
Suitable for labelling type
Other
Type of indicator
Single-sided
Number of poles
3
Length
175
Heightdepth
76
Housing material
-
Lamp type
LED not exchangeable
Wiring system
Continuous circuit/emergency circuit
Built-in length
0
Impact strength
IK10
Nominal voltage
195
254
Degree of protection IP
IP66
For Ex-zone gas
1, 2
With light source
Yes
Suitable for number of light sources
-
EF008091
EV010144
For Ex-zone dust
21, 22
Luminous flux in emergency mode
185
Recognition distance
25
Colour temperature
3000
6500
Max. system power
6
EF009349
185
Colour of light
White
Constant light output CLO
No
Type of wiring
Suitable for loop-through wiring
Rated lifetime L70B50 at 25 C
60
Nominal operation time
60000
60000
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Exchangeable control gear
Yes
Energy efficiency class of the light source according to EU regulation 20192015
-
Built-in heightdepth
0
Power factor
0.95
