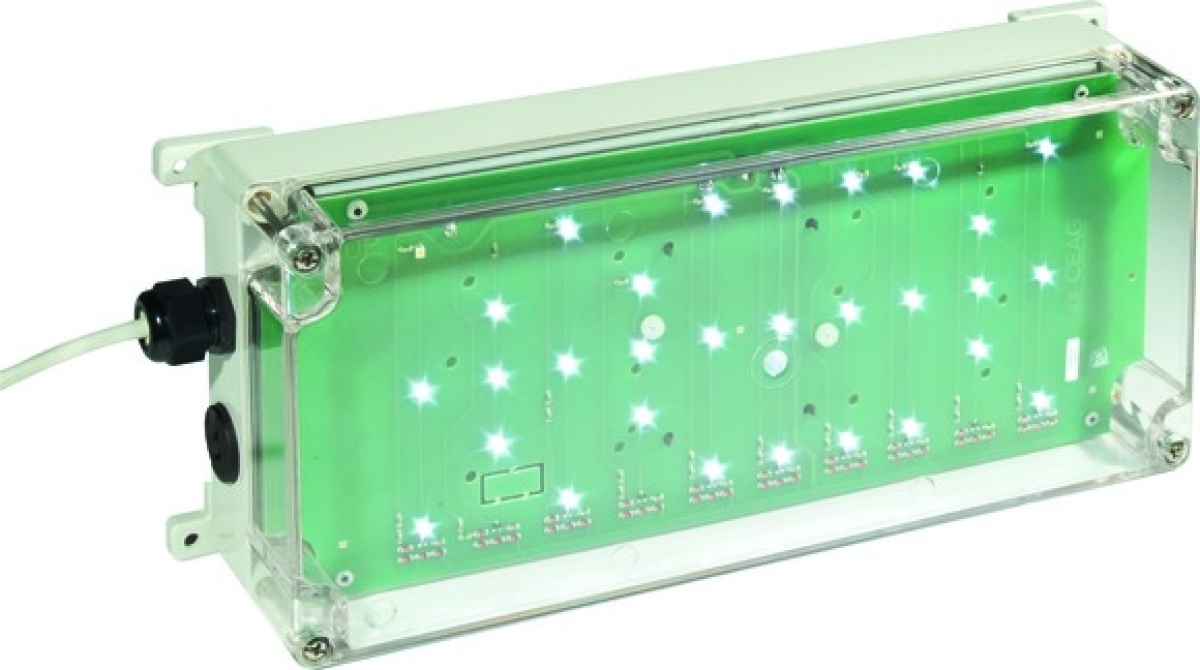

Ex-escape sign luminaires with integrated emergency lighting function EXIT 2 N for zone 222, Pictogram Without neutral
Emergency
Ex-escape sign luminaires with integrated emergency lighting function EXIT 2 N for zone 222, Pictogram Without neutral
Manufacturer Ref:
12193030004
Nortécnica Ref:
EAN:
4250959910905
Description
Technical Information
Attributes
Mounting method
Surface mounting
EF000004
I
Width
175
Outer diameter
-
Conductor cross section
2.5
Connection type
Screwed terminal
Voltage type
AC/DC
EF000233
EV003790
Suitable for lamp power
-
Type of control gear
Electronic transformer
Colour rendering index CRI
70-79
Built-in width
0
Built-in diameter
0
Suitable for labelling type
Other
Type of indicator
Single-sided
Number of poles
3
Length
356
Heightdepth
76
Housing material
-
Lamp type
LED not exchangeable
Wiring system
Continuous circuit/emergency circuit
Built-in length
0
Impact strength
IK10
Nominal voltage
110
277
Degree of protection IP
IP66
For Ex-zone gas
2
With light source
Yes
Suitable for number of light sources
-
EF008091
EV000494
For Ex-zone dust
22
Luminous flux in emergency mode
185
Recognition distance
25
Colour temperature
3000
6500
Max. system power
6
EF009349
185
Colour of light
White
Constant light output CLO
No
Type of wiring
Suitable for loop-through wiring
Rated lifetime L70B50 at 25 C
60
Nominal operation time
60000
60000
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Exchangeable control gear
Yes
Energy efficiency class of the light source according to EU regulation 20192015
-
Built-in heightdepth
0
Power factor
0.5
