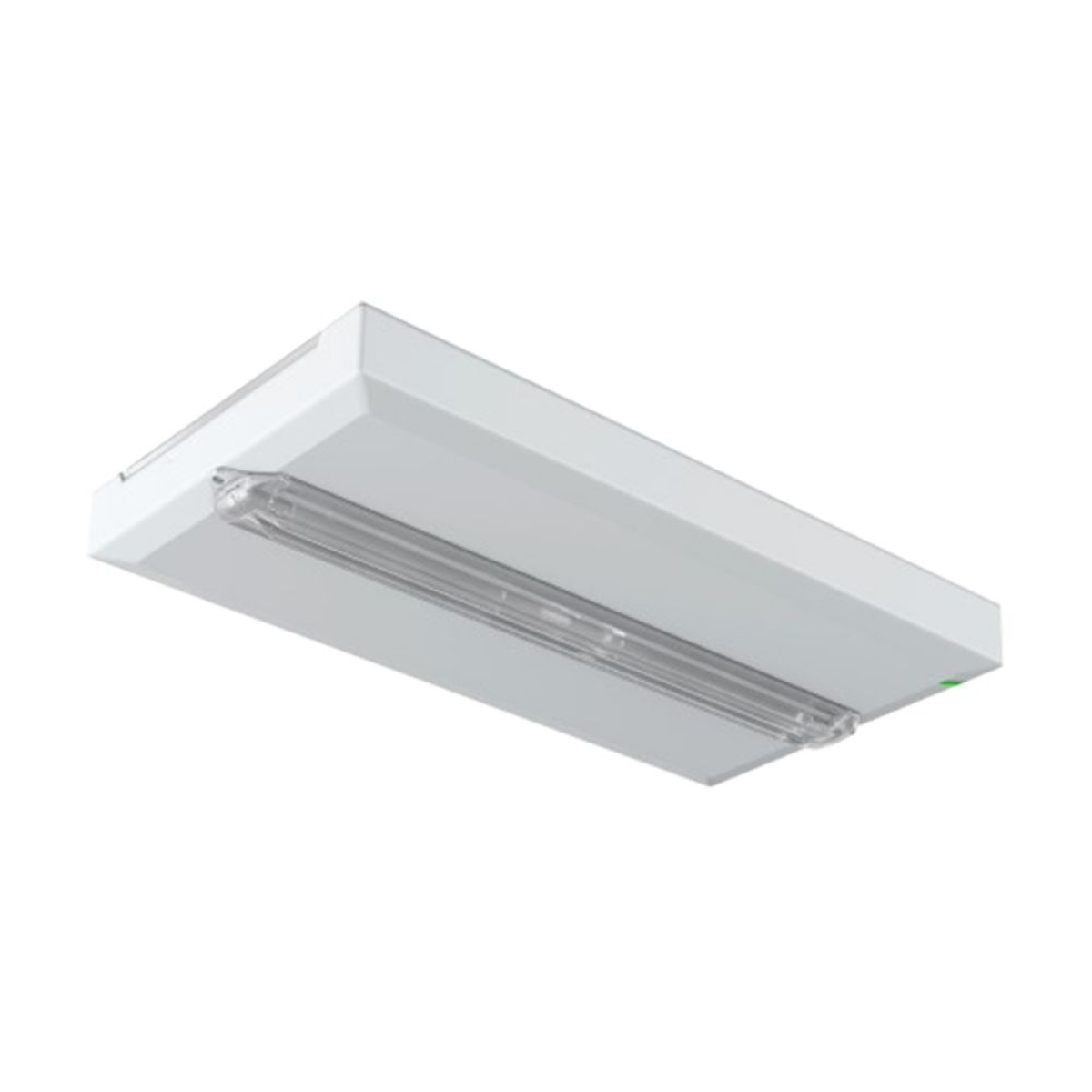

FT Escape 150lm CGL, 1-3H
Emergency
FT Escape 150lm CGL, 1-3H
Manufacturer Ref:
FT2SE150CGL13
Nortécnica Ref:
EAN:
3660191806774
Description
Technical Information
Attributes
Mounting method
Ceiling surface mounting
Protection class according to IEC 61140
II
Largura
120
Diâmetro externo
-
Function
Escape route lighting
Lamp holder
None
Secção transversal do condutor
2.5
Connection type
Plug-in connection
Housing colour
White
Voltage type
AC
EF000233
EV009693
Type of control gear
-
With remote control
No
Largura para embutir
130
Built-in diameter
-
Suitable for labelling type
-
Type of indicator
-
Número de polos
3
Comprimento
228
Alturaprofundidade
31
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
1
Comprimento para embutir
245
Material cover
Plastic, transparent
Impact strength
IK07
Battery technology
Lithium-ion
Nominal voltage
230
230
Degree of protection IP
IP43
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
1
With remote switch connection
Yes
EF008091
EV010144
Recognition distance
-
Nominal current
-
Colour temperature
6500
6500
Potência máx. do sistema
2
EF009349
150
Constant light output CLO
No
With pictogram
No
Type of wiring
-
Vida útil nominal L70B50 a 25 C
-
Luminous flux in standby mode
100
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-
Light distributor
Focal lens
RAL-number housing
-
Nominal operation time
1
3
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
No
Suitable for continuous circuit
No
Alturaprofundidade para embutir
50
Fator de potência
0.4
