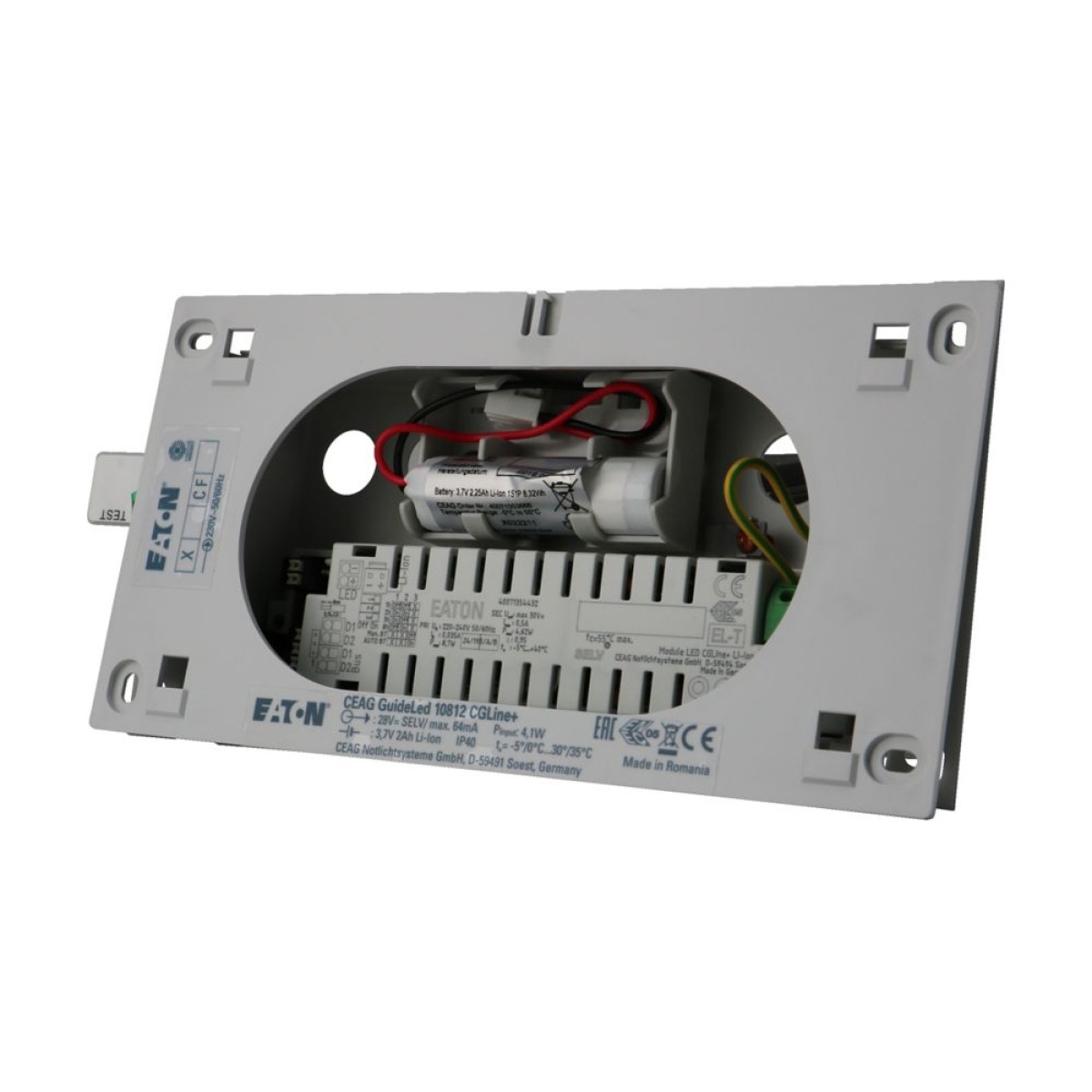

GuideLed 10812 1-8hD CGLine rec. wall
Emergency
GuideLed 10812 1-8hD CGLine rec. wall
Manufacturer Ref:
40071353261
Nortécnica Ref:
EAN:
4012539344223
Description
Technical Information
Attributes
Mounting method
Surface mounting/recessed mounting
EF000004
II
Width
115
Outer diameter
-
Function
Escape route signage
Lamp holder
Other
Conductor cross section
2.5
Connection type
Plug-in connection
Housing colour
Grey
Voltage type
AC
EF000233
EV009693
Type of control gear
LED operating device voltage-controlled
With remote control
No
Built-in width
115
Built-in diameter
-
Suitable for labelling type
Insert sheet/plate
Type of indicator
-
Number of poles
6
Length
220
Heightdepth
40
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
1
Built-in length
220
Material cover
Plastic, opal
Impact strength
IK03
Battery technology
Lithium-ion
Nominal voltage
220
240
Degree of protection IP
IP20
With light source
No
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Suitable for number of light sources
-
With remote switch connection
Yes
EF008091
EV010144
Recognition distance
20
Nominal current
-
Colour temperature
-
Max. system power
4.1
EF009349
25
Constant light output CLO
No
With pictogram
No
Type of wiring
Suitable for loop-through wiring
Rated lifetime L70B50 at 25 C
50000
Luminous flux in standby mode
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
0
30
Light distributor
Diffuser lens/optic/panel
RAL-number housing
-
Nominal operation time
1
8
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
No
Suitable for continuous circuit
No
Built-in heightdepth
2
Power factor
0.88
