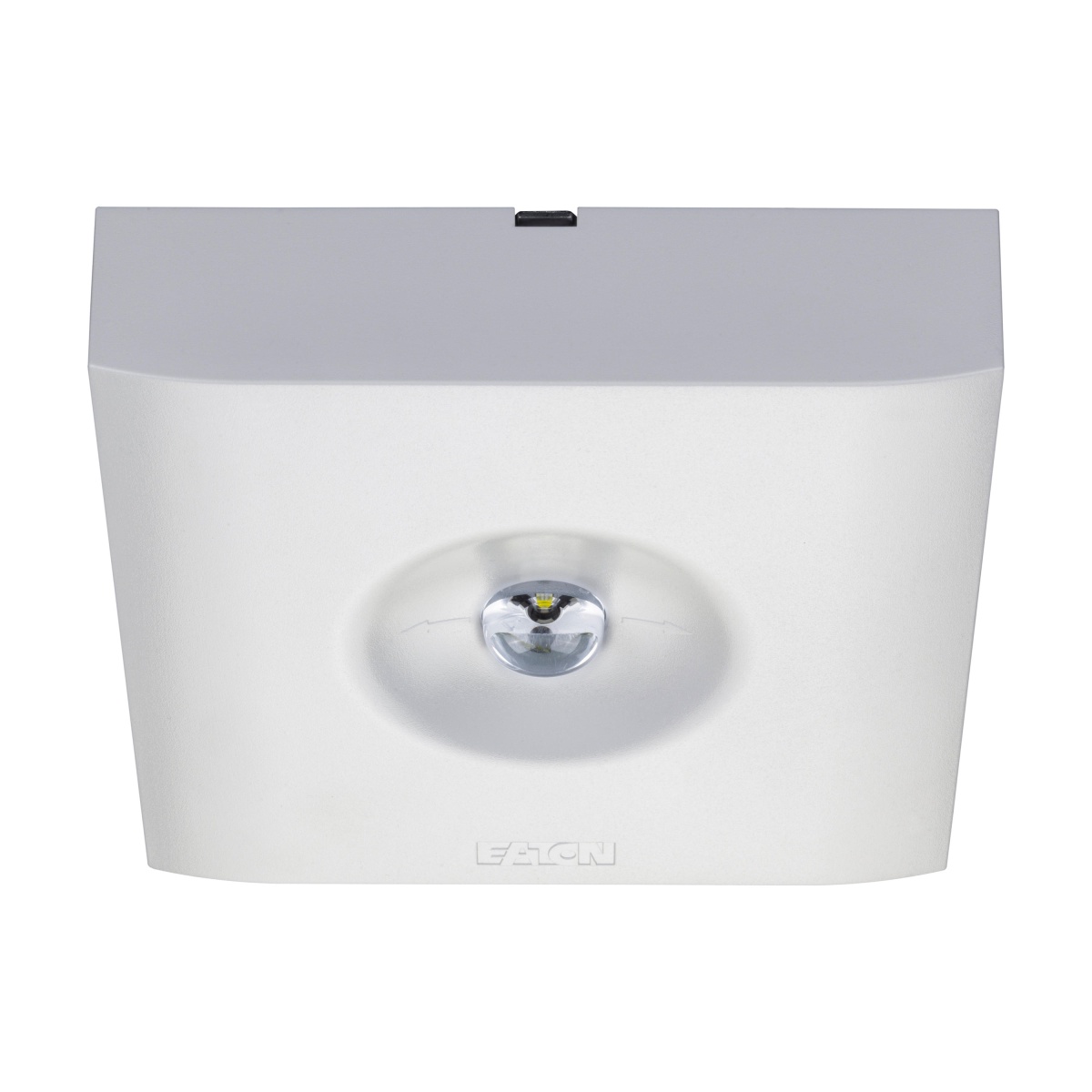

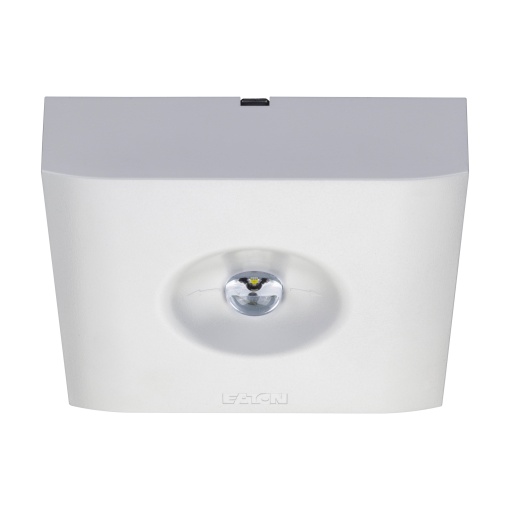

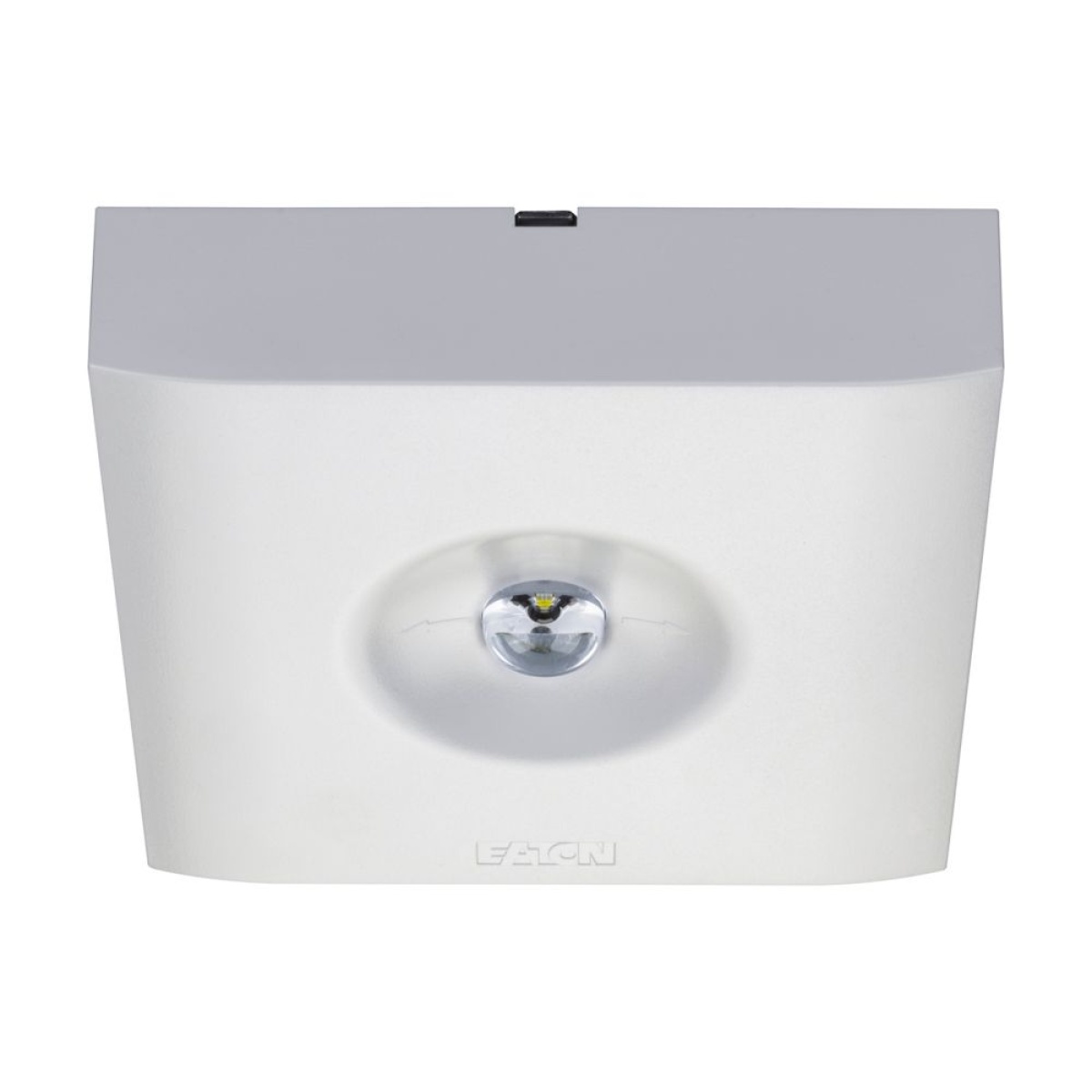

GuideLed SL 13032.2 CG-S surface asym
Emergency
GuideLed SL 13032.2 CG-S surface asym
Manufacturer Ref:
40071356738
Nortécnica Ref:
EAN:
4012539366621
Description
Technical Information
Attributes
Mounting method
Ceiling surface mounting
Protection class according to IEC 61140
I
Largura
124
Diâmetro externo
-
Function
Escape route lighting
Lamp holder
None
Secção transversal do condutor
2.5
Connection type
Plug-in connection
Housing colour
White
Voltage type
DC
EF000233
EV010184
Type of control gear
LED operating device current-controlled
With remote control
No
Largura para embutir
-
Built-in diameter
-
Suitable for labelling type
-
Type of indicator
-
Número de polos
3
Comprimento
124
Alturaprofundidade
32
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
-
Comprimento para embutir
-
Material cover
Without cover
Impact strength
IK03
Battery technology
-
Nominal voltage
220
240
Degree of protection IP
IP41
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
-
With remote switch connection
Yes
EF008091
EV010144
Recognition distance
-
Nominal current
-
Colour temperature
4000
4000
Potência máx. do sistema
3.9
EF009349
320
Constant light output CLO
No
With pictogram
No
Type of wiring
Suitable for loop-through wiring
Vida útil nominal L70B50 a 25 C
-
Luminous flux in standby mode
320
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-20
40
Light distributor
Focal lens
RAL-number housing
9016
Nominal operation time
-
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
A
Suitable for standby switching
No
Suitable for continuous circuit
No
Alturaprofundidade para embutir
-
Fator de potência
0.59
