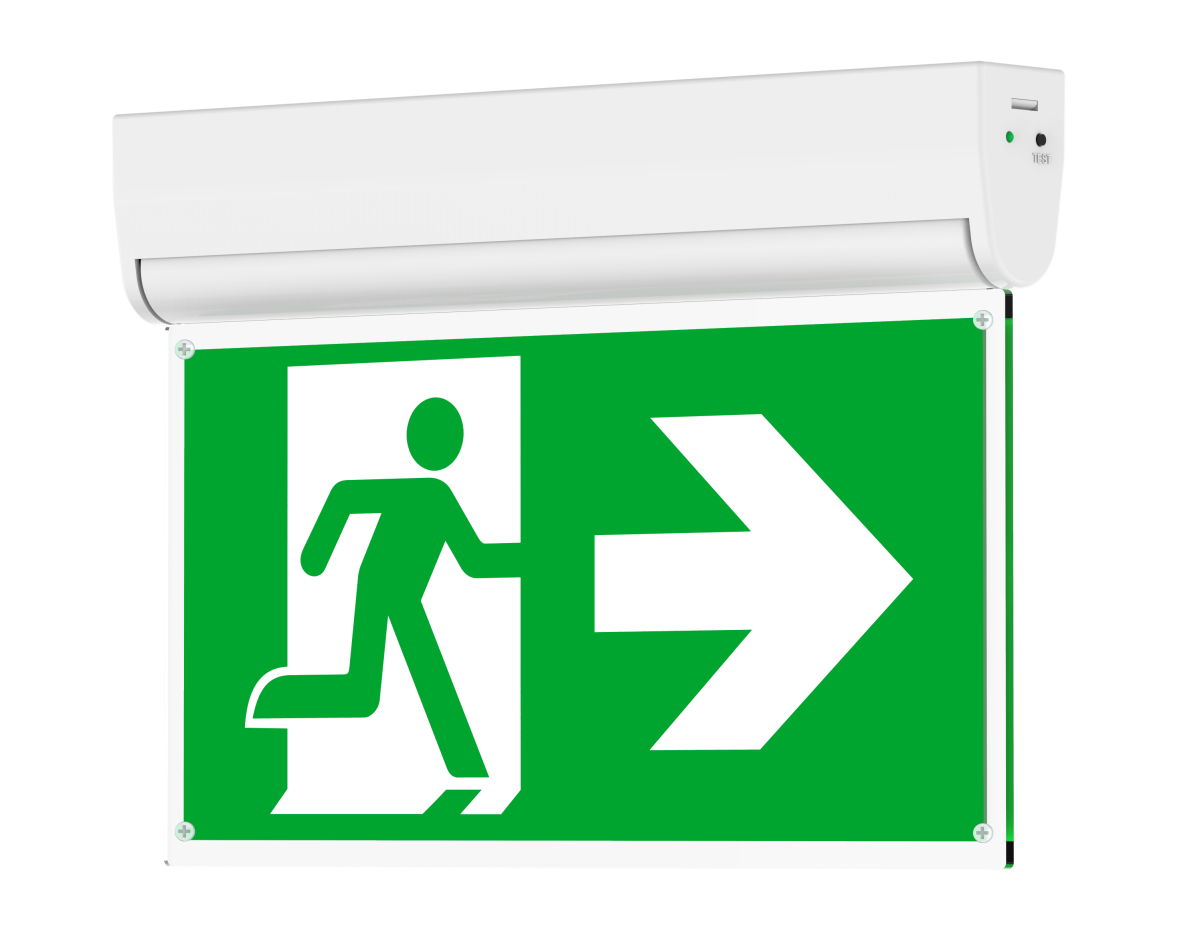

LEDExit-Sign-E 3W-AT-EM3-WH
Emergency
LEDExit-Sign-E 3W-AT-EM3-WH
Manufacturer Ref:
572005002000
Nortécnica Ref:
EAN:
6941491790312
Description
Technical Information
Attributes
Mounting method
Surface mounting
Protection class according to IEC 61140
II
Largura
43
Outer diameter
-
Secção transversal do condutor
2.5
Connection type
Push-in clamp
Surface protection
-
Voltage type
AC
Suitable for lamp power
-
Type of control gear
LED operating device voltage-controlled
Built-in width
-
Built-in diameter
-
Suitable for labelling type
Insert sheetplate
Type of indicator
Singledouble-sided
Number of poles
-
Comprimento
328
Alturaprofundidade
230
Housing material
Plastic
Lamp type
LED not exchangeable
Built-in length
-
Impact strength
IK06
Nominal voltage
200
240
Degree of protection IP
IP20
With light source
Yes
Nominal current
30
30
Colour temperature
6500
6500
EF009349
20
Colour of light
White
Constant light output CLO
No
Type of wiring
Ending
Vida útil nominal L70B50 a 25 C
70000
Light distributor
Diffuser lensopticpanel
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
-
Built-in heightdepth
-
Power factor
0.3
Brands
OPPLE
