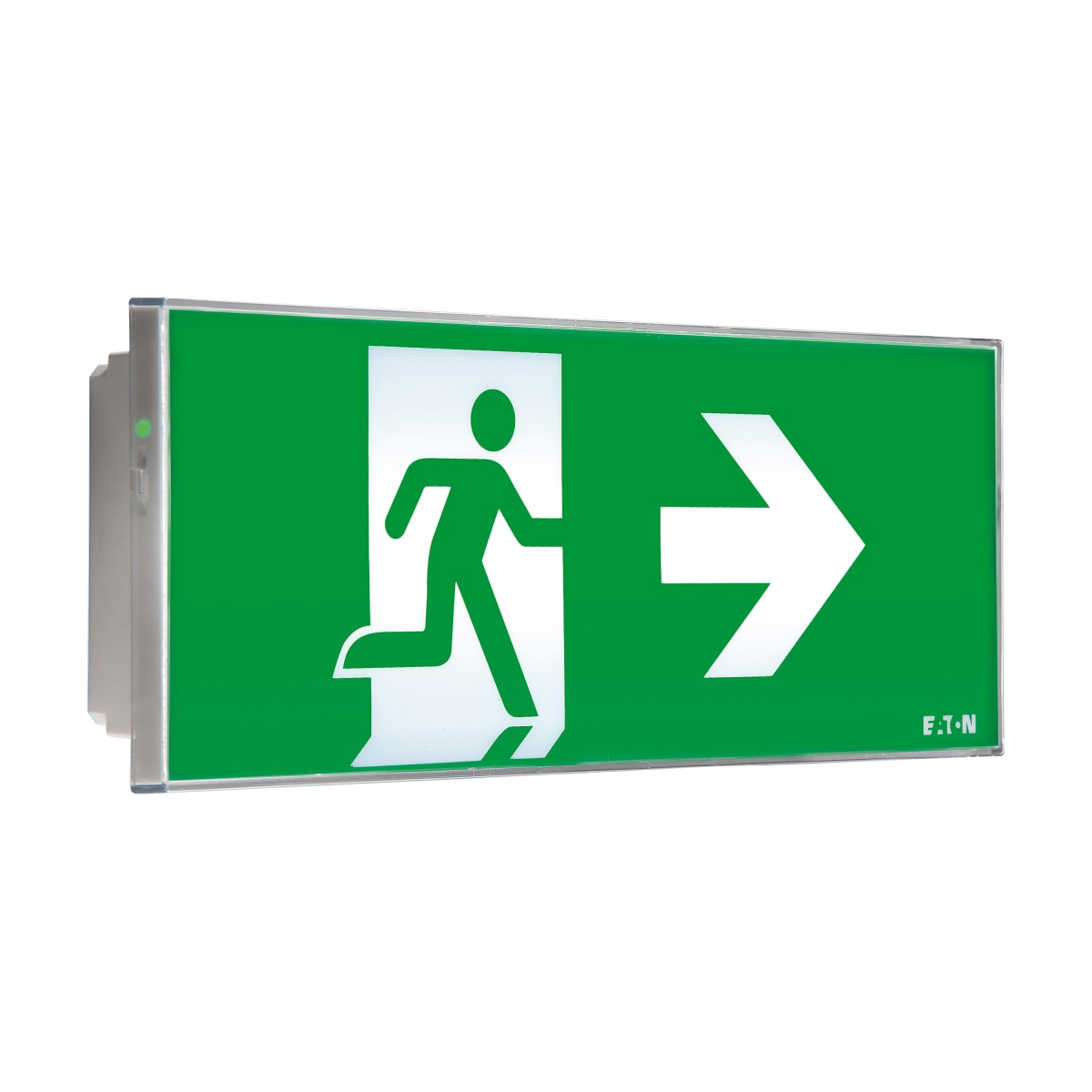

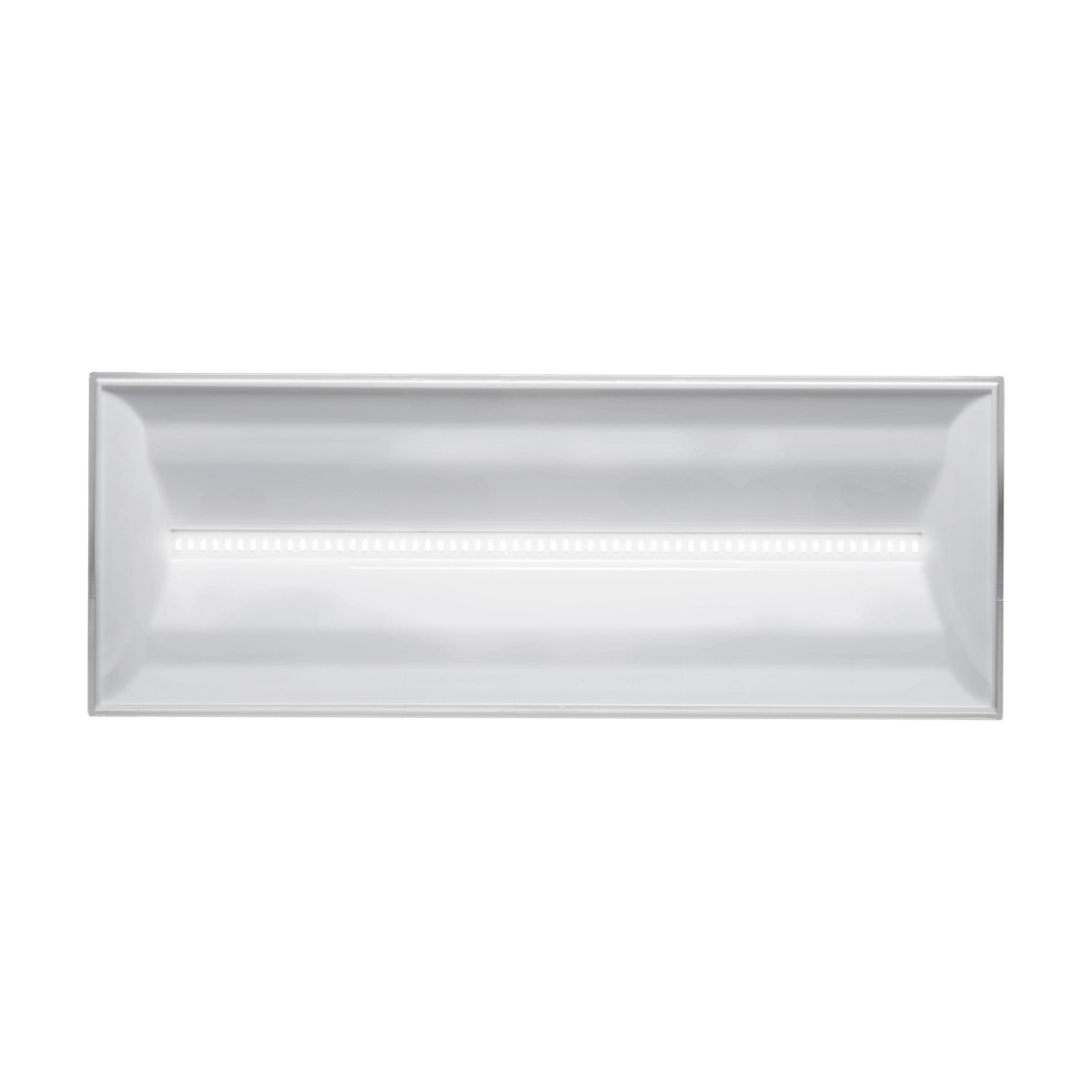

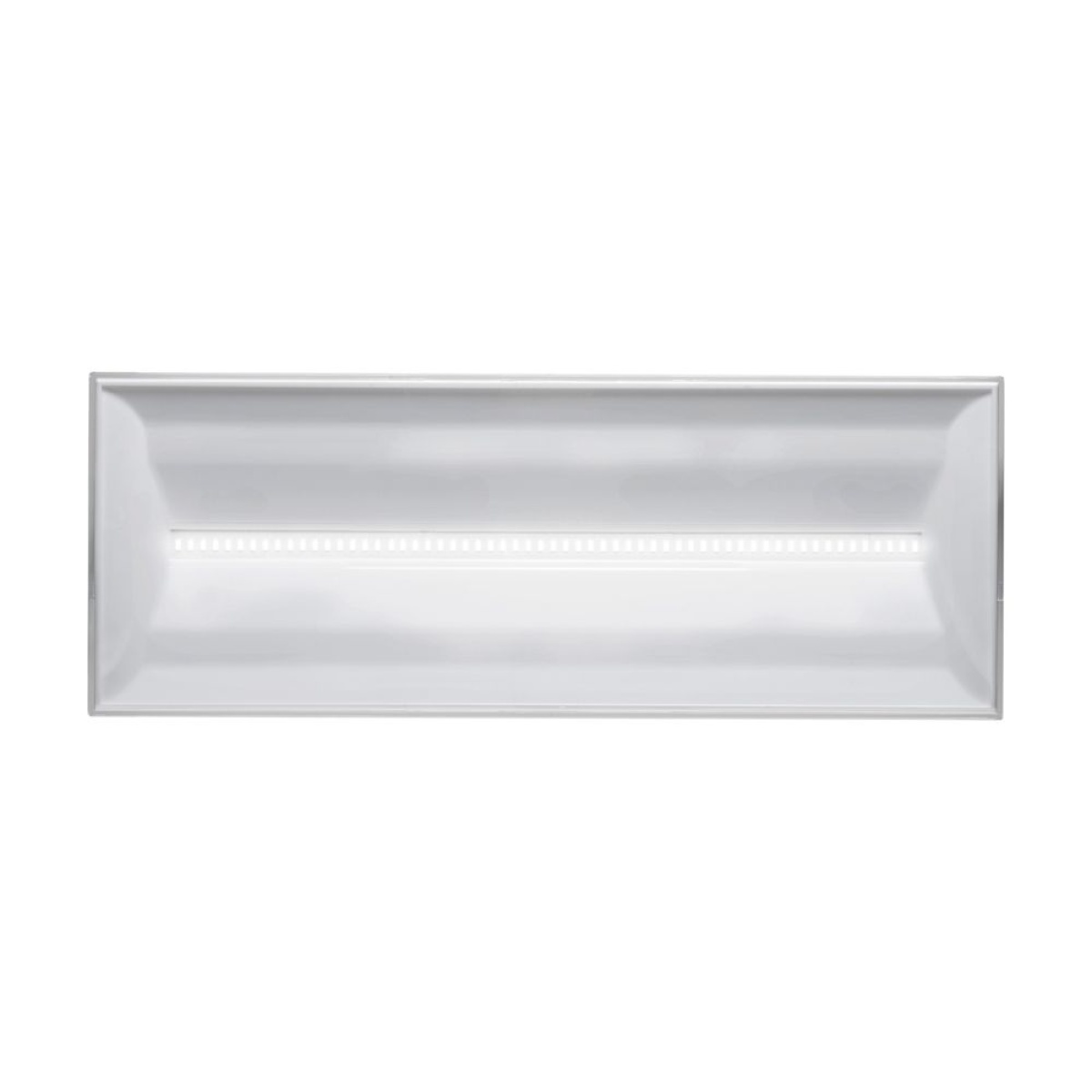

NEXITECH LED 300LM 3H CGLine
Emergency
NEXITECH LED 300LM 3H CGLine
Manufacturer Ref:
NEXI300-3H-CGL
Nortécnica Ref:
EAN:
3660191602444
Description
Technical Information
Attributes
Mounting method
Surface mounting/recessed mounting
Protection class according to IEC 61140
II
Largura
110
Diâmetro externo
-
Function
Escape route lighting/signage
Lamp holder
None
Secção transversal do condutor
2.5
Connection type
Plug-in connection
Housing colour
White
Voltage type
AC
EF000233
EV009693
Type of control gear
LED operating device current-controlled
With remote control
No
Largura para embutir
95
Built-in diameter
-
Suitable for labelling type
Insert sheet/plate
Type of indicator
-
Número de polos
2
Comprimento
290
Alturaprofundidade
40
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
48
Comprimento para embutir
272
Material cover
Plastic, transparent
Impact strength
IK03
Battery technology
NiCd
Nominal voltage
220
240
Degree of protection IP
IP40
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
1
With remote switch connection
Yes
EF008091
EV010144
Recognition distance
20
Nominal current
16.3
16.3
Colour temperature
5053
5053
Potência máx. do sistema
3.6
EF009349
300
Constant light output CLO
No
With pictogram
No
Type of wiring
-
Vida útil nominal L70B50 a 25 C
-
Luminous flux in standby mode
60
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
5
30
Light distributor
Reflector
RAL-number housing
-
Nominal operation time
3
3
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
No
Suitable for continuous circuit
No
Alturaprofundidade para embutir
96
Fator de potência
0.55
