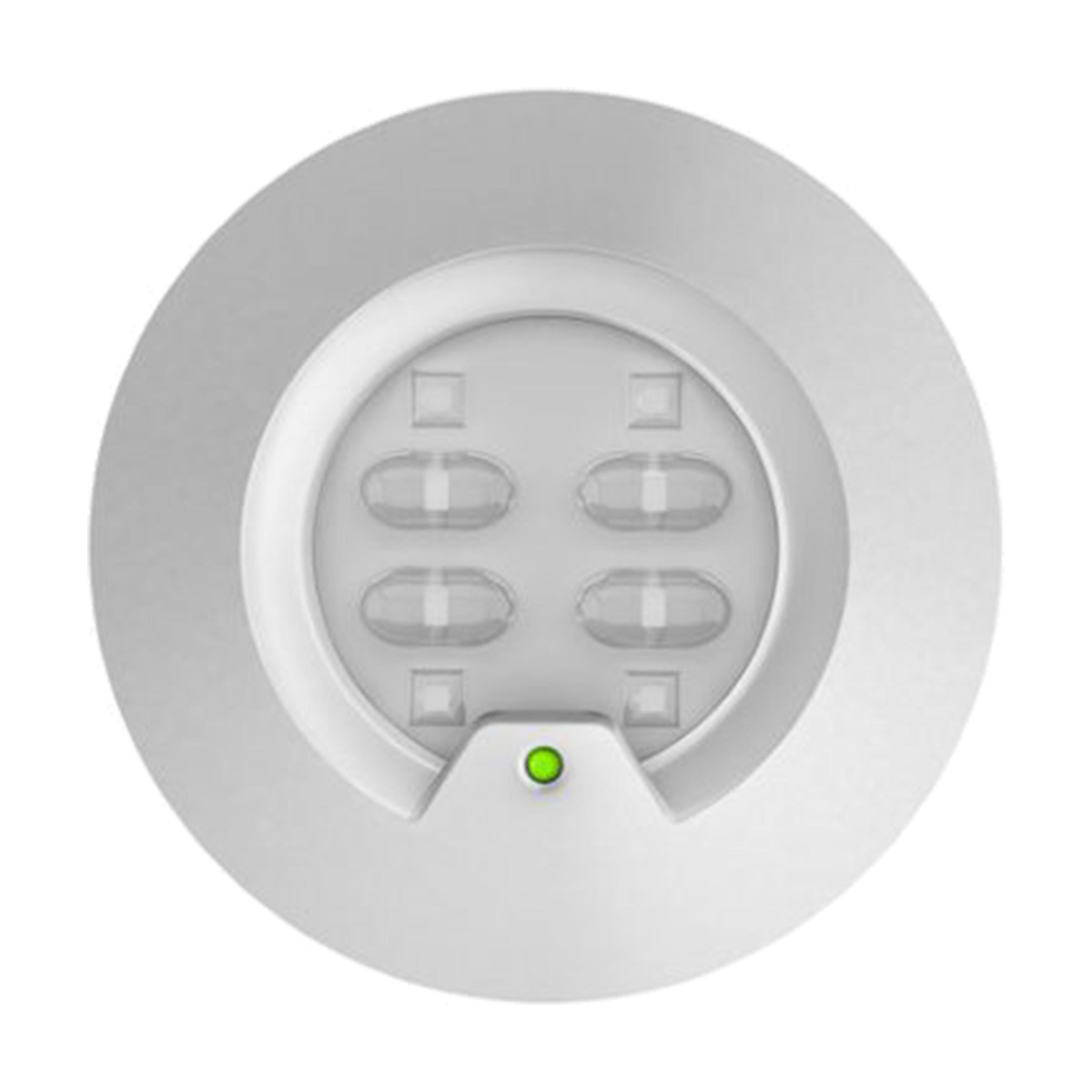

RTECH MR SEO STF 200 MNM 1H IP65
Emergency
RTECH MR SEO STF 200 MNM 1H IP65
Manufacturer Ref:
RT2RSEO200STF1HIP
Nortécnica Ref:
EAN:
3660191812386
Description
Technical Information
Attributes
Mounting method
Surface mounting/recessed mounting
EF000004
II
Width
195
Outer diameter
110
Function
Escape route lighting
Lamp holder
None
Conductor cross section
2.5
Connection type
Screw connection
Housing colour
White
Voltage type
AC
EF000233
EV009693
Type of control gear
-
With remote control
No
Built-in width
110
Built-in diameter
64
Suitable for labelling type
-
Type of indicator
-
Number of poles
3
Length
220
Heightdepth
58
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
1
Built-in length
200
Material cover
Plastic, transparent
Impact strength
IK05
Battery technology
Lithium-ion
Nominal voltage
230
230
Degree of protection IP
IP65
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Suitable for number of light sources
2
With remote switch connection
Yes
EF008091
EV000494
Recognition distance
-
Nominal current
-
Colour temperature
5700
5700
Max. system power
1.1
EF009349
200
Constant light output CLO
No
With pictogram
No
Type of wiring
-
Rated lifetime L70B50 at 25 C
-
Luminous flux in standby mode
60
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-
Light distributor
Focal lens
RAL-number housing
-
Nominal operation time
1
1
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
No
Suitable for continuous circuit
No
Built-in heightdepth
200
Power factor
0.6
