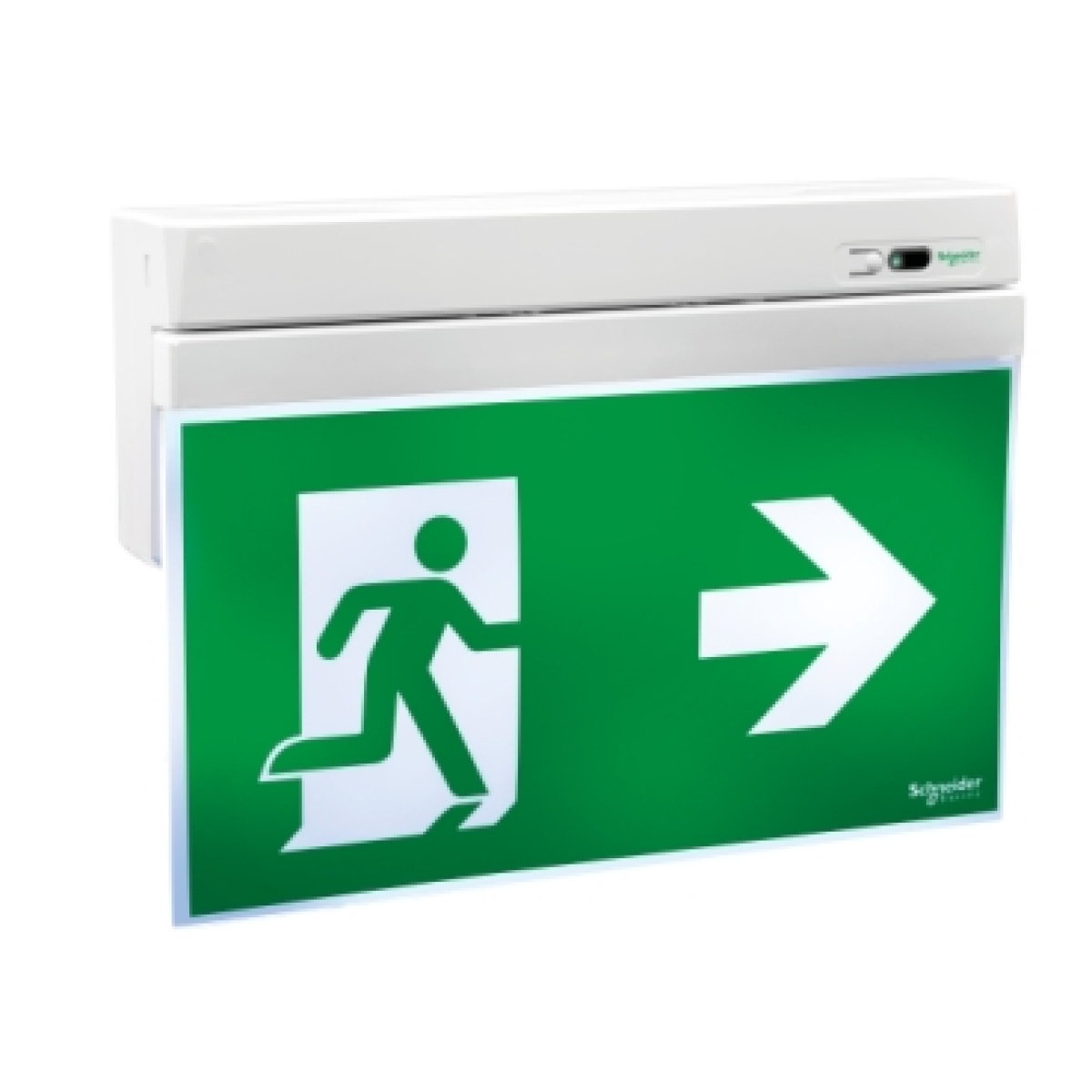

Sinalética Saída SmartExit Control, 230CA-216CC, IP40 MNM, 3h, 32m
Emergency
Sinalética Saída SmartExit Control, 230CA-216CC, IP40 MNM, 3h, 32m
Manufacturer Ref:
OVA46024
Nortécnica Ref:
EAN:
3606489729929
Description
Technical Information
Attributes
Mounting method
Wall surface mounting/ceiling surface mounting
EF000004
II
Width
230
Outer diameter
-
Function
Escape route lighting/signage
Lamp holder
None
Conductor cross section
2.5
Connection type
Plug-in connection
Housing colour
White
Voltage type
AC/DC
EF000233
EV010184
Type of control gear
LED operating device current-controlled
With remote control
Yes
Built-in width
-
Built-in diameter
-
Suitable for labelling type
Acrylic plate
Type of indicator
Single/double-sided
Number of poles
2
Length
340
Heightdepth
45
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
-
Built-in length
-
Material cover
Plastic, opal
Impact strength
IK04
Battery technology
-
Nominal voltage
230
230
Degree of protection IP
IP40
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Suitable for number of light sources
1
With remote switch connection
Yes
EF008091
EV009635
Recognition distance
32
Nominal current
-
-
Colour temperature
4750
5250
Max. system power
2.8
EF009349
40
Constant light output CLO
No
With pictogram
Yes
Type of wiring
Suitable for loop-through wiring
Rated lifetime L70B50 at 25 C
100000
Luminous flux in standby mode
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-5
30
Light distributor
Diffuser lens/optic/panel
RAL-number housing
-
Nominal operation time
-
-
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
Yes
Suitable for continuous circuit
Yes
Built-in heightdepth
-
Power factor
-
Brands
Schneider
