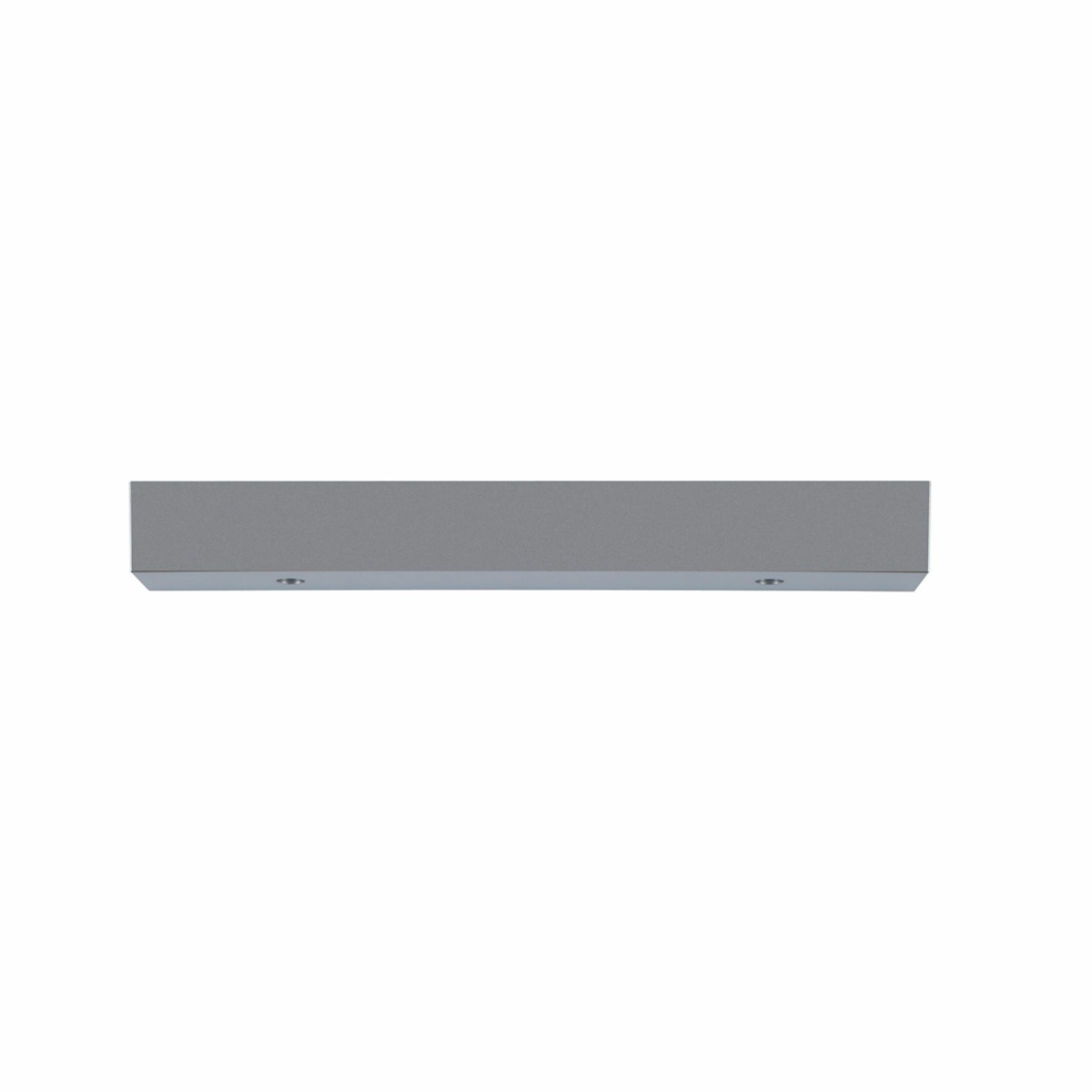

surface mounting kit, SpiritLED 28
Emergency
surface mounting kit, SpiritLED 28
Manufacturer Ref:
40071352005
Nortécnica Ref:
EAN:
4012539316411
Description
Technical Information
Attributes
Mounting method
Ceiling surface mounting
EF000004
I
Width
45
Outer diameter
-
Function
Escape route signage
Lamp holder
None
Conductor cross section
2.5
Connection type
Plug-in connection
Housing colour
Grey
Voltage type
DC
EF000233
EV010184
Type of control gear
LED operating device voltage-controlled
With remote control
No
Built-in width
-
Built-in diameter
-
Suitable for labelling type
Acrylic plate
Type of indicator
Single/double-sided
Number of poles
2
Length
330
Heightdepth
38
Housing material
Plastic
Lamp type
-
Number of lighting heads
-
Built-in length
-
Material cover
Without cover
Impact strength
IK03
Battery technology
-
Nominal voltage
220
220
Degree of protection IP
IP41
With light source
No
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Suitable for number of light sources
-
With remote switch connection
No
EF008091
EV010144
Recognition distance
-
Nominal current
-
Colour temperature
-
Max. system power
3.7
EF009349
-
Constant light output CLO
No
With pictogram
No
Type of wiring
Ending
Rated lifetime L70B50 at 25 C
-
Luminous flux in standby mode
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-10
40
Light distributor
-
RAL-number housing
-
Nominal operation time
-
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
A
Suitable for standby switching
No
Suitable for continuous circuit
No
Built-in heightdepth
-
Power factor
0.6
